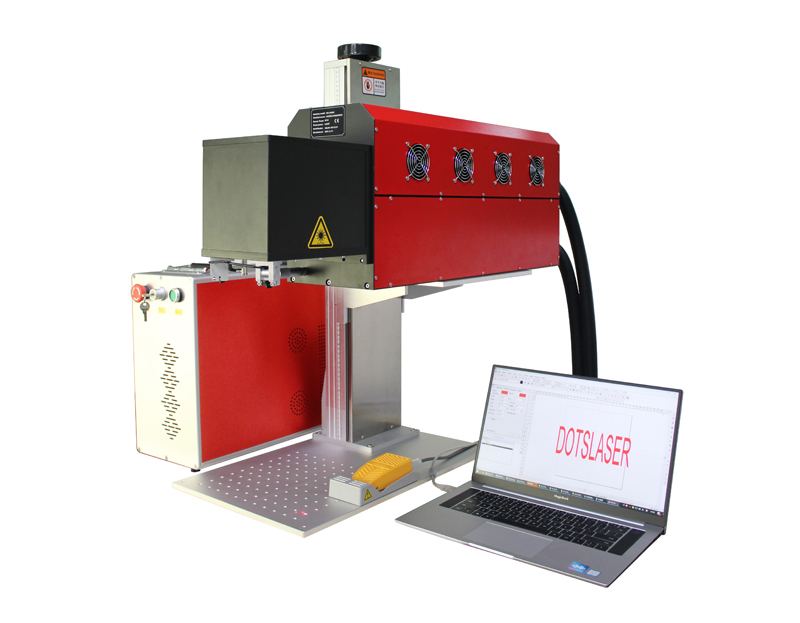

3D CO2 laser engraving machine
DS-LMC 3DCO2 laser marking machine output laser beam to make permanent marks on the surface of various materials. The effect of marking is to expose deep material through the evaporation of surface material, thereby engraving exquisite patterns, trademarks, dates, LOGO or text. At present, CO2 laser marking machines are mainly used in some occasions that require finer and higher precision.
Introduction:
DS-LMC 3DCO2 laser marking machine output laser beam to make permanent marks on the surface of various materials. The effect of marking is to expose deep material through the evaporation of surface material, thereby engraving exquisite patterns, trademarks, dates, LOGO or text. At present, CO2 laser marking machines are mainly used in some occasions that require finer and higher precision.
Paramters
Model | DS-3DCO2 |
Laser power | 60W |
Laser wavelength | 10640nm |
Working size | 400x400mm(Maximum) |
Engraving thickness | 1~2mm paper,leather ,Pu ,wood etc (Depends on the material ) |
Engraving max speed | 8000mm/s |
Engraving accuracy | ±0.003mm |
Machine weight | 110kg |
Size | 150X65X55cm |
Cooling mode | Water-cooled/air cooling |
Power consumption | ≤5KW |
Rated power voltage | 220V 50-60Hz |
Supported format | PLT.DXF.DWG.AI |
Warranty | One year |
Advantages:
Suit for engraving irregular objects,such as round,conic,concave,convex surface.
3D marking ,relief engraving
High precision
High performance,all in one ,protable type
Faster engraving speed
Large working area
High photoelectric conversion efficiency
Smaller beam spot size
Long lifetime
No consumable parts
Support formats: PLT, DXF, BMP, JPG, and so on.
Rich extensions:rotation,conveyor,xy table,motorized up/down, auto focus,etc.

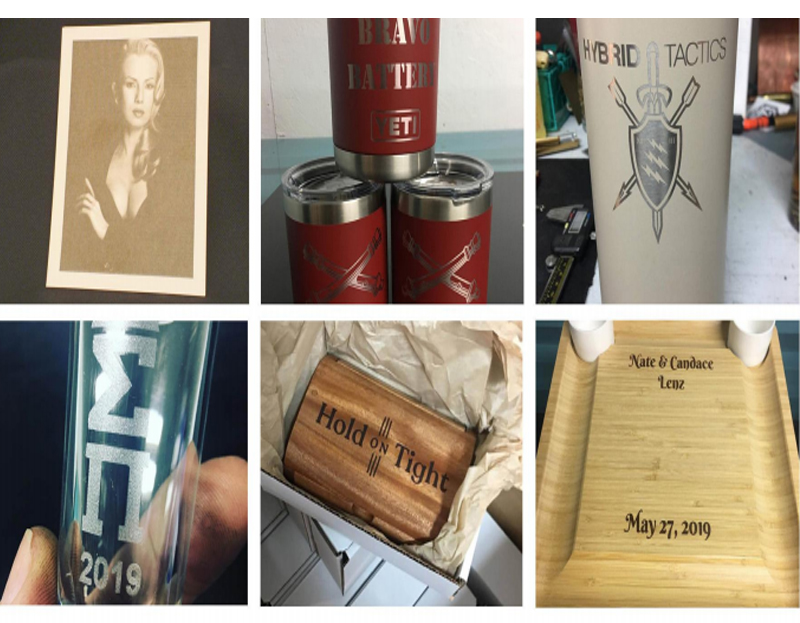

Samples
