CO2 laser engraving textile and cloths

CO2 laser engravers mainly use for nonmetal materials like leather,textile,film,wood,arcylic,bamboo,board,paper,plastic,stones,ABC,PVC,PC,and so on. It usuallys use in gifts,advertising, decorations,toys,electronic appliances,medicine,food packaging,automobile and other industries.


Product Details

Video shows:


Machine features:

1. Long lifetime: The service life time can reach up to 20,000 hours.

2. Portable: All-in-one machine,saving space,easy to move and use.

3. Excellent beam quality: High photoelectric conversion efficiency, good performance and can be competent at fine processing.

4. Permanent marking: Marking effect won't fade even in a harsh environmet(lower/overheat temperature ,under sour condition)


Machine parameter

NO.

Name

CO2 laser marking machine

1

Machine model

DS-LM60

2

Rated output power

55W/80W

3

Laser wavelength

10640 nm

4

Laser level

Class 4

5

Repeat accuracy

±0.01mm

6

Min.line width

0.1mm

7

Min.character size

0.5mm

8

Max marking speed

8000mm/s

9

Working area

100x100mm(standard)/200x200mm/300x300mm

10

Cooling

Air cooled

11

Working environment temperature range

5~35 ℃

12

Humidity range of working environment

< 70% No condensation

13

working voltage

220V,50/60Hz





Can a laser machine cut/engrave on cloths?

Yes, CO2 machine can engrave/cut on cloths.

▲ A CO2 laser wavelength (10.6 microns) is well absorbed by most organic materials especially fabric. In fact, by adjusting the laser power and speed settings you can manipulate how you want the laser beam to interact with each material to achieve that unique effect you're looking for. No doubt there is a lot of room for creativity between laser marking and completely laser cutting fabric. You can laser mark a subtle, intricate design onto a pair of denim jeans or cut various, random design details throughout. When done right, it gives you the ability to enhance the finished products perceived value.

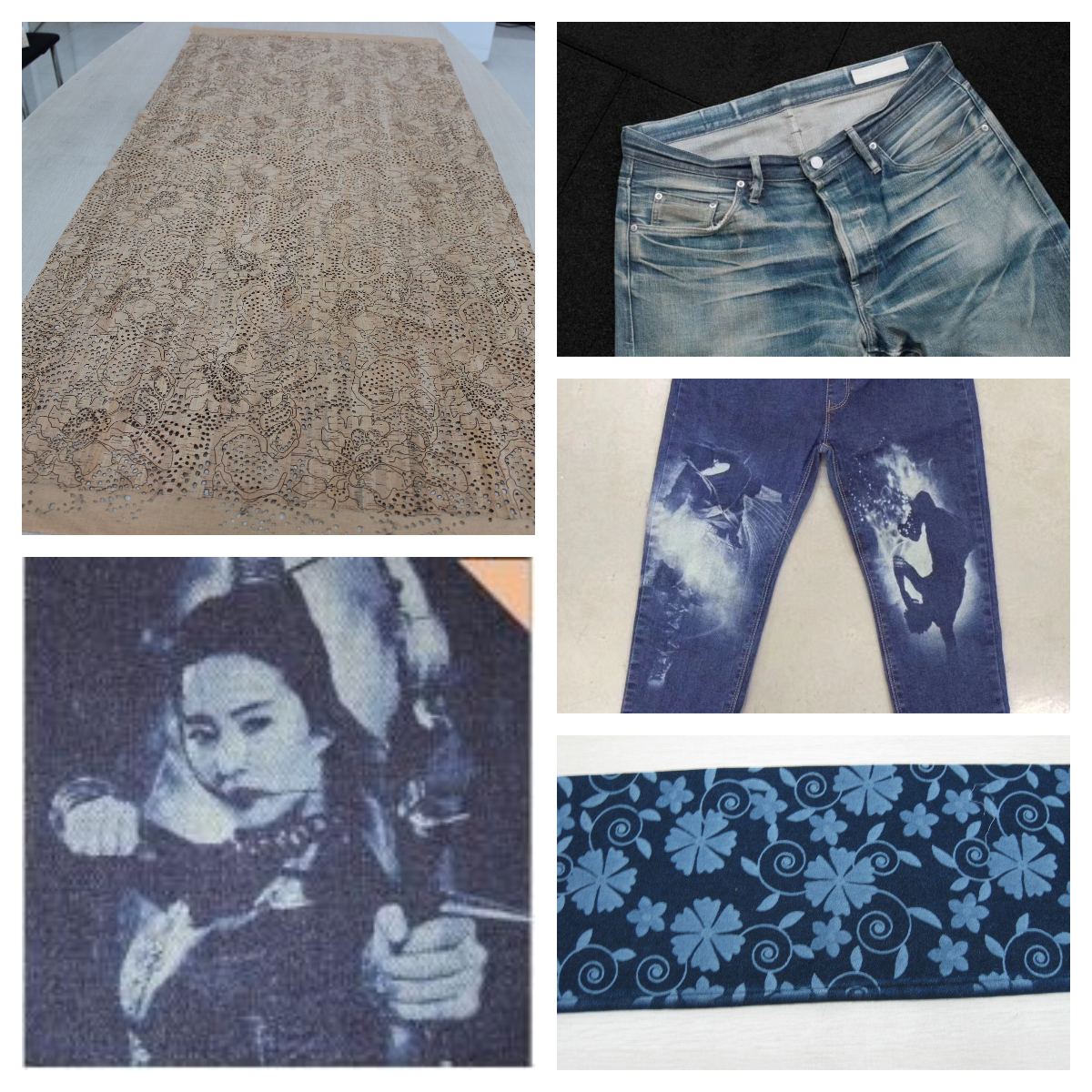

Samples:

CO2 laser engraving textile samples


How's the process of laser engraving cloths?

  • Power and Speed: Adjusting the correct power,pre-test is essential,begin with lower power settings, gradually increasing to find the sweet spot. Higher speeds can prevent scorching.



  • Choose favorite images: Before engraving, upload images to the software,opt for higher resolutions to capture intricate details, especially for complex designs.



  • Focus: Adjust the focus according to fabric thickness for optimal engraving depth.



  • Ventilation: Ensure proper ventilation to dissipate any fumes generated during the engraving process.



What fabrice can a CO2 laser machine engrave?

  • Cotton fabric

    ▼Polyester or synthetic fibers

    ▼Denim or Jeans

    ▼Canvas

    ▼Fleece

    ▼Felt

    ▼Kevlar

    ▼Lace

    ▼Leather

    ▼Linen

    ▼Nylon fabric

    ▼Suede

    ▼Silk fabric

    ▼Wool

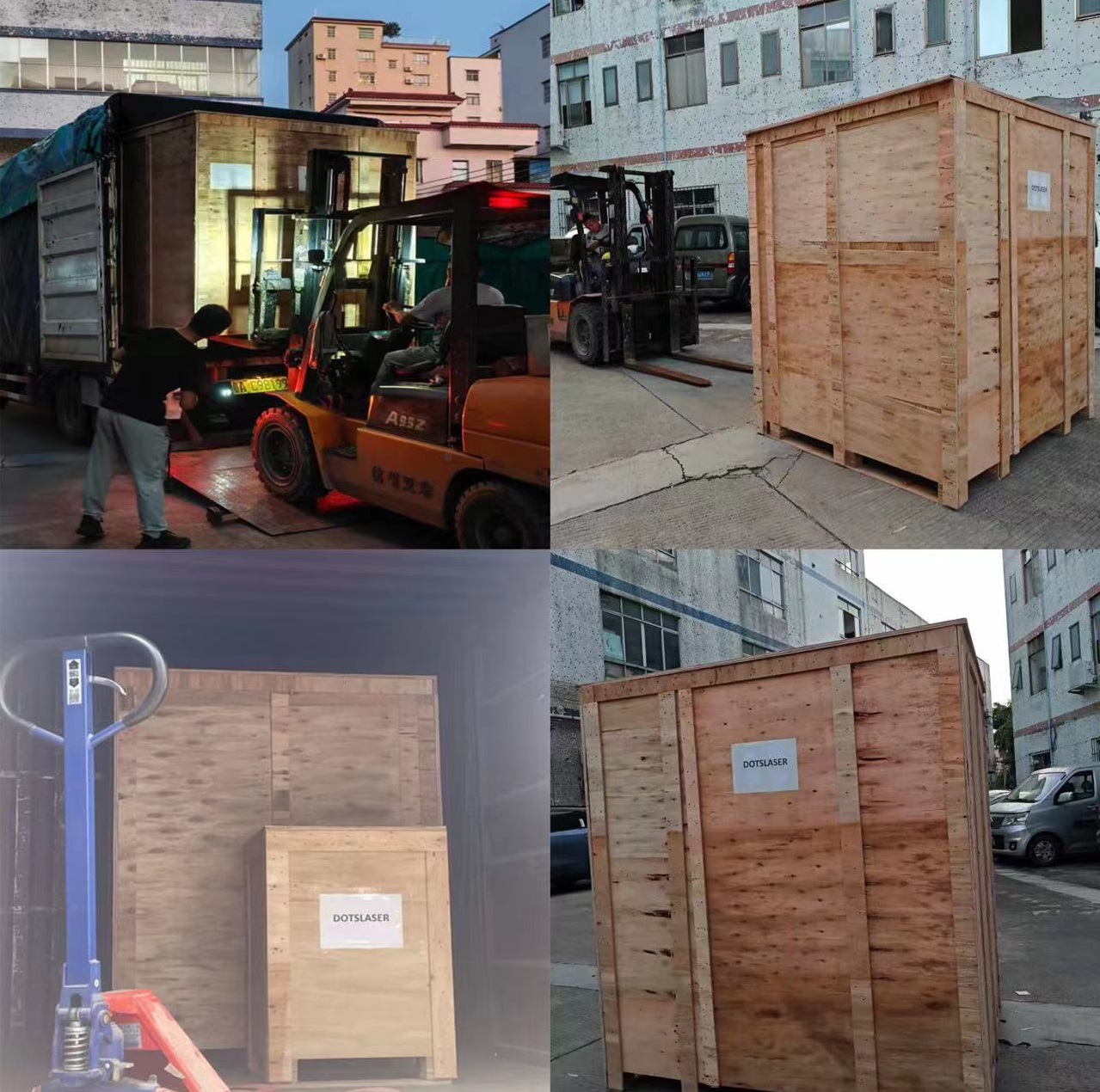

Shipment and package

CO2 laser engraving textile machine package


Certificate

Machine quality ensure certificate

FAQ

Q1: How does the package?

A: Dotslaser provides 3 layers package. For the outside, we adopt wood craft case. In the middle.the machine is covered by foam,

to protect the machine from shaking. For the inside laser machine, the machine is covered by thickening plastic bag for waterproof.


Q2: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and ourshipping agent have full experienced in safe transportation.

We have exported to 100 countries worldwide. So please don't worry, you will receive the parcel in good condition.


Q3: How to install and run the machine?

A:Our worker will install all the machine before shipping. For some small parts installation, we will send detail training video,

user's manual along with the machine 95% customers can learn by themselves.


Q4: How can i do if the machine goes wrong?

A: lf confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else.

 We will response within 24 hours as quick as we can to solve it for you.
