Customized Gift CO2 Laser Engraver

Using CO2 laser machine to design unique gifts for your friends or families, customized gifts has a large market, many people perfer custimized because they like this kinds of meaningful gifts.CO2 has satble laser power and fast engrave speed, creat beautiful gift with high quality and fast speed.

Product Details
Video shows:


01/Personalization

The biggest advantage is that this machine offers customers personalize gift by themselves. You can engrave a name, a special message, or a design on the gift. This makes the gift more special and unique, and it shows your feelings into it.


02/High precision

CO2 laser engravers are known for their high marking precision,this kind of machine can engrave fine details and intricate designs with ease. And it is especially for engraving jewelry, keychains, and pens.


03/Versatility

CO2 laser engravers can engrave on a wide range of materials, including wood, acrylic, leather, metal, glass, and more. This makes them ideal for creating a variety of gifts, from personalized photo frames to engraved glasses and mugs.


04/Cost-effective

CO2 laser engravers are a cost-effective way to create customized gifts. They are relatively inexpensive to operate, and they can be used to create a wide range of gifts, from small items to large ones.


Parameter

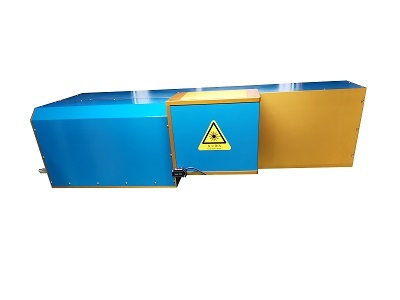

Laser tube

parameters

Max Output Capacity250W
Nominal Peak Powe≥450W
Mode QualityM2≤1.2
Duty Cycle Limit≤70%
Laser TypeCO2
Laser Wavelength10.6μm

Marking

performance

Marking Format

Pattern,Word,Bar code,QRcode,Date,Serial Number

Marking Character TypesPattern and words of vectordiagram & bitmap
Marking Area400X400-700X700(mmXmm) Adjustable
Marking Depth0-5mm (According to the materials)
Marking Speed<7000mm/s
Min Line Width0.3mm(According to the materials)
Min Character0.4mm
Repeat Positioning Accuracy0.01mm
Machine informationTotal Power<6KW
Power SupplyAC220V/50Hz/30A
Cooling WayConstant temperature water cooling unit
Working Temperature15-30℃
Working Humidity<75 No condensation
Working EnvironmentWithout dust, without vibration
Machine Packing Size1010*1340*1740mm
Control cabinet packing size1060*660*1100mm
Chiller packing size660*760*1080mm
Applicable Industries:

Three Axis Dynamic CO2 Laser Marking Machine is widely suitable for the industries, such as Heat Transfer film (Paillette, TPU materials, Reflective transfer film, etc.), leather, wooden box, paper card, clothes denim, illuminator,Mobile communications, mould, precision machinery, IT Digital shell, Military aviation components, handicrafts, Advertisement decoration, etc.

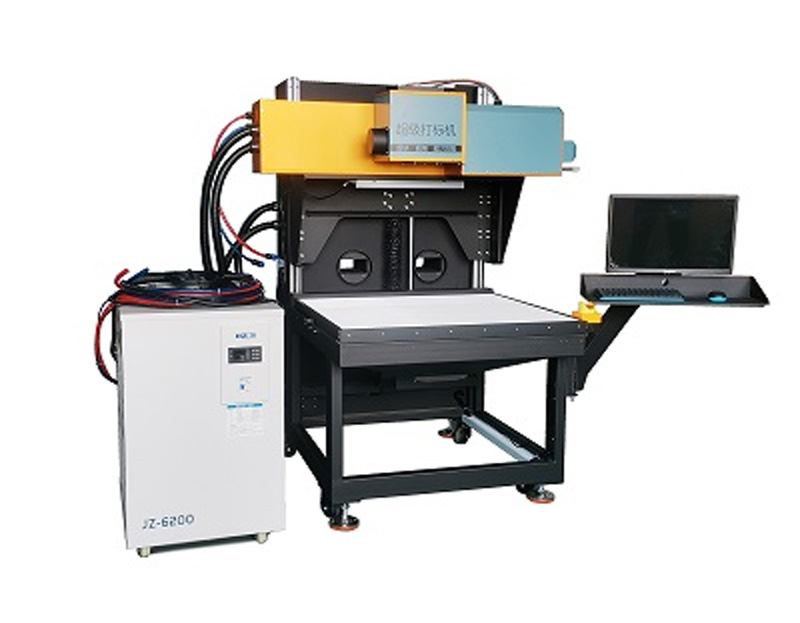

CO2 Laser marking machine -Dotslaser

Customized gift samples



Shipment and package



UNPACKING CAUTION:

Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.

● Whether there is damage or deformation during transport.

● Confirm that all of the items on the packing list are correct.

● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).

● Make sure that all clamps are tight and that there are no foreign objects in the device.

● Confirm the operation buttons, switches are normal.
