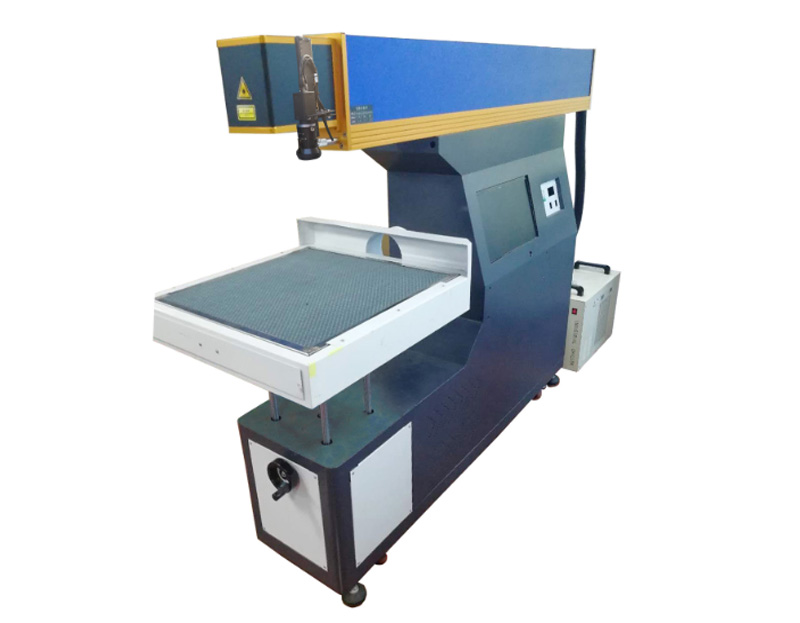

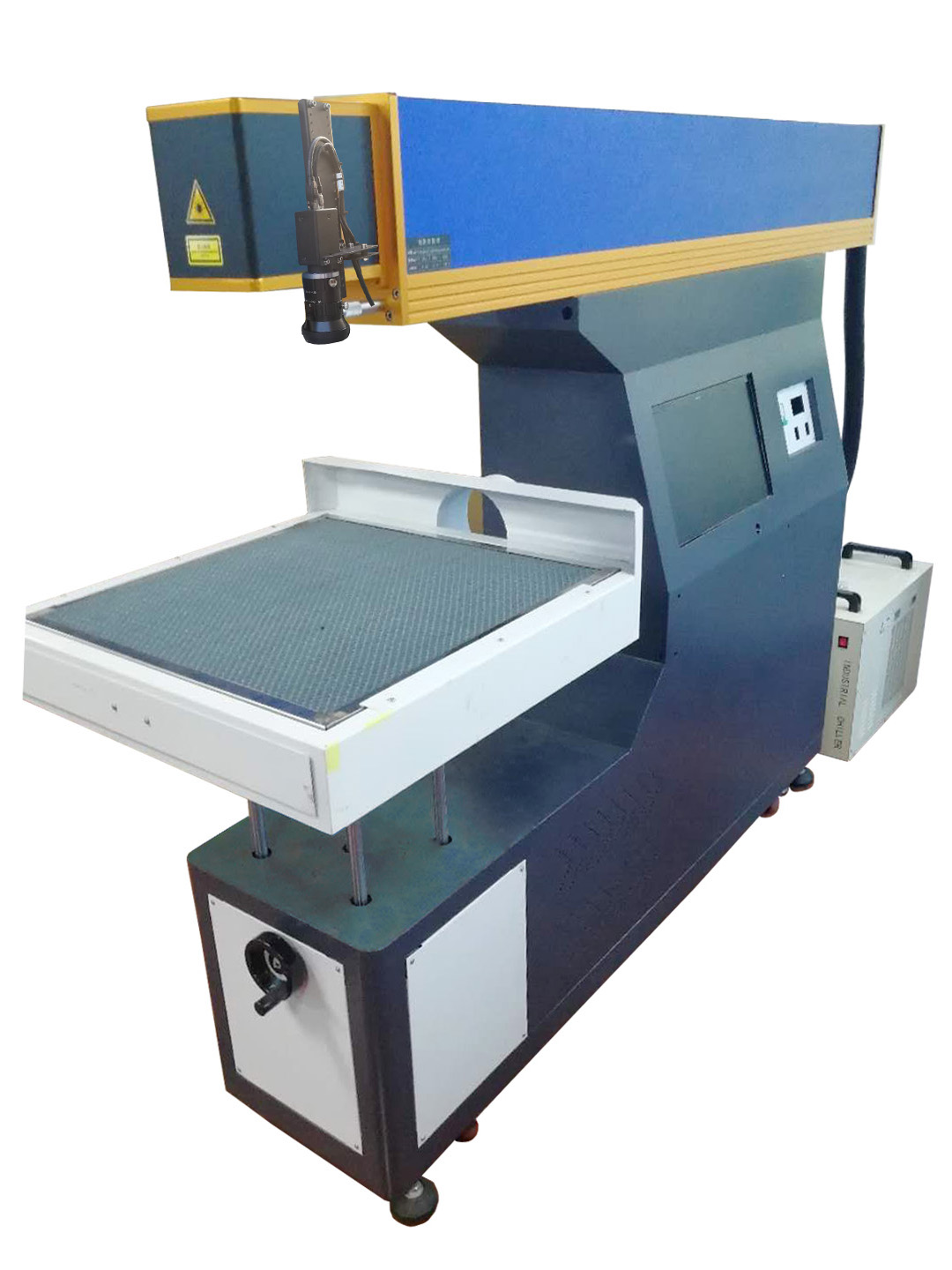

Dynamic tube laser jeans marking
CO2 tube laser marker can engrave non metal materials like jeans, leather, plastic, wood,acrylic, paper. The non metallic laser marking machine made by our company has good beam mode, stable system performance, fast engraving and cutting speed, large format working area is suitable for big projects, convenient for mass production, increase productivity and save labor cost.
Video shows:
Machine's featuers:
1. Large working area
Maximum 800x800mm,suit for processing big objects, convenient for mass production, increase productivity.
2. Reasonable design
With 1P high power large cooling capacity top brand water chiller, compact machine size, perfect sealing, equipped with large drawer with waste collection, international standard wiring, large solid and durable workbench, stronger sheet metal,no deformation after long time use,all in one integrated structure,easy to move and less space occupied.
3. Power accessories

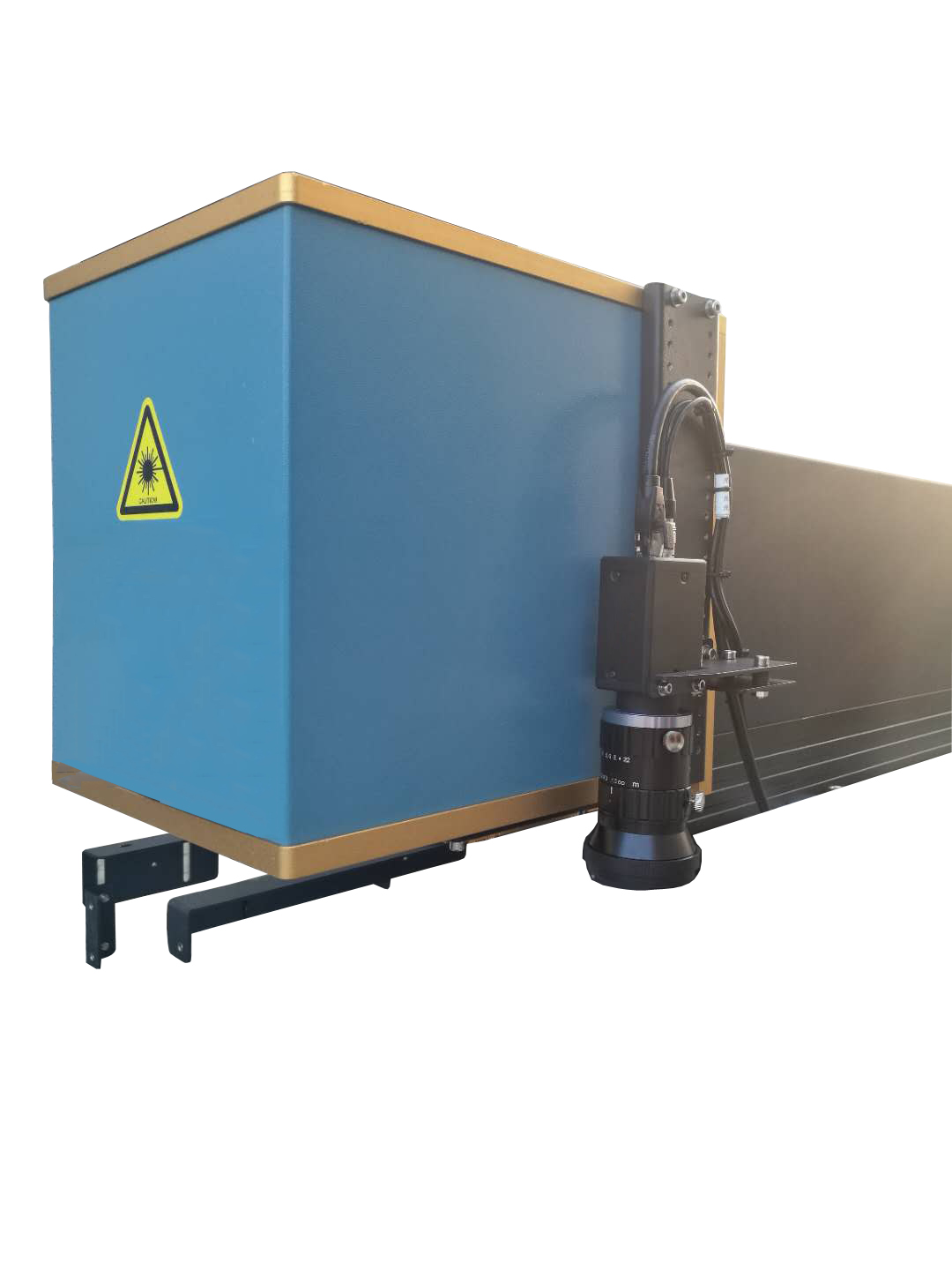

Super galvo--big motor and lens,better beam diameter, stable performance, touching screen, easy to use, the imported high-speed servo motor scanning galvanometer and field lens provide reliable guarantee for long-term continuous high-speed and stable operation of the equipment.
4. Small power consumption
Power consumption is reduces by 5%-10% as compared to traditional model, fast marking speed,3-10x faster than traditional system, energy conversion rate is about 95%, no consumables, reduce cost.
Parameter
NO. | Name | CO2 Glass tube galvo laser |
1 | Machine model | DS-LMC100 |
2 | Rated laser power | 90-100W |
3 | Laser wavelength | 10640nm |
4 | Laser source | RECI CO2 tube |
5 | Repeat accuracy | ±0.01mm |
6 | Min.character size | 2mm(300x300mm) |
7 | Max marking speed | 8000mm/s |
8 | Working area | 300x300mm-600x600mm |
9 | Cooling
| Water cooled |
10 | Working environment temperature range | 5-35° |
11 | Humidity range of working environment | ＜70% no condensation |
12 | Working voltage | 220V, 50/60HZ |
13 | Laser level | Class 4 |
14 | Support format | PLT, BMP, DXF, JPG, TIF, AI etc. |
15 | Interface | USB |
16 | Software
| Ezcad |
Application:
Laser markings on capacitance, inductance, printed-circuit board, integrated circuit, instrument and control panel Daily supplies and clothing industry: button, cosmetics package, food package, tobacco and alcohol, stationery, artwork PVC, ABS material, acrylic, epoxy resin EP, leather, wood, stone, marble unsaturated poyester etc.
Origins of “Jeans” & “Denim”
1. Where does the word “jeans” come from?
Jeans date back to 1567 with the introduction of the word “genoese” or “genes” to describe the tough twill trousers worn by merchant sailors from the Italian coastal city of Genoa.
2. Where does the word “denim” come from?
Denim dates back to the 17th century. Created in Nîmes, France, serge de Nîmes was a cotton twill cloth made of wool and silk. It later became known simply as “denim.”
Samples
CO2 laser applies to the jeans and textile industries
Denim marking requires stable laser beam, suitable laser power, correct engraving depth and size, CO2 tube laser machine can meet the above requirements, Dotslaser CO2 machine has super galvo big motor and lens with better beam diameter. Reliable laser source ensure stable engraing, design with stronger metal sheet, no deformation after long time use, no damage to the textile products. It has high quality, round, symmetrical beam for high processing speeds and a short optical pulse with high peak power. This ensures optimum process quality and minimizes the heat-affected zone.
Package and shipment
Warranty and After-Sale
a. Warranty
One year for complete system,such as galvo head,lens,control board,power supply. consumable parts are not in warranty,such as keyboard and mouse. DOTSLASER promises to maintain products which are produced and sent according to a formal contract,and guarantees every repaired machine will function good if used properly. DOTSLASER has the rights to repair or replace a product in warranty period if it has a material or technical problem. We will charge for the maintenance under normal circumstances. It will be free if the machine has special problems.
b. Warranty Scope
DOTSLASER will not provide free warranty service in following cases:product or parts are damaged because of modification ,dismantlement ,improvement without permission ;product or parts are damaged because of emergency or negligence;product or parts are damaged because of lack of preservation ……customers have the responsibility to learn the directions on the user guide and operate the machine properly. Damages resulted in abnormal operation will not get warranty services. Accessories are not in warranty. Customers should make a written request in 30days as soon as they found a problem which is in the warranty range , no third party should be involved in the maintain process and products or part that are not produced by DOTSLASER should also not be included.
After sales
Contact with DOTSLASER's engineer whatever problems occur when using,and make a trouble shooting under engineer’s direction. All products waiting for repair or replacement should be placed in cases DOTSLASER provides,otherwise DOTSLASER will charge for the damage it may cause. When customers receive DOTSLASER's products, please check if the product is damaged and whether accessories is complete or not. DOTSLASER keeps on developing new products, information and parameters in this file may change. All technical parameters are subject to the contract. Warranty and after-sale clauses above are for reference only ,and are subject to the formal contrast.
