Shoe insole laser marking

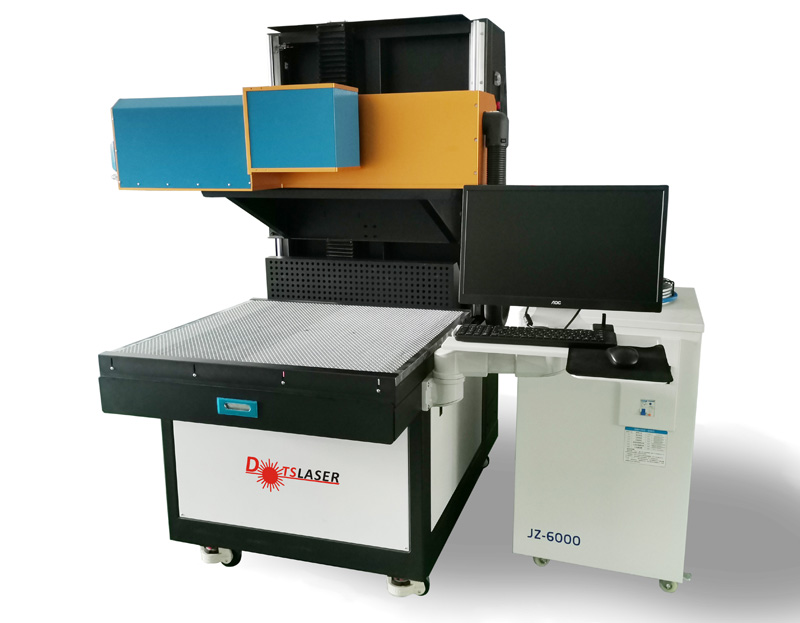

DOTSLASER CO2 laser marking machine with high techniques like high speed galvo scanner, powerful laser source, laege aluminum worktable, imported dynamic focus system, USA standards core optical lens, coherant CO2 laser tube, if you find a reliable CO2 laser marker,this is a best choice for you!

Product Details

Video shows:


Machine's features

1.Wide working area

 The three dimension focus system make the machine has bigger working area and finer optical spot diameter.The maximum marking area of the customized system can reach 2m x 2m.

2. Higher techniques

It has smaller focusing spot and higher energy density which are suitable for finer cutting, punching and engraving.

3. Easy to use

The Fully closed free-maintenance laser optical system is ready to use after  installation without adjustment.

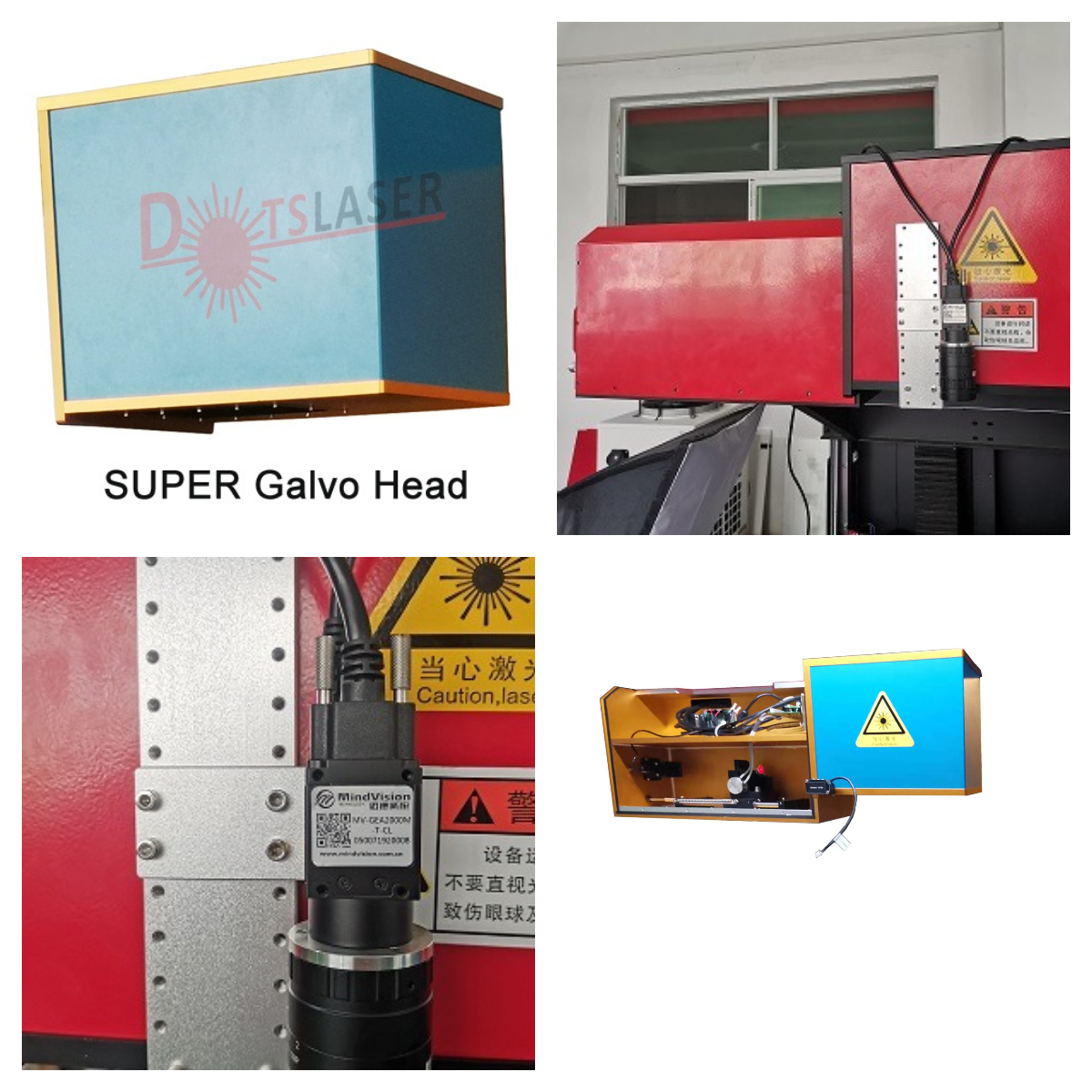

Machine's details

CO2 laser machine's details

Parameter

Laser tube

parameters

Max Output Capacity250W
Nominal Peak Powe≥450W
Mode QualityM2≤1.2
Duty Cycle Limit≤70%
Laser TypeCO2
Laser Wavelength10.6μm

Marking

performance

Marking Format

Pattern,Word,Bar code,QRcode,Date,Serial Number

Marking Character TypesPattern and words of vectordiagram & bitmap
Marking Area400X400-700X700(mmXmm) Adjustable
Marking Depth0-5mm (According to the materials)
Marking Speed<7000mm/s
Min Line Width0.3mm(According to the materials)
Min Character0.4mm
Repeat Positioning Accuracy0.01mm
Machine informationTotal Power<6KW
Power SupplyAC220V/50Hz/30A
Cooling WayConstant temperature water cooling unit
Working Temperature15-30℃
Working Humidity<75 No condensation
Working EnvironmentWithout dust, without vibration
Machine Packing Size1010*1340*1740mm
Control cabinet packing size1060*660*1100mm
Chiller packing size660*760*1080mm


Applicable materials

CO2 laser marking machine is suitable for a variety of non-metallic materials, such as:

- Rubber: Commonly used in the soles of sports and casual shoes.

- Plastic: including TPU, TPR and other materials, suitable for different soles.

- Textile: Marking of fabric soles with branding.


What can a CO2 laser engraver do?

- Brand Logo: Put the brand LOGO or model information on the sole.

- Anti-counterfeiting mark: Add anti-counterfeiting elements to improve product safety.

- Functional labels: information such as size, material composition, etc.


Samples

Shipment and package

CO2 laser machines package

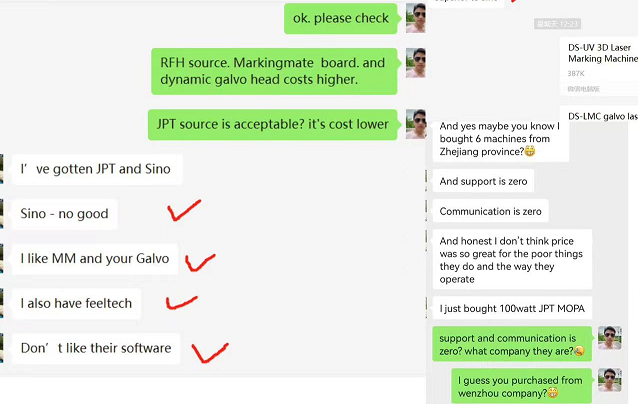

Customer's feedback

Shoe insole laser marking

Certificate

FAQ

Q: What kind of laser machine or model should i choose?

A: It depends on your processing materials,working area and detail requirements, you can send your products details pricture or video to us,then we will recommend best laser machine for you.


Q: What kind of materials does the laser machine can process?

A: We have different laser machine, fiber laser machine mainly use for metallic metails, CO2 laser machine mainly use in non-metallic materials, wood,paper,bamboo,rubber,glass and leather,etc,. UV laser machine mainly use for crystal, complex precision marking.


Q: Is this machine easy to operate?

A: First,we will send you manual guiding video help you to learn how to operate this machine, if you can not know how to use, we can chat in phone or video.


Q: What's your guarantee in case your machine breaks down?

A: We have 1 year warranty, if the problem is easy to handle, we can by "Teamvierwe" guide you how to solve the problems, if passed the warranty.
