2D fiber laser engrave bar code

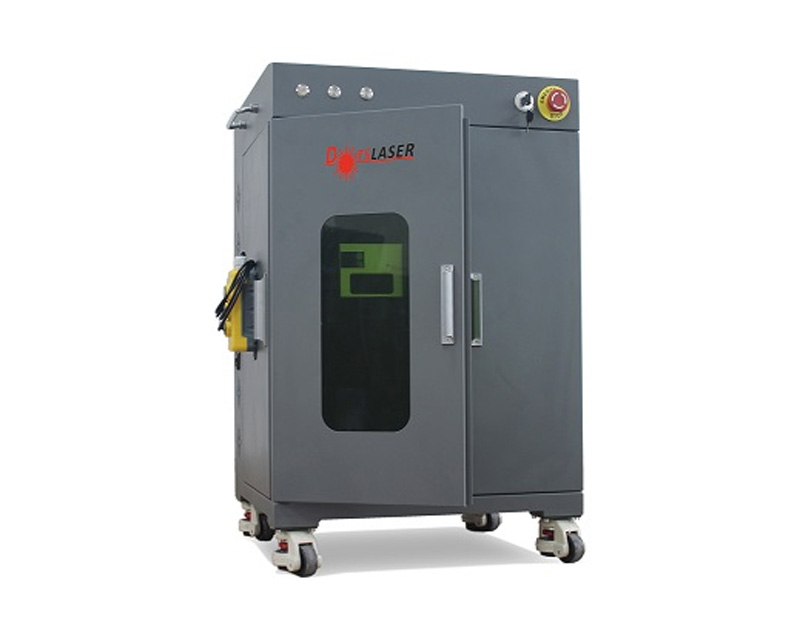

This mini fiber laser machine has unique design, easy to move with four roller casters, less space occupation, enclosed glass protective window in case laser beam harm to body's health, adopt great metal sheet and hard metal material ,it's different from in the common market, auto focusing fuction, convenient for workers to use,easy to learn.
Video shows:
Machine's features
1. Easy to operate

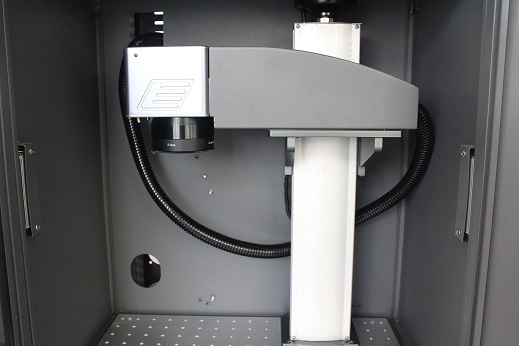

2D fiber laser engraver design with auto focus, easy to operate, movable casters makes work more convenient.
2. Compact size
Fully aluminum working plate with holes, less space occupied, unique design,cabinet using high quality metal sheet, durable and good looking.
3.High technique

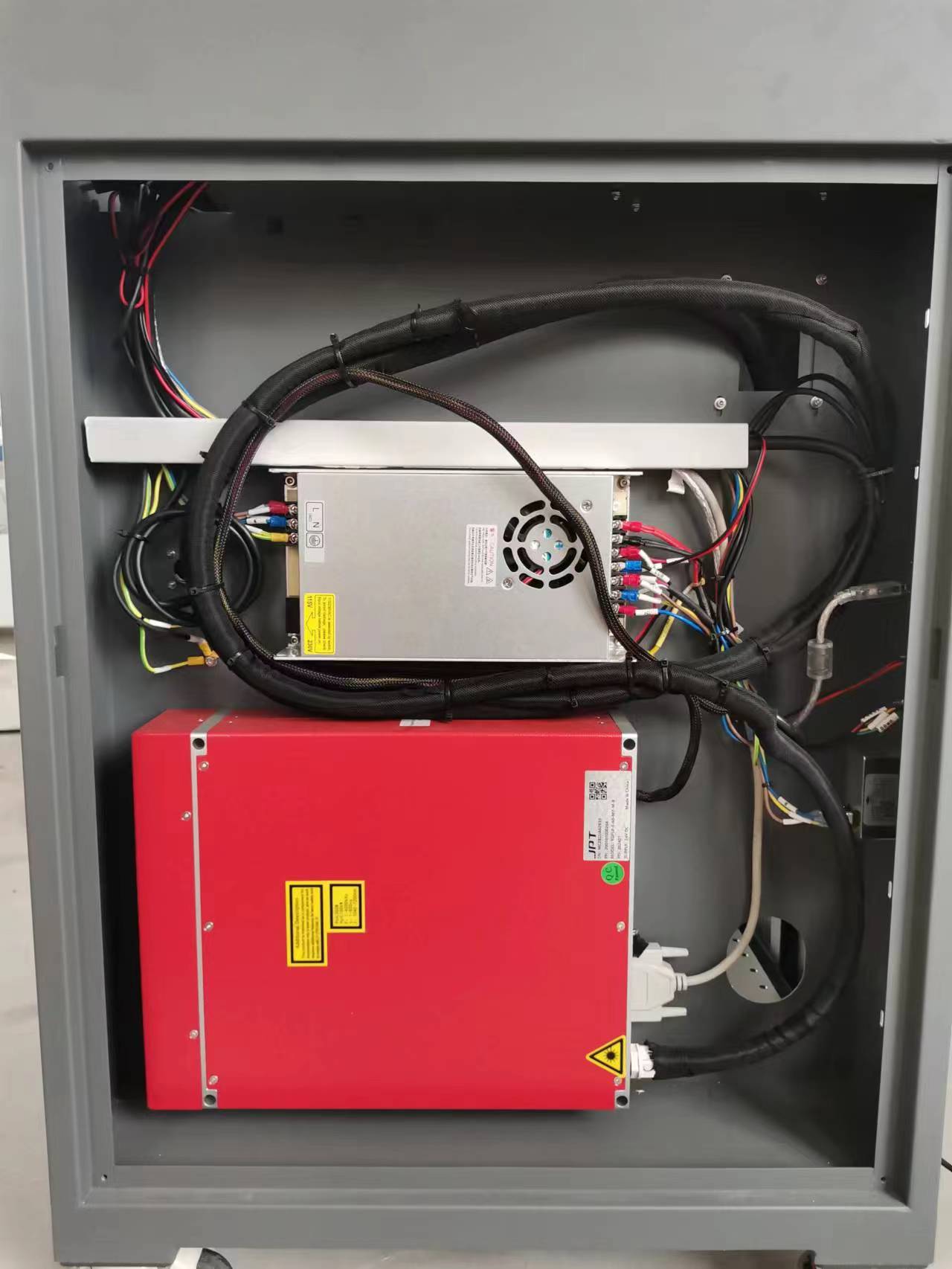

German technology and quality, first-class assembly standards. Integrated circuit design makes after-sales maintenance easier. Versatile choice, rotary,disk rotation,conveyor are optional.
Parameter
NO. | Model | DS-LM20 |
1 | Laser source | Fiber generator |
2 | Engraving depth | ≤0.2mm(depends on material) |
3 | laser wavelength | 1064±10 nm |
4 | Marking area(2D) | 100×100mm/150×150mm/200×200mm |
5 | Pulse frequency | 20~80KHZ/1~600KHZ/1~4000 |
6 | Max marking speed | 8,000mm/s |
7 | Repeat accuracy | ±0.001mm |
8 | Min.line width | 0.01mm |
9 | Min.character size | 0.2mm |
10 | Cooling | Air cooled |
11 | Working temp | 10~35 ℃ |
12 | Humidity range | < 70% No condensation |
13 | Power supply | AC220V±10%,50Hz or AC110V±10%,60Hz |
14 | beam quality | m2＜1.5 |
Types of Barcode:
Dimensional (1D) and –Dimensional (2D) are the types of Barcode.
▼1D Barcodes – This barcode is a series of lines utilized to save text information, like product types, size, and color. They are used on product packaging, to assist track packages. These are also known as UPC barcod.
▼2D Barcodes – This kind of barcodes are more complex and can include more details than just text, like price, quantity, and even an image. 2D barcodes can’t be read by linear barcode scanners, but smartphones and other image scanners can. These are known as QR code.
Business Benefits of Barcode:
●1. It gives better accuracy than manually entered data.
●2. Inventory levels or sales are immediately available in real-time.
●3. Low-cost implementation as generating barcodes is quick and easy.
●4. Improve inventory control.
●5. Reduce customer's time at billing counter.
●6. Tracing of product becomes easy.

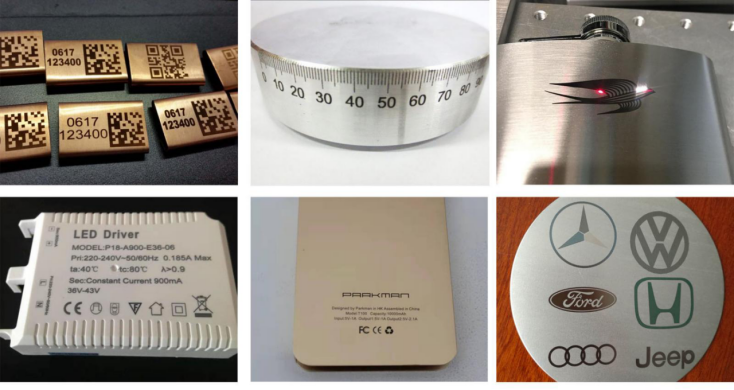

Samples
Shipment and package
Certificate
FAQ
Q1: Can i etch barcodes on laser items?
A: Yes, you can etch barcodes with laser, use how much power based on materials, the unique flying-optic beam delivery of our systems provides an exceptionally result.
Q2: Can your machine create a high quality mark?
A: With the ability to engrave up to 1200 dpi images, barcodes can be engraved even at the smallest dimensions.
Q3: Is your machine design for ease of use?
There is no proprietary software with our barcode etching system. Setup the job in the design program of your choice and print to the laser.
Q4: This laser machine can etch multiple types of barcodes?
A: You can easily engrave 2D, Data matrix, UPC, or any other type of barcode with a laser engraver from Dotslaser machine.
Q5: What is laser source?
The fiber laser laser source creates a laser beam with a 1064 nm wavelength – ideal for etching metal and marking plastic.
Q6: Can your machine engrave multiple parts at once?
Create a pattern into which you can place your parts and engrave hundreds of barcodes at one time. No dedicated operator is required.Save a lot of processing time.
