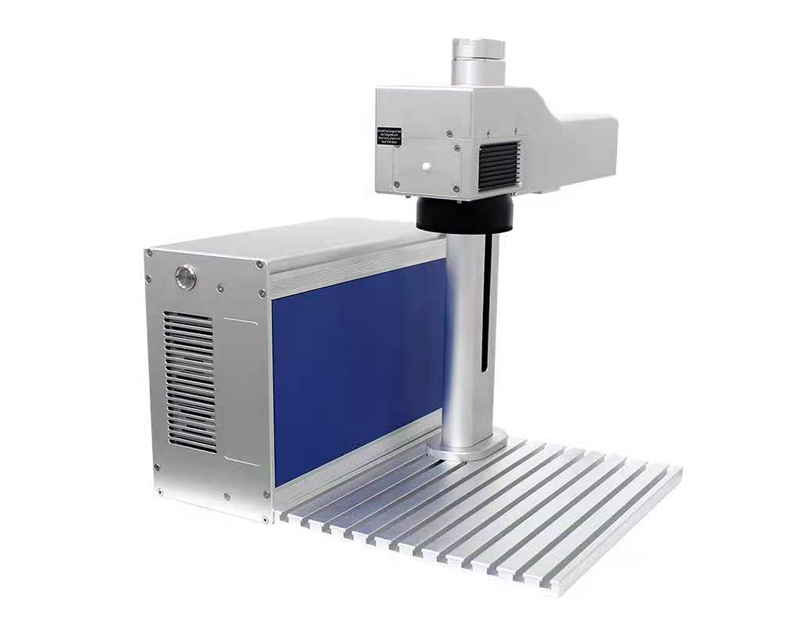

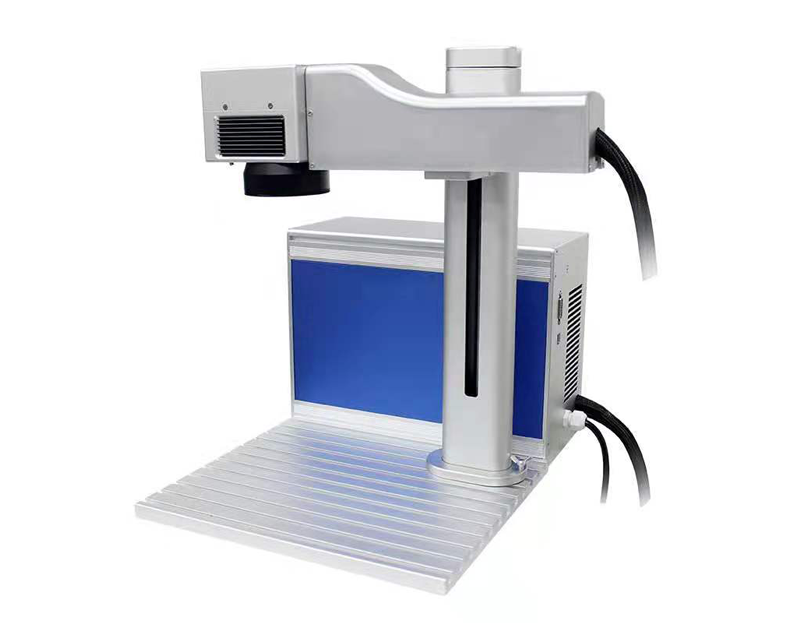

2D fiber laser engraver
The machine use a 1064nm wavelength fiber laser source, which is suitable for various metal materials such as iron, copper, aluminum, gold, silver and some non-metal materials such as PC,ABS,PVC, and PC+ABS. It is widely used in3C, auto parts,electronic components, integrated cirkuits(PC), electrical appliances, precision equipment, hardware products, building materials,and other industries. It helps save processing time and labor cost, increase productivity greatly!
Video shows:
Machine's features

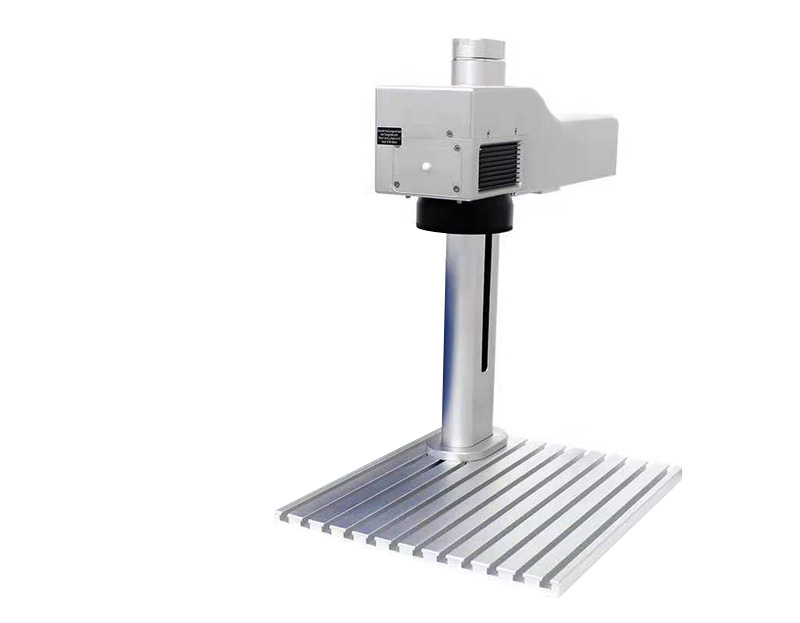

1.100% portable
a. The whole machine weight only about 20 KG, it's small, compact and light,it is very convenient to carry.
b. The column and beam path can be disassembled and packed at will, it's easy to install and easy to store.
c. The position of the column can be adjusted freely on the marking table, which can be flexible and changeable.
2.Cost-effective
Affordable and economical models with performance comparable to desktop computers and higher cost performance Integrated design, firm structure,stable performance, convenient after-salese desktop operation, small footprint,not limited by space.
3.High-quality light source
a. Using advanced fiber laser, the output beam quality is good, the reliability is high.
b. No consumables and maintenance-free, working life is about 100,000 hours.
c. It can be flexibly applied to metallic materials and some non-metallic materials.
Parameter
Laser source model
| Intelligent mini laser marking machine
| ||
Laser source model
| DS-LM20-E
| DS-LM30-E
| |
Laser parameters
| Laser source model
| MFP-20X/20QS
| MFP-30X/30QS
|
Output power | 18.5/20W | 30W | |
Beam quality M2
| ≤1.4 | ≤1.4 | |
Pulse repetition frequency
| 27-60 kHz
| 30-60 kHz
| |
Laser wavelength | 1064±5nm | ||
Output power stability | ＜3% | ||
Working life | About 100,000 working hours (non-lifetime)
| ||
Optical properties
| Marking range
| 100-150mm (range optional) | |
Engraving depth | ≤1mm (depending on power and time) | ||
Engraving speed | ≤10000mm/s | ||
Repeat accuracy | ±0.002 | ||
Minimum marking line width | 0.1mm | ||
Minimum character height | 0.15mm | ||
Use environment | Cooling way | Air | |
System power supply | 500W / 220V / 50Hz (110V can be connected)
| ||
Temperature humidity
| 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range
| ||
Oil mist, condensation
| Not allow | ||
Other parameters
| Support system
| Window operating system | |
Dimensions | 390X210X615 mm
| ||
Packing size
| 680X5500X270 mm
| ||
Total Weight | About 20kg | ||
Why laser marking machine is popular in the package market?
1. Laser marking is durable and resistant to corrosion or wear, high-contrast, high quality marking on outer package is very help to customers know products information easily, permanent marking effect food information keep long time and less wrong information, mass marking package production increase productivity greatly, ensures industry profits and standardizes working process, 24 hours marking saves lots of processing time and many labor cost, it's a good marking tool in the package industry.

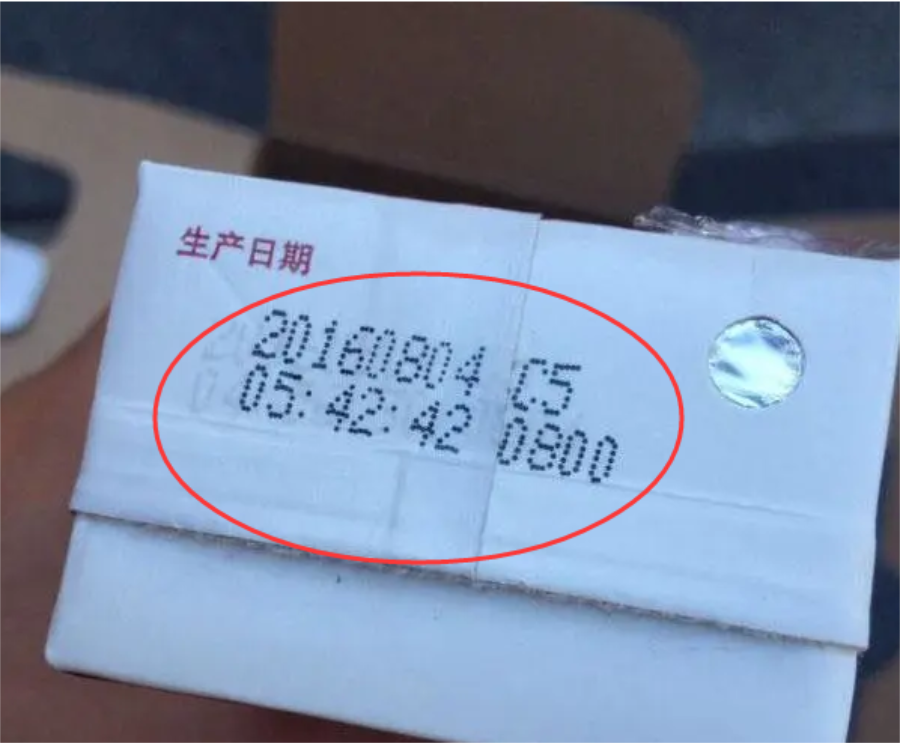

2. Laser marking enables the encoding of a large amount of information in a small and precise space. This is particularly useful for food traceability, as producers can mark unique codes on the packaging for tracing production batches, distribution channels, and other vital information when needed.
Main components

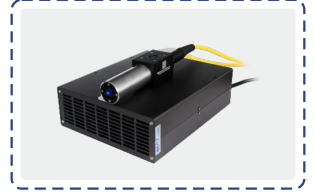

1. Advanced fiber laser source
Using high-quality light source, the spot quality is good, the optical power density is uniform, the output optical power is stable,it has the characteristics of no light leakage, anti-high reflection, etc., which meets the mainstream market application requirements.

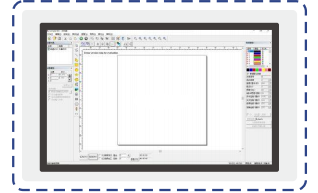

2. Powerful marking software
The control system is powerful, it can optimize a variety of data according to different processes and support multi-language one-key switching, it meets the application process requirements of most industries in the market .

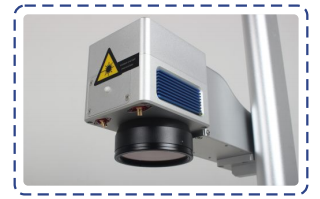

3. Double red light metal galvanometer
Metal body structure, built-in dual red light marking instructions, with the advantages of adjustment-free, maintenance-free, and high stability, it can be upgraded with high-speed digital scanning galvanometer.
4. Wide applications, good marking effect
Suitable for various metal materials such as iron, copper, aluminum, gold, silver, and some plastic materials, with clear markings and good marking effects.
Samples
Shipment and package
Certificate
