30W fiber laser electronic components
This is a modern technology society, it shows that electronics device has a large market, some devices need to attach parameter on it,so i recommend this 30W fiber laser machine to engrave products details. Its engraving effect is permanent, different from traditional oil paint, even though minimal characters or numbers,its engraving effect is legibleand clean, don't change in the hash environment.
Video shows:

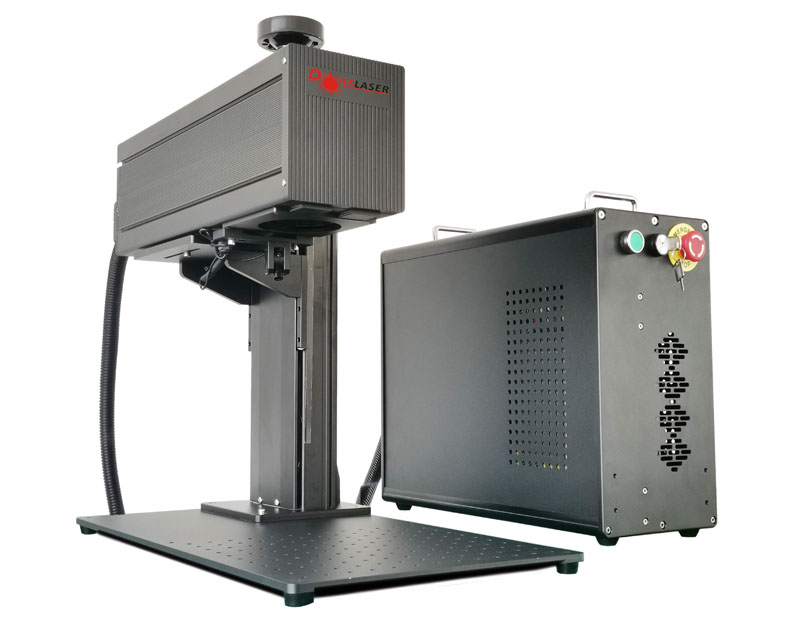

Machine's features
1. Wider application range
This machine is 3D dynamic (curved surface) marking . It's usually use for common metals and alloys,including steel,stainless steel,iron,copper,brass,aluminum,magnesium, zinc and other metals. So it is suitable for engraving on electronic components.

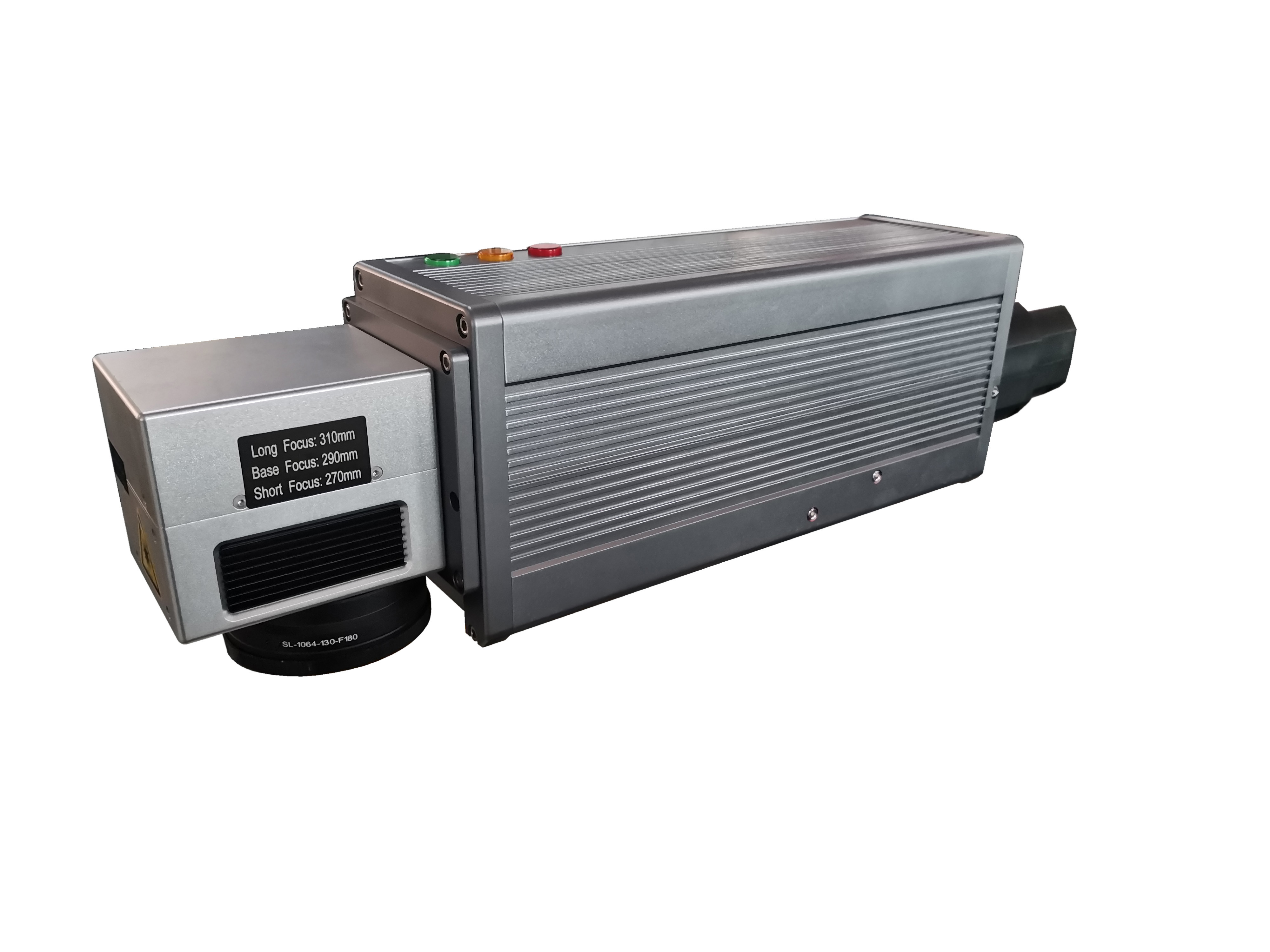

2. Auto focusing
No need to manual focusing, make the work more easy and simple, save a lot of processing time and labor cost,easy to operate.

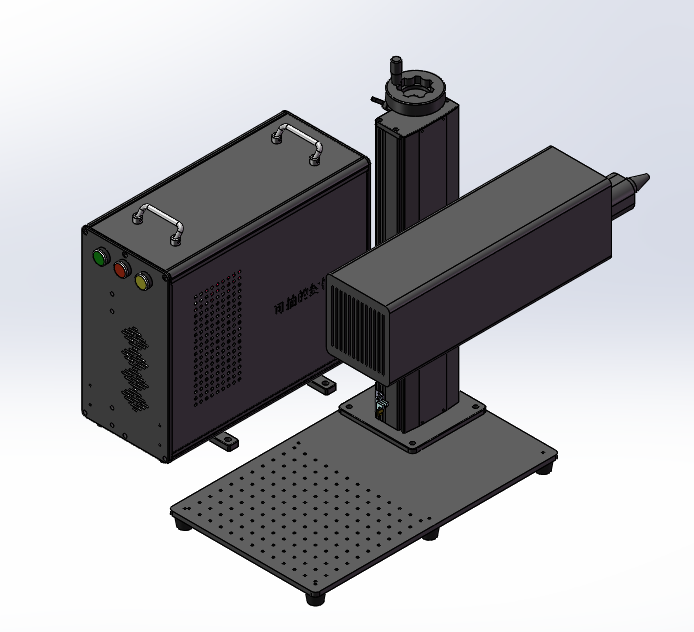

3. Unique design

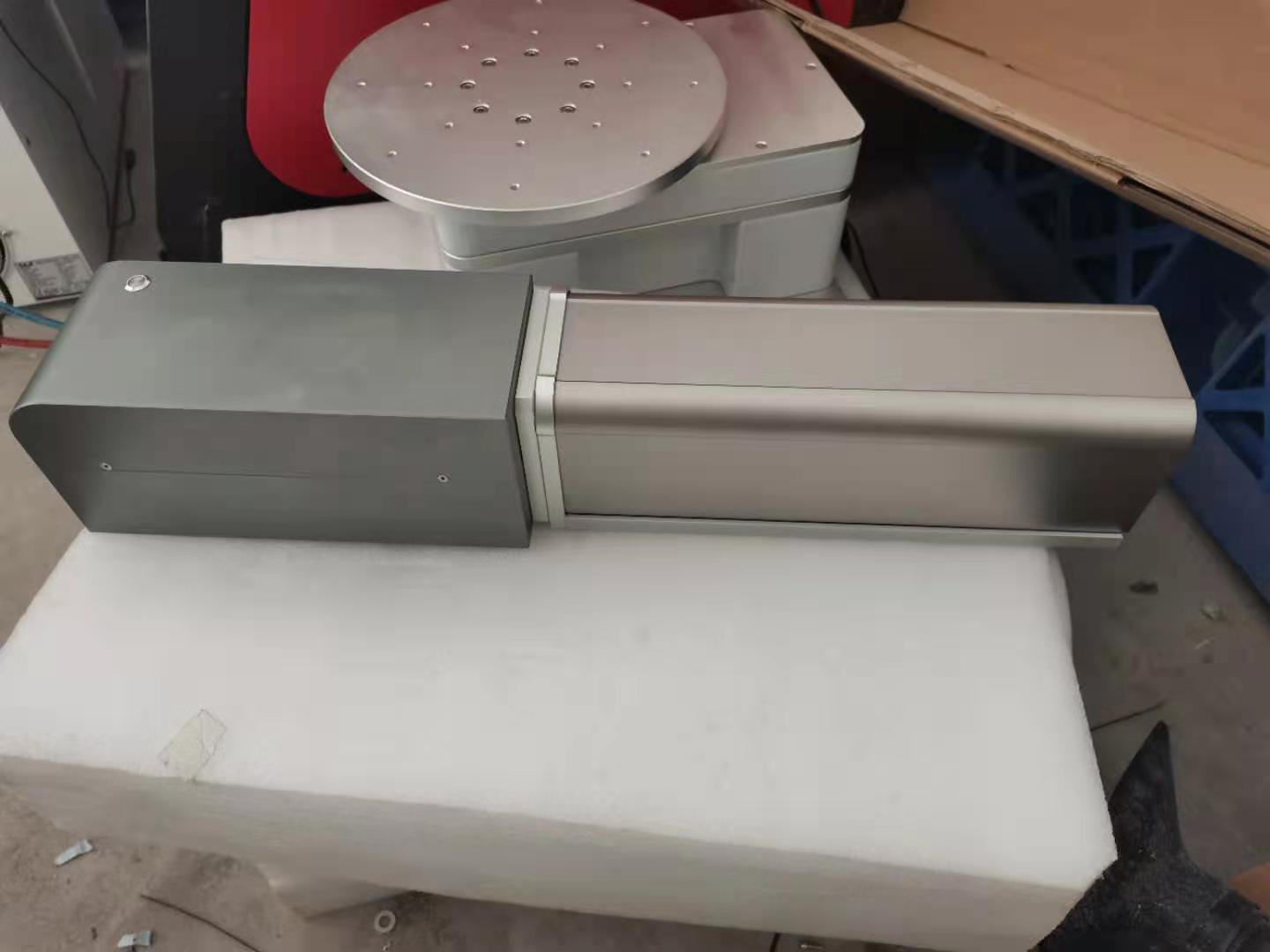

Compact size, less space occupied, easy to move, customized machine mold design, good looking appearance and engraving experience, german technology and quality, first-class assembly standards.
4. Versatile
Rotary,disk rotation,conveyor are optional, Dotslaser offers you best machine, we will follow your requirements to design our machine.
Parameter
NO. | Name | 30W fiber laser electronic components |
1 | Model | DS-LM30 |
2 | Power | 5.5KW |
3 | Voltage | 380v 50/60hz |
4 | Engraving Area | 700*900mm |
5 | Mode of Operation | Continuous Wave |
6 | Laser Source Brand | DOTS |
7 | Laser Processing Accuracy | 1 Wire (0.01mm) |
8 | Cooling | Air cooling |
9 | Size(length * wide * height) | 3190*1725 * 1500mm (Customized) |
10 | Electrical machinery | Servo Motor |
11 | Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood |
12 | Power Adjustment Range (%) | 0-100 (adjustable) |
13 | Laser Type | Fiber Laser |
14 | Marking Depth | 0-1mm |
15 | Marking Speed | 0-7000mm/s |
16 | Weight | 1500 kg |
What are electronic components?
▼An electronic component is any basic discrete electronic device or physical entity part of an electronic system used to affect electrons or their associated fields. Electronic components are mostly industrial products, available in a singular form and are not to be confused with electrical elements, which are conceptual abstractions representing idealized electronic components and elements. A datasheet for an electronic component is a technical document that provides detailed information about the component's specifications, characteristics, and performance. Discrete circuits are made of individual electronic components that only perform one function each as packaged, which are known as discrete components, although strictly the term discrete component refers to such a component with semiconductor material such as individual transistors.
▼Electronic components have a number of electrical terminals or leads. These leads connect to other electrical components, often over wire, to create an electronic circuit with a particular function (for example an amplifier, radio receiver, or oscillator). Basic electronic components may be packaged discretely, as arrays or networks of like components, or integrated inside of packages such as semiconductor integrated circuits, hybrid integrated circuits, or thick film devices. The following list of electronic components focuses on the discrete version of these components, treating such packages as components in their own right.
▼Marking on electronic components is a delicate process, no damage and need precise engraving, traditional paint can't meet this requirements, laser marking machine perfectly deal with this problem, our laser engraver is equipped with high speed galvo laser source, ensure fast engraving and engraving accuracy, save processing time ,suitable for mass production.

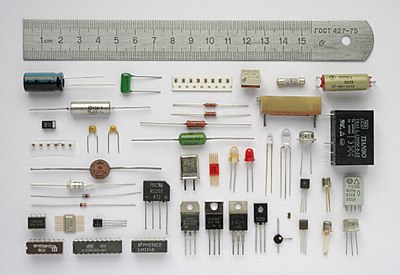

The main components of electronics
1. Capacitor,
2. Resistor
3. Diode
4. Transistor
5. Inductor
6. Relay

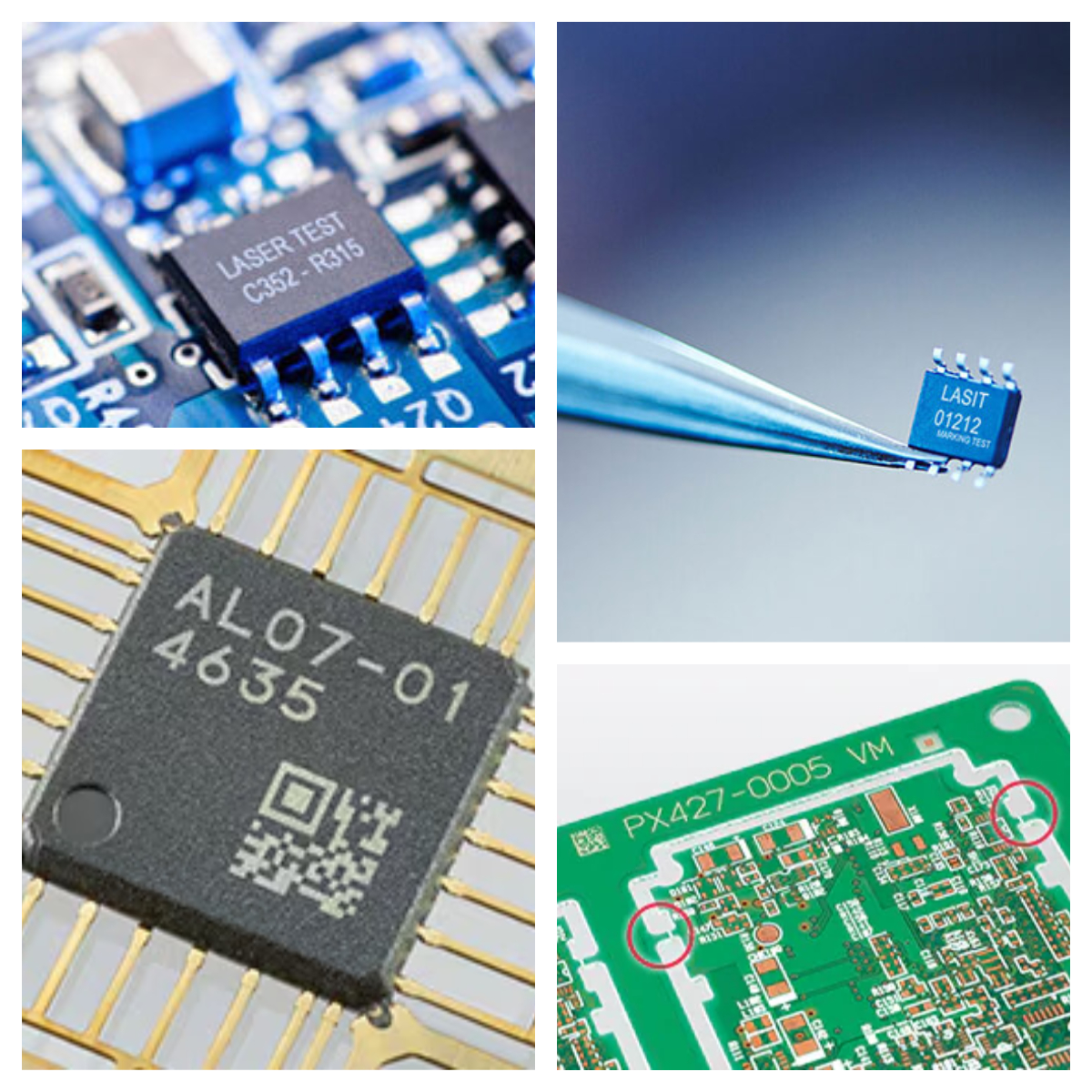

Samples
Shipment and package
Certificate
