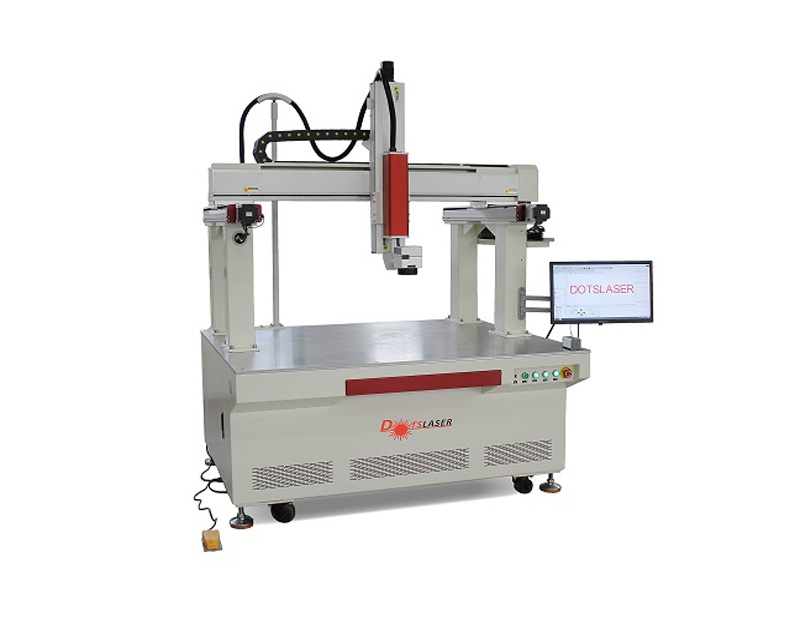

4 Axis Automatic Fiber Laser engraver

Four Axis Automatic Fiber Laser Marker use high technique to engrave. This advanced machine is very suitable for marking on large format materials with high precision and efficiency. With its superior performance and versatility, businesses can now easily imprint customized logos, brand names, and product information on a variety of surfaces.

Product Details

Video shows:


Products Features

 1. Four-axis automatic fiber laser marking machine is one of the leading products widely used in the market with advanced functions,

large format and high cost performance produced by DOTSLASER.

 2.The use of four-axis linkage control system, the platform servo X, Y axis and galvanometer X, Y axis collaborative control on working,

large platform can mark more objectives.

 3. Four-axis linkage control system can realize the large-format map file while walking, and the axial movement and

 the vibration mirror processing can be carried out at the same time, which can not only achieve accurate position control

and speed control, but also ensure the stability and accuracy in the marking process;

 4. Intelligent linkage control, intelligent uniform speed marking, more comprehensive CAM software, so that the machine

 through simple debugging can achieve the height of complex graphics marking.

 5.Marking speed: high-speed galvanometer scanning can reach maximum 7000mm/s marking,it's suitable for industrial

mass production.

Wide Applications:

 Widely used in paint surface removal, coating layer removal, frosted surface marking, graphic line marking, intelligent mirror, glass technology, decorative painting technology, elevator pattern, advertising industry, large format pattern and other fields

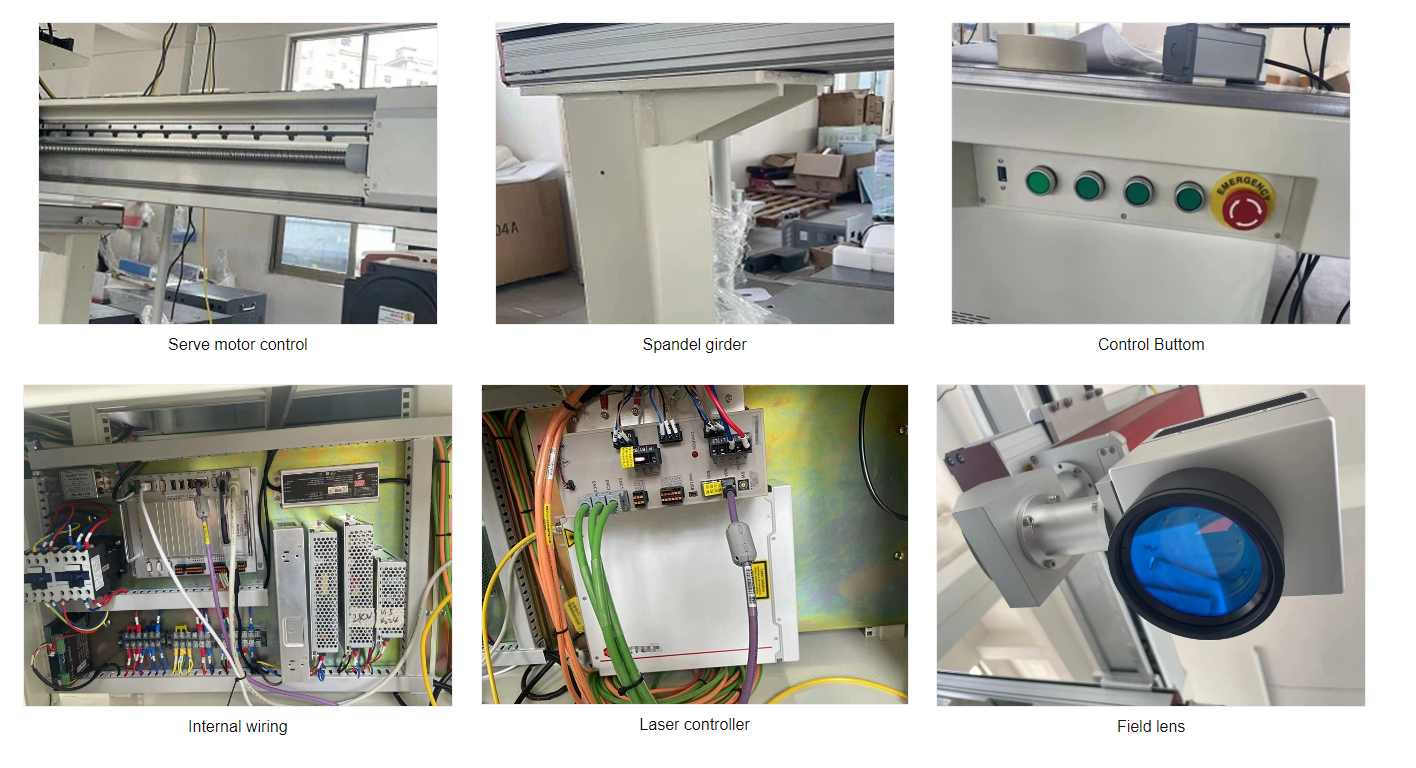

Machine main components:


products Parameters

                                                                                                                                                Operate Environment

ModelDS-LM100
Voltage220V,50/60Hz
Power Comsumption1500W

                      Option Parameter

Output Power

100W (optional)
GalvometerDotslaser
Marking Area700mm * 900mm
 Line Width0.01mm-0.1mm
Minimum Character0.15mm
Power Adjustment Range (%)0-100 (adjustable)
Marking Speed0-9000mm /s
Optical Cable3m
Wavelength1064nm
Systems SoftwareDOTS
Cooling modeAir Cooling

electrical machinery

Servo Motor
Optical qualitym2≤2

Machine bacic Parameter

Package Size1270mm * 1170mm * 1200mm
Applicable IndustriesManufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Graphic Format SupportedAI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Warranty1 year

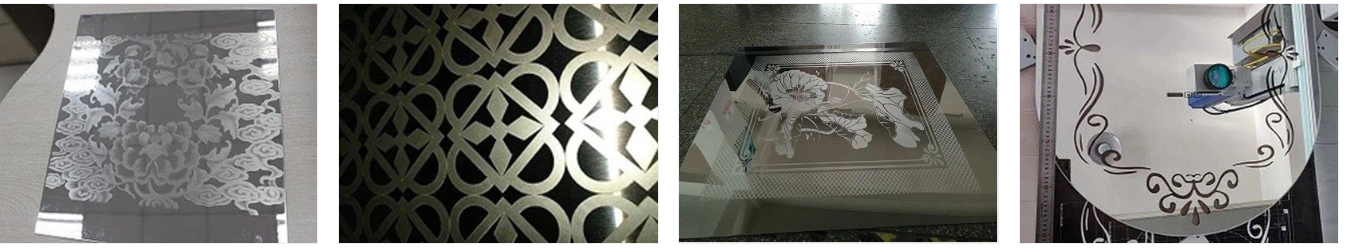

Samples:



Shipment and Package

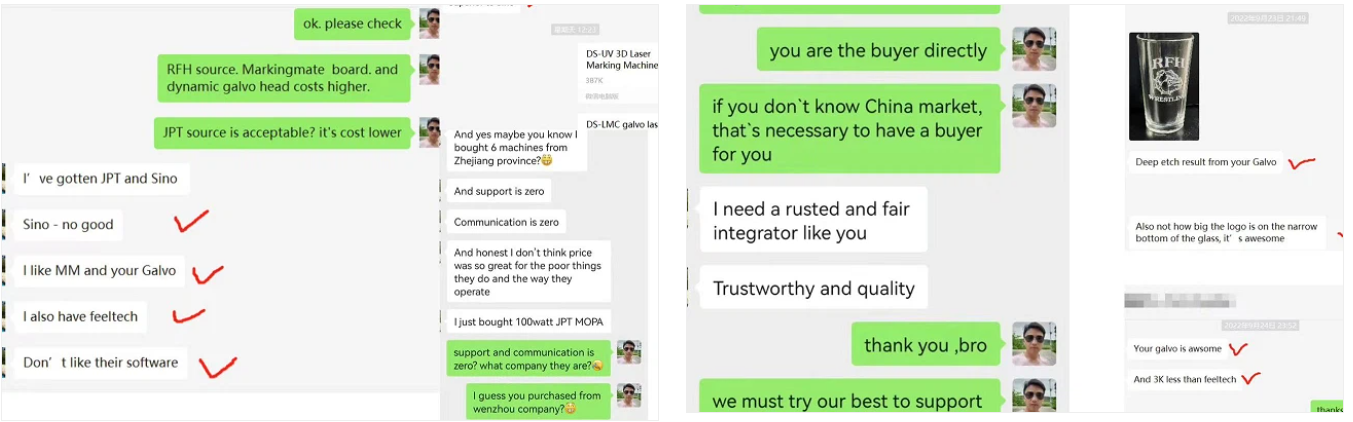

Customer's feedback



After sales services

Daily maintenance

● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.

● Please turn off each part and main power supply when they are clean.

● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.



Unpacking Caution

Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.

● Whether there is damage or deformation during transport.

● Confirm that all of the items on the packing list are correct.

● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).

● Make sure that all clamps are tight and that there are no foreign objects in the device.

● Confirm the operation buttons, switches are normal.
