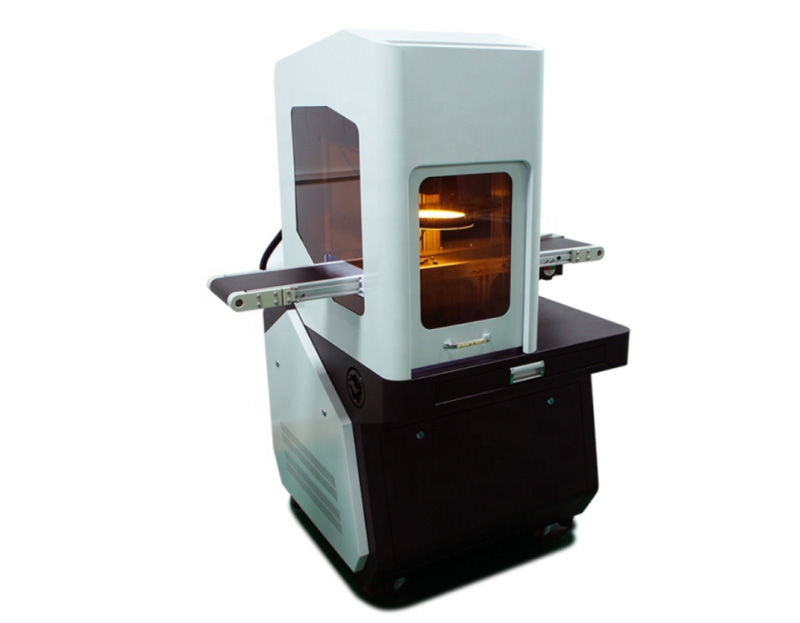

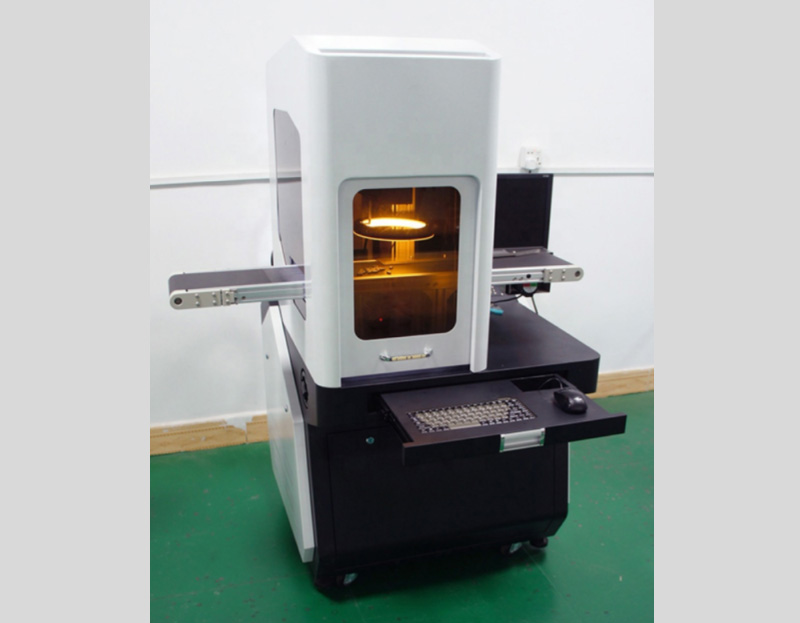

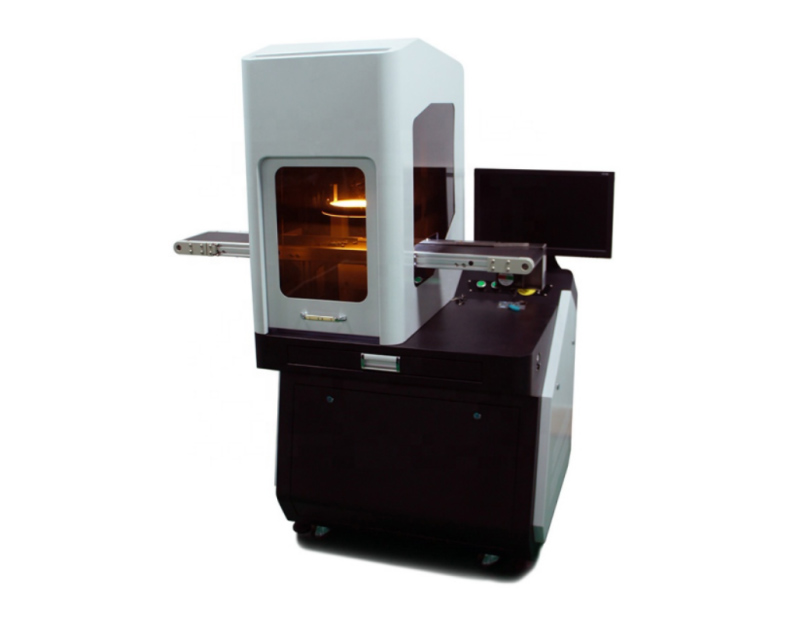

CCD visual positioning and linear table enclosed fiber laser marking machine
Application: almost all metal materials and non-metal material, such as steel, carbon steel, stainless steel, iron, copper,brass,silver, aluminum,PVC,ABS,PC,etc.
Product Description
Brand new type CCD visual fiber laser marking machine, use visual positioning technology to achieve efficient marking and save a lot of labor.
Install with enclosed cabinet, protect you from laser hazard.
Applicable for both metal and non metal materials.
It is environmental friendly and of easy maintenance.
Its service life is able to reach 100,000 hours.
The galvanometer scanning system adopts brand new technology, material, design and manufacturing.
It is equipped with JPT MOPA fiber laser source of high quality, high energy and high stability.
Package Content
* Complete Machine

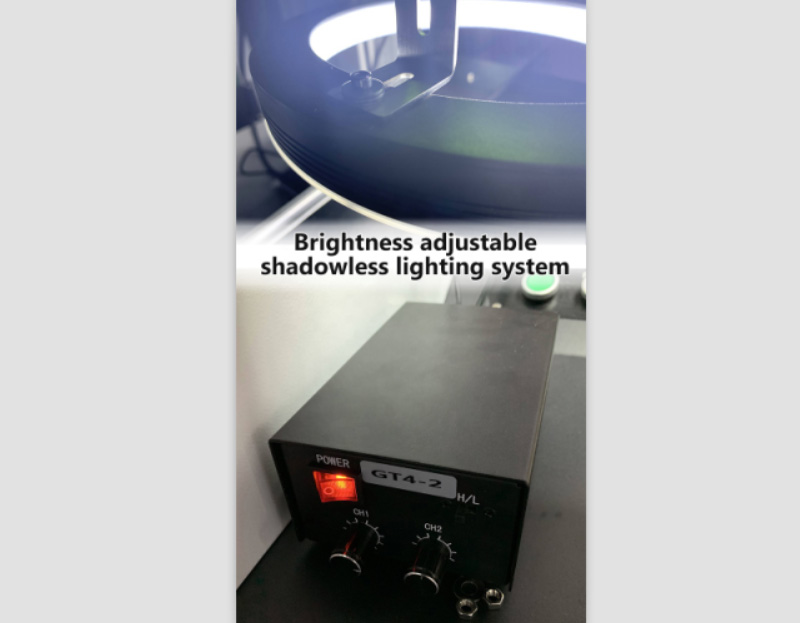

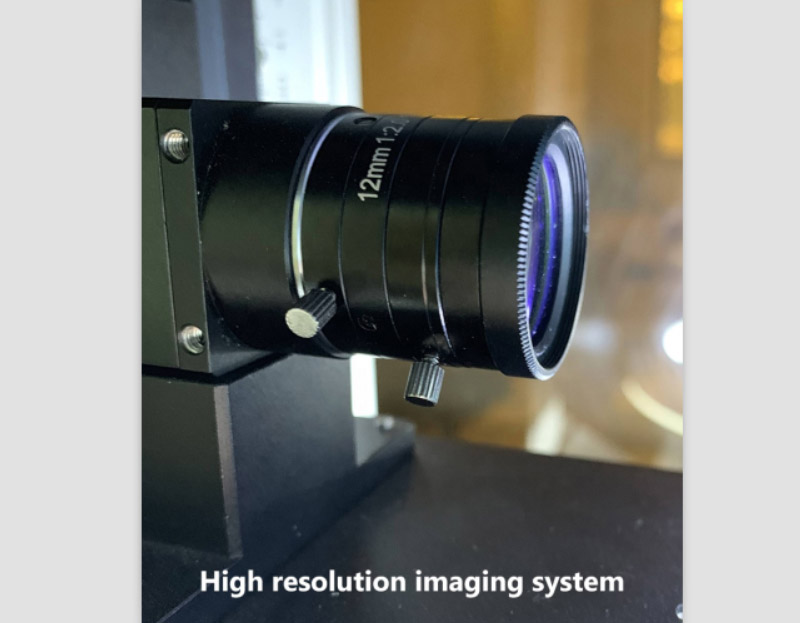

* CCD visual system
* Conveyer
* Laser Engraving software Package (English Version)
* CCD visual marking software (English Version)
* User Manual
Advantages/characteristics:
1. Fast speed, high efficiency
2. Processing area is optional.
3. No consumable parts, only power supply is ok.
4. Very economical machine.
5. Easy to learn and operate.
6. Stable and free maintenance.
7. Laser source is optional for different work with different power and result.
8. Easy to move around.
9. Long lifetime, 100,000hrs life and 24hrs work continuously.
10. Low working environment requirement.
Parameter:
| Laser power | 20W/30W/50W/60W/100W |
| Laser lifespan | 100,000 hours |
| Laser beam | 1064nm |
| Optical quality | ㎡ ≤ 1.5 |
| Repeat frequency | 30khz-60khz |
| Marking speed | ≤8000mm/s |
| Marking range | 100mm*100mm(standard), |
| Min. Line | 0.01mm |
| Repeat precision | ±0.001mm |
| Power consumption | ≤900W |
| Voltage | Ac220v 50Hz 5A |
| Cooling mode | Air cooling |
| Supported characters | Any fonts downloaded on computer |
| Supported format | PLT,DXF、BMP、JPG、PNG、TIF、PCX、GIF、 etc. |
| Supported Bar code | CODE39,EAN, CODE128 ,DataMatrix,PDF417 etc. |
Samples:
