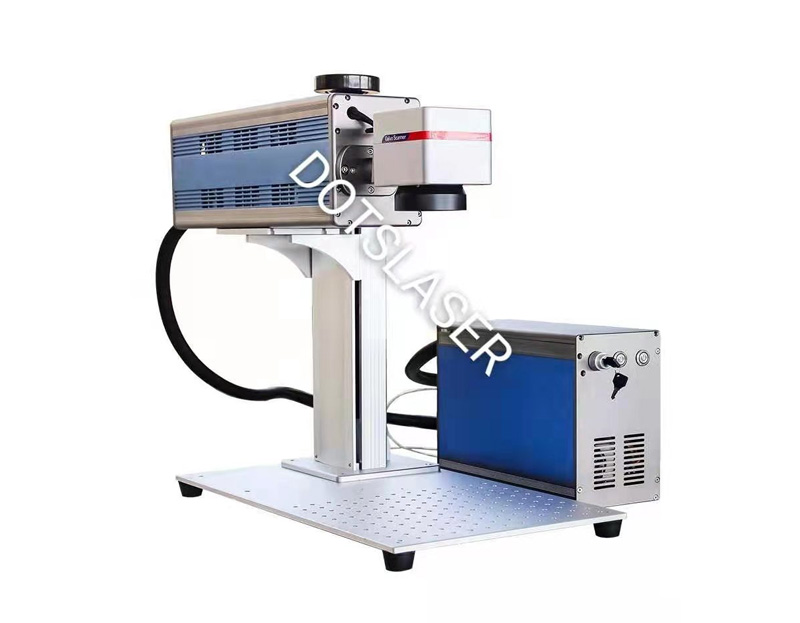

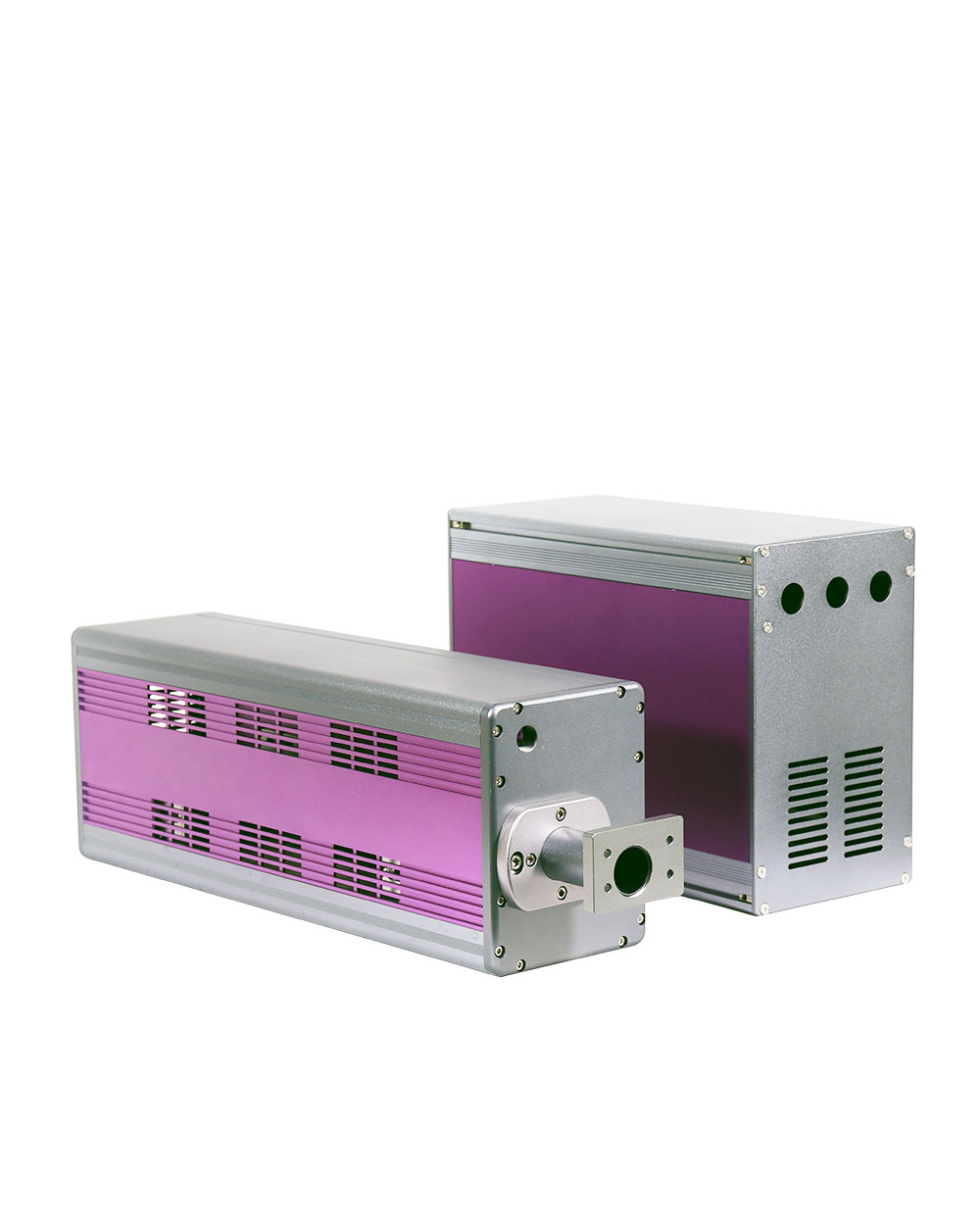

CO2 laser engraving machine
CO2 laser engraving with high precise engraving and fast engraving speed, it's suitable for engraving plastic,bamboo,wood,paper,stone.It also can apply on wide applicable industries,such as electronic products industry,medicine,food,advertising,toys,automatic and packing industry.
Video shows:
Machine's advantages:
1. Fast marking/engraving speed,this machine equipped with high speed galvo scanner.so its engraving speed and accuracy are better than traditional machine.
2. Easy to operate,even you are don't familiar with laser machine,after several days training,you can master this machine quickly without problem.
3. Engraving precisely,swif,engraving depth can be controlled.It can engrave the small characters or pattern with flawless.
4. This machine equipped with good beam quality,high photoelectric conversion efficiency, good performance and can be competent at fine processing.
5. Long lifetime: the service life time can reach up to 20,000 hours.
6. Portable, all-in-one machine,saving space
7. Multiple Marking form: Flying Marking,Line Printer, Rotating Marking.Multistage Marking.
8. Support different file formats: PLT, AL, DXF, BMP, JPG and so on.
9. OEM customization can be accepted.
Machine parameter
NO. | Name | CO2 laser marking machine |
1 | Machine model | DDS-LM60 |
2 | Rated output power | 55W/80W |
3 | laser wavelength | 10640 nm |
4 | Laser level | Class 4 |
5 | Repeat accuracy | ±0.01mm |
6 | Min.line width | 0.1mm |
7 | Min.character size | 0.5mm |
8 | Max marking speed | 8000mm/s |
9 | Working area | 100x100mm(standard)/200x200mm/300x300mm |
10 | Cooling | Air cooled |
11 | Working environment temperature range | 5~35 ℃ |
12 | Humidity range of working environment | < 70% No condensation |
13 | working voltage | 220V,50/60Hz |

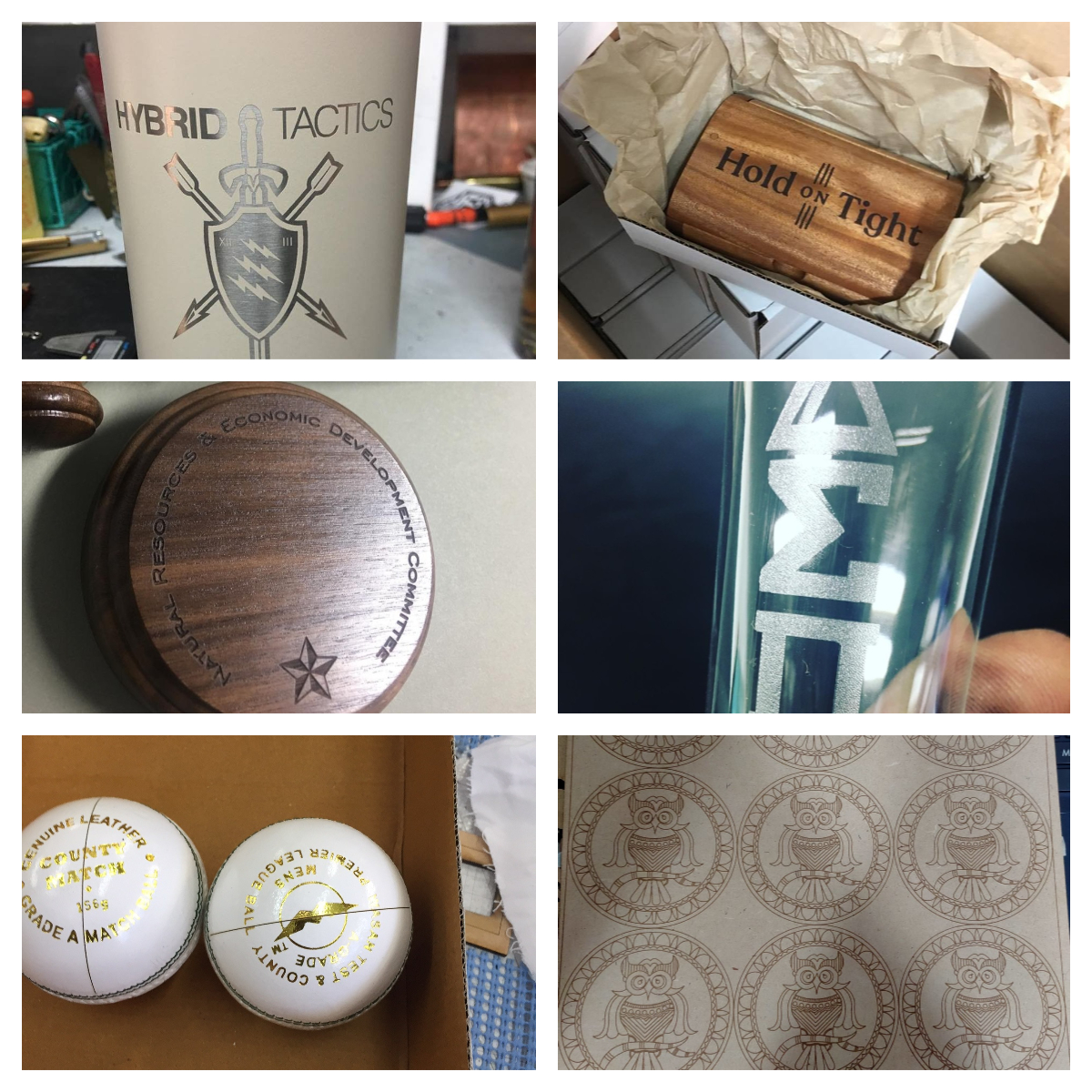

Samples of CO2 laser engraving items
Applicable materials and industries:
CO2 laser marking machine has wide applicable materials,including non-metallic materials,including leather,texttile,film,wood acrylic,bamboo,board,paper,plastic,stone,ABS,PVC,PCV etc. It also can apply on wide applicable industries,such as gifts,advertising decoration,toys,electronic appliances,medicine,food,automobile,packing and other industries.
Shipment and package
Certificate
Warranty and After-Sale
a. Warranty
1. 18 months for laser source,one year for other accessories,such as galvo head,lens,control board,power supply,consumable parts are not in warranty,such as keyboard and mouse.
2. DOTSLASER promises to maintain products which are produced and sent according to a formal contract,and guarantees every repaired machine will function good if used properly.
3. DOTSLASER has the rights to repair or replace a product in warranty period if it has a material or technical problem. We will charge for the maintenance under normal circumstances. It will be free if the machine has special problems.
b. Warranty Scope
DOTSLASER will not provide free warranty service in following cases:product or parts are damaged because of modification ,dismantlement ,improvement without permission ;product or parts are damaged because of emergency or negligence;product or parts are damaged because of lack of preservation ……customers have the responsibility to learn the directions on the user guide and operate the machine properly. Damages resulted in abnormal operation will not get warranty services. Accessories are not in warranty.
Customers should make a written request in 30days as soon as they found a problem which is in the warranty range , no third party should be involved in the maintain process and products or part that are not produced by DOTSLASER should also not be included.
c. Technical Support and Product Maintenance
Contact with DOTSLASER’s engineer whatever problems occur when using,and make a troubleshooting under engineer’s direction.
All products waiting for repair or replacement should be placed in cases DOTSLASER provides,otherwise DOTSLASER will charge for the damage it may cause.
When customers receive DOTSLASER`s products, please check if the product is damaged and whether accessories is complete or not.
DOTSLASER keeps on developing new products, information and parameters in this file may change. All technical parameters are subject to the contract.
Warranty and after-sale clauses above are for reference only ,and are subject to the formal contrast.
