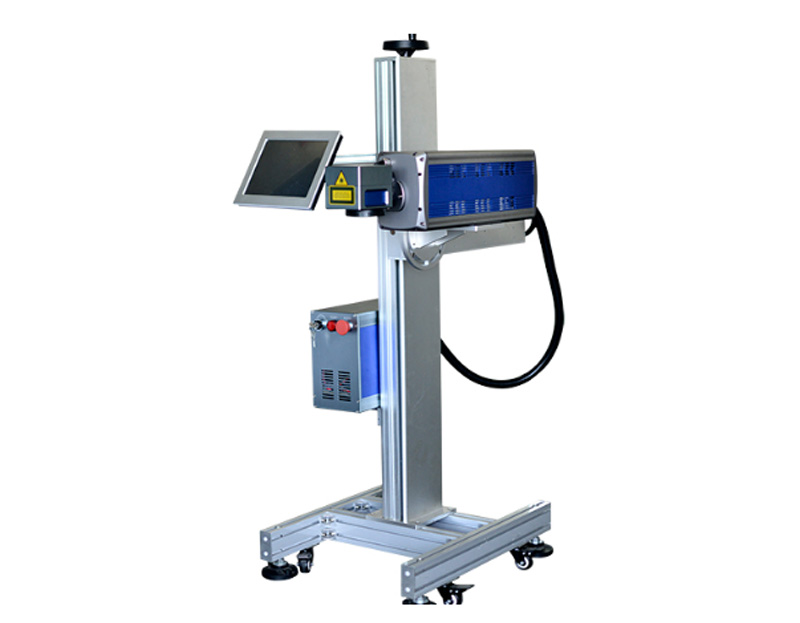

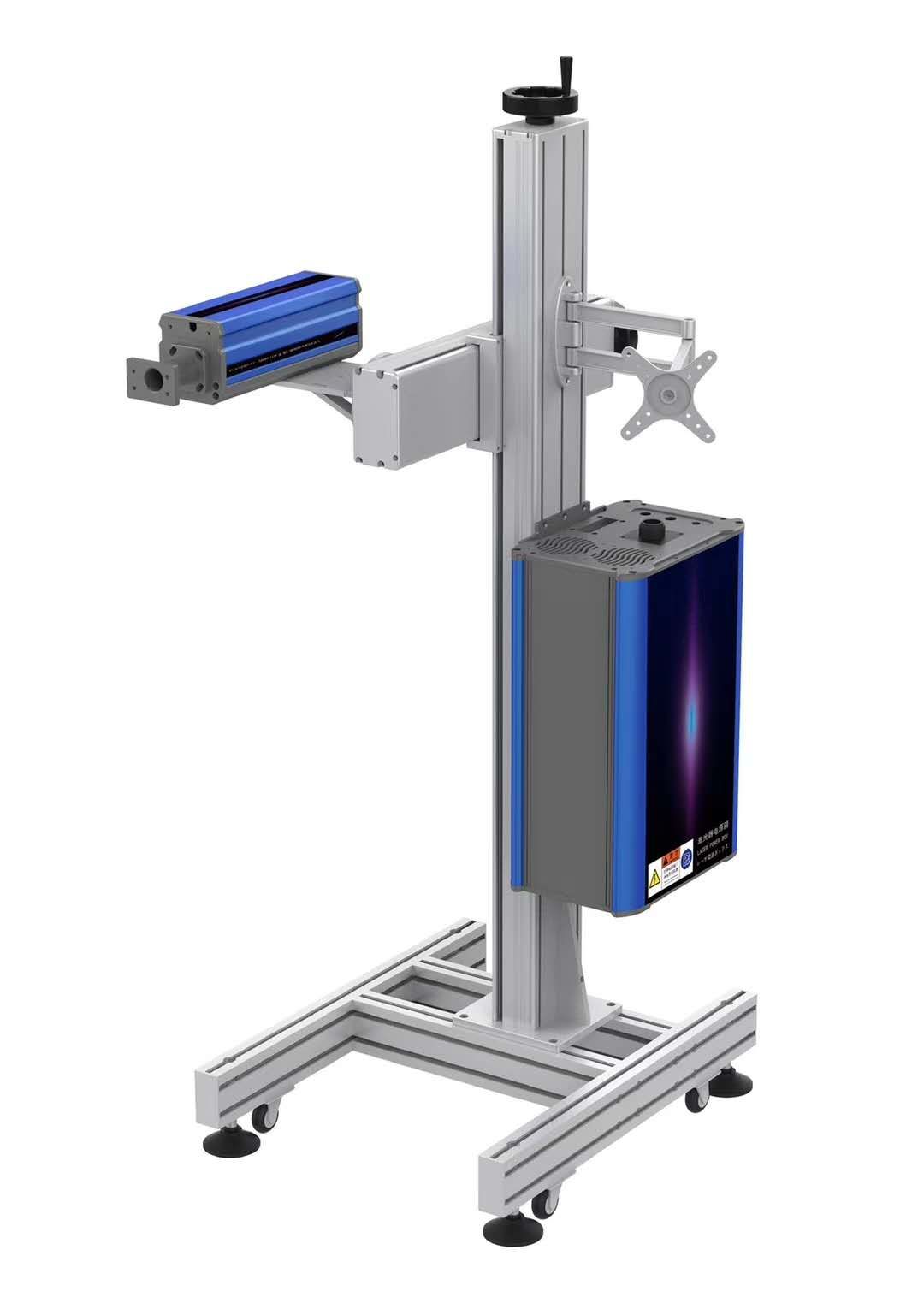

Fiber flying engrave electronic devices

Fiber flying laser machine is design with compact size,Dotslaser adopts good quality metal sheet in the market, high quality anti-water coating, four roller casters are convenient to move, flexible adjusting stand column rotation axis,fast engraving speed with good marking performance.

Inquire Now Next Product

Product Details

Video shows:

Machine's features:

1. Excellent laser beam

Fiber laser source is better than traditional solid laser source, smaller laser light spot, it is particular for engraving delicate products, suitable for precise marking.

2.Easy to operate

This fiber flying laser machine adopts high quality touching screen, convenient to test samples, compact machine's size, occupies small area,saving space cost.

3. Fast engraving speed

This machine is equipped with high speed scanning system, It can reach high speed up to 200 meters per minute (single-line 2MM-high numbers and letters) with high-yield application identification requirements, under the flying marking mode, marking content and size not affected by the lens size, it can finish large area marking.

4. Low processing cost

The electro-optical conversion efficiency is as high as 30%, the power consumption of the whole machine is less than 500W, thus saving energy consumption, and the laser has no additional consumables in the normal use process, greatly reducing the use cost.

Parameter

Model serials	T serials(Max laser source)
Model	T200
Laser parameter	Laser source model	MFP-20G/20X
	Output power	18.5W
	Beam quality M2	≤1.4
	Pulse repetition frequency	27-60 KHZ
	Laser wavelength	1064±5
	Output power stability	＜3%
	Working life	About 100000 working hours(non lifetime)
Optical properties	Marking range	100-300mm
	Engraving depth	≤1 mm (depending on power and time)
	Engraving speed	≤10000mm/s
	Repeat accuracy	±0.002
	Minimum marking line width	0.1mm
	Minimum character height	0.15mm
Use environment	Cooling way	Air cooling
	System power supply	500W/220V/50Hz(110Vcanbeconnected)
	Temperature humidity	0~40°,30%RH85%,airconditionershouldbeinstalledwhenusedoutsidetherange
	Oil mist condensation	Not allowed
Other parameter	Operating system	Fly control system
	File format	The software supports text, Model serials T serial（MAX laser source ) QR code, bar code, serial number, graphics and other marking content
	Dimensions	660X510X1460 mm
	Packing size	Host: 790X740X350mm Column: 1350X350X280mm
	Total weight	About 66KG

Fiber laser source introduction:

All of our laser sources are produced by domestic or imported well-known manufacturers. We can choose good quality brands laser spurce or be customized according to user needs.

Laser machine principle introduction:

Fiber laser refers to the use of rare earth elements doped glass fiber as the gain medium of the laser, fiber laser can be developed on the basis of fiber amplifier: under the action of the pump light, it is easy to form a high power density in the fiber, resulting in the laser level of the laser working substance “ Population inversion ” When a positive feedback loop (forming a resonator) is properly added, the laser oscillation output can be formed.

First, the fiber laser is a solid fiber laser, with high quality laser beam, the main procurement source is well-known manufacturers at home and abroad.
Second, Dotslaser marking machine is the use of high-speed scanning head, its marking speed is fast, is the ordinary YAG laser marking machine and end pump semiconductor laser marking machine 4 times or even higher, so as to save you expensive labor costs.
Third, Dotslaser marking machine adopts full air cooling（optional）, no consumables, low cost, energy saving, compared with lamp pump and semiconductor laser marking machine can save electricity 20,000 to 30,000 yuan per year (depending on the use time).

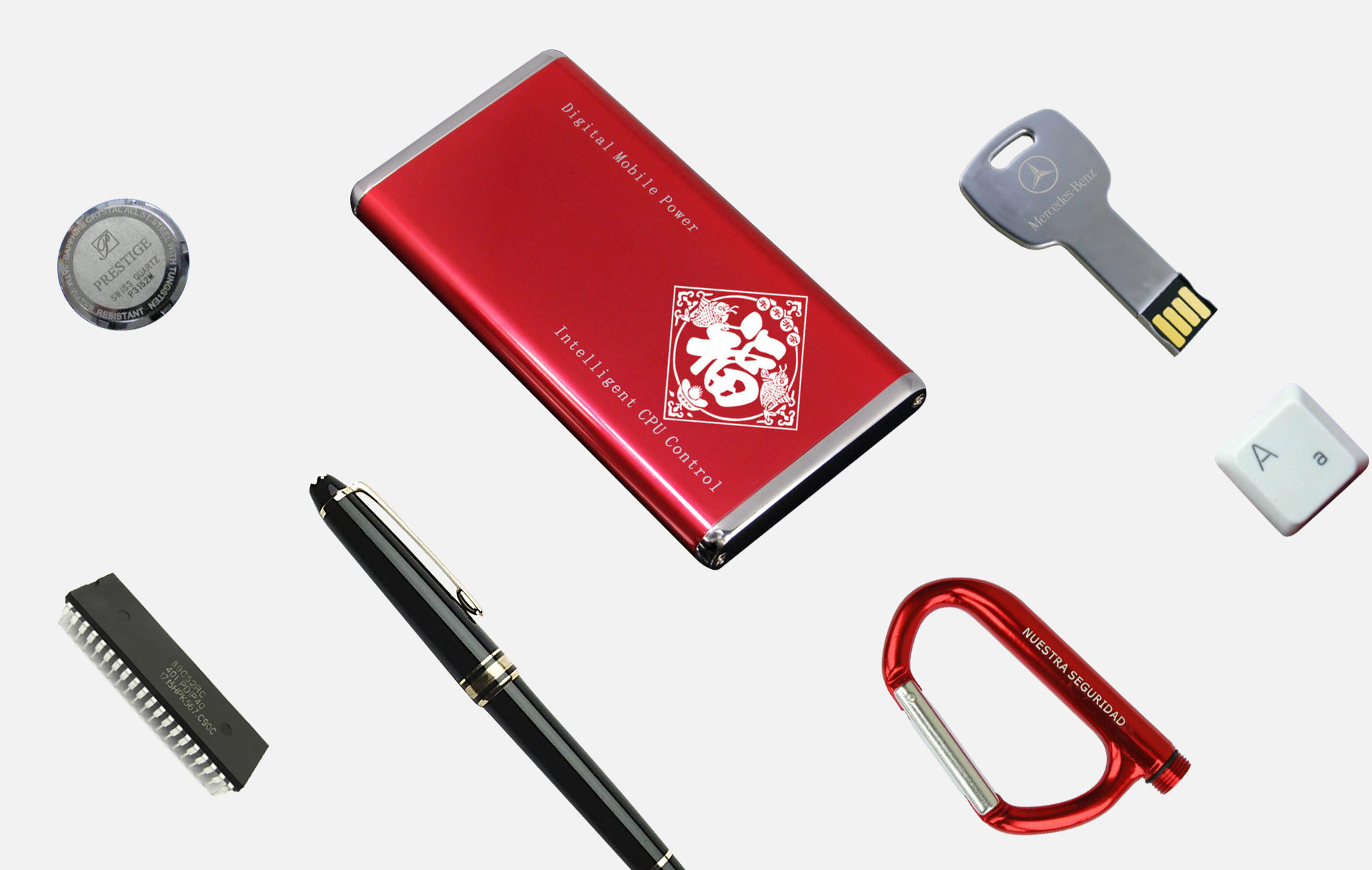

Samples

Applicable Industries

1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor.

2. Instrument: Panel Board, Nameplates, Precision equipment.

3. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools.

4. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware.

5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights.

6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, Wire Marking.

Applicable Materials

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin,

ceramic, plastic, ABS, gold, sliver, brass, steel, titanium, copper and other materials.

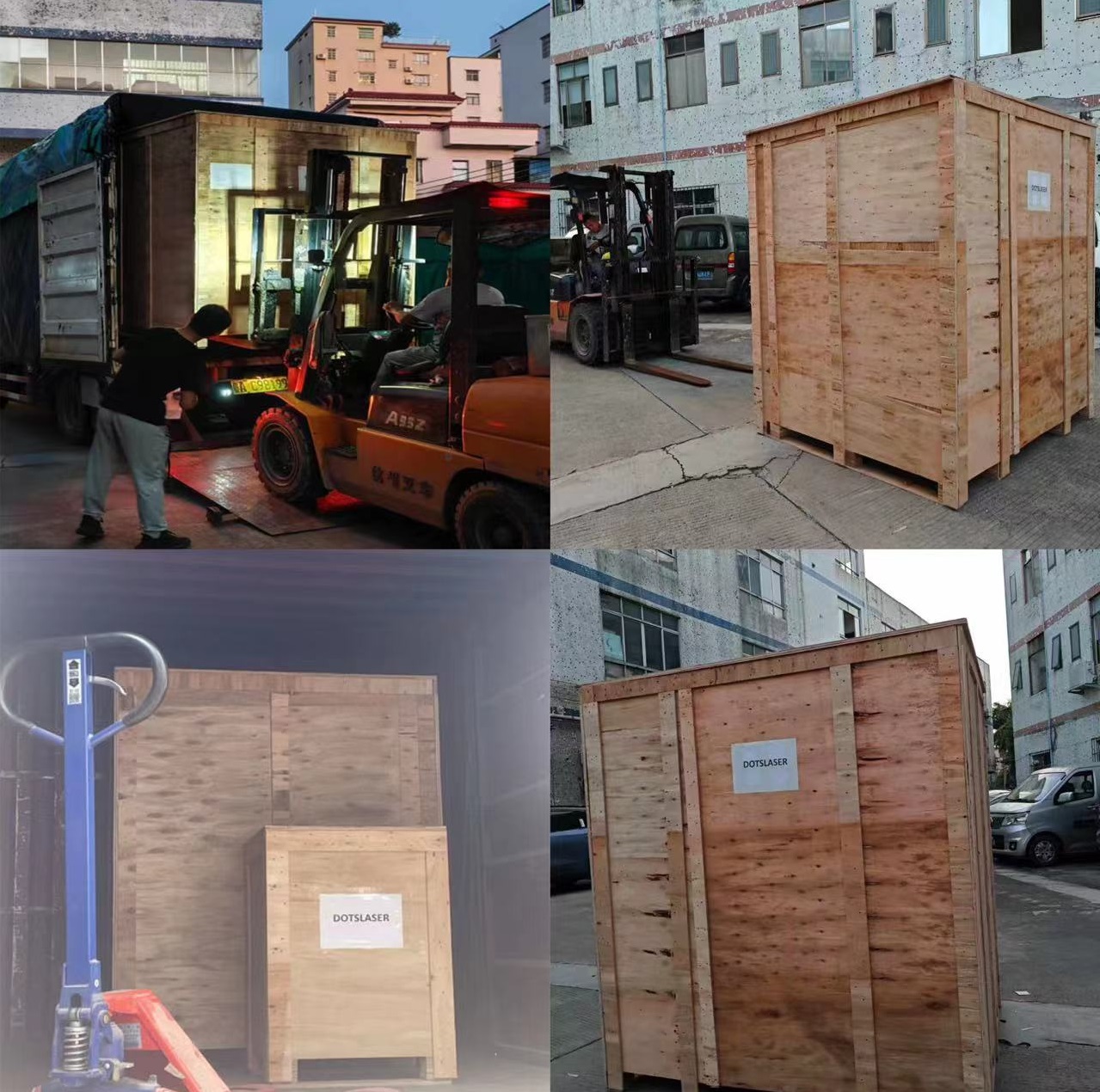

Shipment and package

Fiber flying engraver package

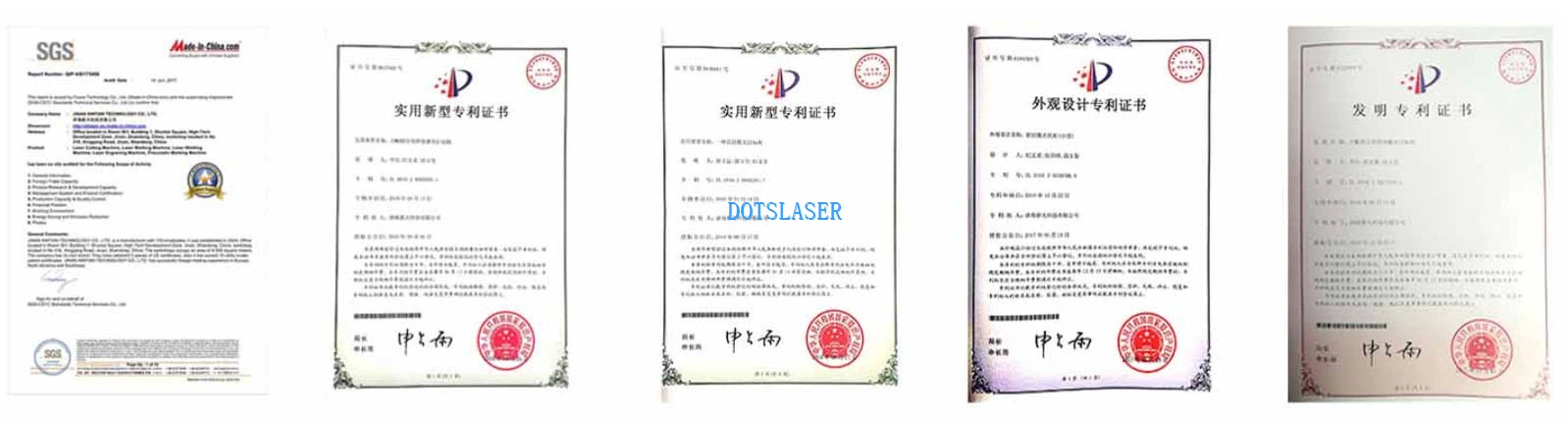

Certificate
