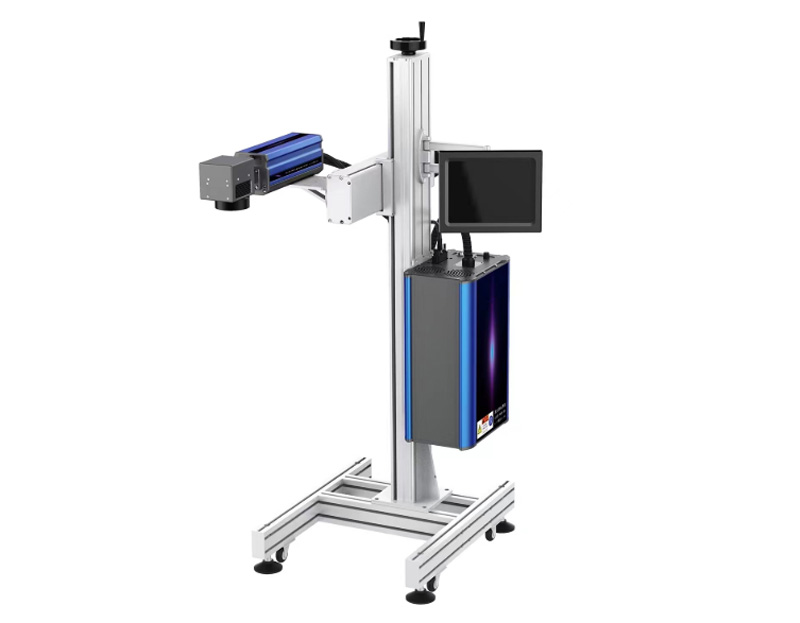

Fiber flying laser engraver

Fiber laser online flying markign machine is equipped with power laser source with stable performance,it enables marking of most metal materials and some non-metallic materials with surface  treatment, such as metal products, PVC, HDPE, aluminum film, rubber and plastics.

Product Details

Video shows:


Machine's advantages

1. Stable laser beam

Fiber flying laser mahine use continuous laser beam marking to increase productivity greatly, adopts MAX intrustrial-grade high performance laser source, fast processing efficiency and marking speed on  the production line.


2. Permanent indentification

Laser marking anti-counterfeiting code,  Legible characters marking, perfect carving effect, it won't fade and change enen in a hash environment, designed to improve productivity and high-speed continuous marking models, using the domestic first-line fiber optic optical device.


3. Hgh productivity

Online flying fiber laser marker is mainly used to spray and engrave the code on products surface of flowing production line. It is different with traditional laser marking machine which only can mark on static objects.This machine can engraving items one by one without manual operation,it increase productivity greatly and saves a lot of processing time and labor cost.


4. Wide applications

Fiber laser in-line marking machine is suitable for in-line marking of most metal materials and some surface treated non-metal materials, such as metal products, PVC, HDPE, aluminum film, rubber and plastic, etc.



Parameter

Model serials



T serials(Max laser source)

Model

T200

Laser parameter

Laser source model

MFP-20G/20X

Output power

18.5W

Beam quality M2

1.4

Pulse repetition frequency

27-60 KHZ

Laser wavelength

1064±5

Output power stability

3%

Working life

About 100000 working hours(non lifetime)

Optical properties

Marking range

100-300mm

Engraving depth

1 mm (depending on power and time)



Engraving speed

10000mm/s



Repeat accuracy

±0.002



Minimum marking line width

0.1mm



Minimum character height

0.15mm



Use environment

Cooling way

Air cooling

System power supply

500W/220V/50Hz(110Vcanbeconnected)



Temperature humidity

0~40°,30%RH85%,airconditionershouldbeinstalledwhenusedoutsidetherange



Oil mist condensation

Not allowed



Other parameter

Operating system

Fly control system

File format



The software supports text,

Model serials T serialMAX laser source ) QR code, bar code, serial number, graphics and other marking content



Dimensions



660X510X1460 mm



Packing size

Host: 790X740X350mm Column: 1350X350X280mm



Total weight

About 66KG



Applicable industries:

It mainly used in production date, anti-counterfeiting, medical and food packaging industries.

This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code,  automatic number skipping, etc., to meet the needs of customers in different industries.


Applicable materials:

Fiber laser online marking machine is suitable for online marking of most metal materials and some non-metallic materials with surface  treatment, such as metal products, PVC, HDPE, aluminum film, rubber and plastics. It is widely used in the production of personal care  products, food and beverage packaging, wine, dairy products, electronic components, chemical building materials and other fields,  and the expiration date, batch number, shift, manufacturer name and logo and other graphics and text markings.

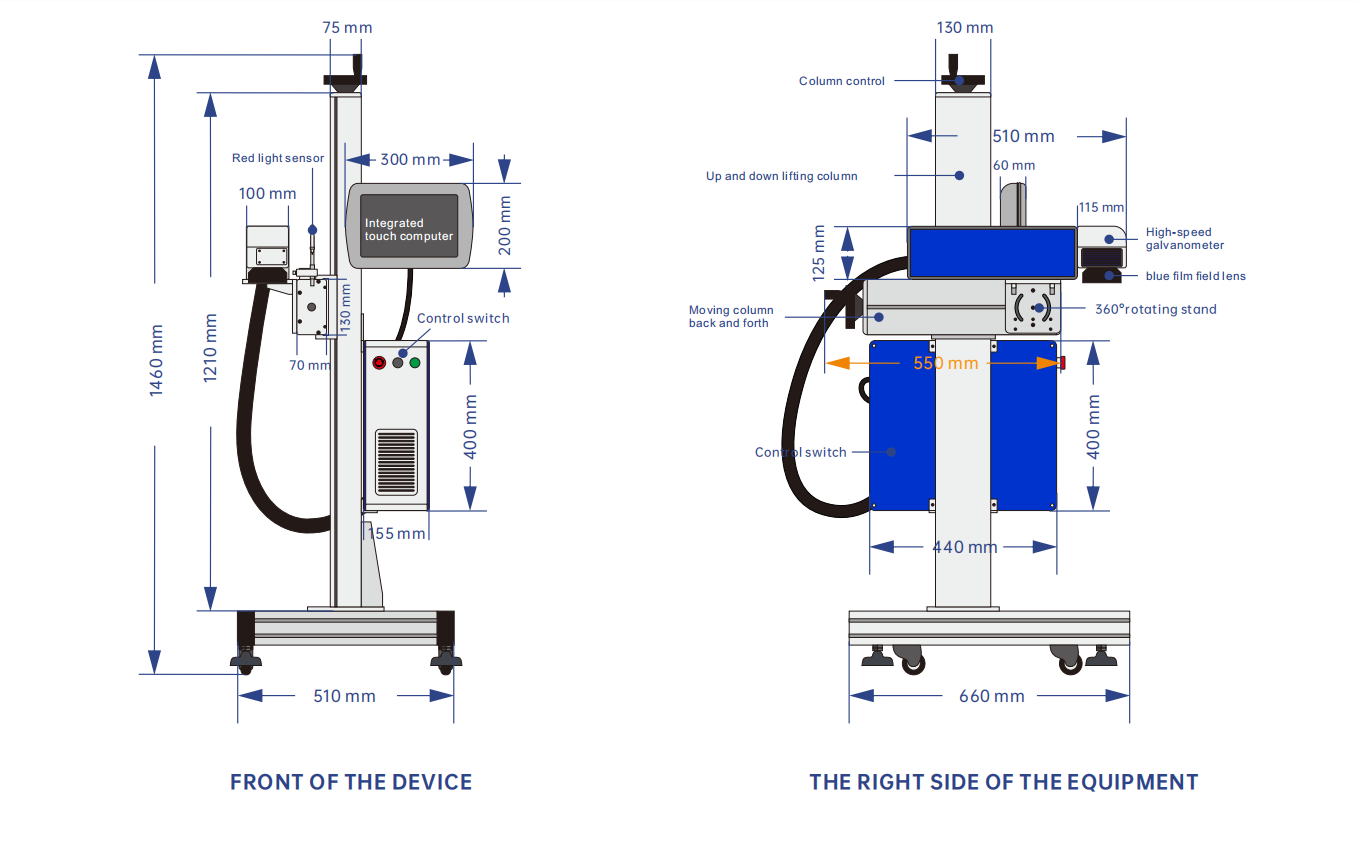

Product's size


How to choose a fiber laser flying machine?

1. Determine your marking materials

The first step in selecting a fiber laser flying marking machine is to determine your marking needs. Ensure the marking materials and find suitable laser machine,customers can send their samples to DOTSLASER, we can engrave free samples to customer, and then decide the marking area, large format machine or small format machine depens on the product's size. Knowing your marking needs will help you choose a machine that meets those requirements.


2. Choose the right laser source

Fiber laser flying marking machines use different types of laser sources, we mainly choose trusted brands MAX laser source which with stable laser beam performance. Products materials and engrave depth is  the important reasons when you assemble laser source.


3. Look at the software and user interface

The software and user interface of a fiber laser flying marking machine play a crucial role in its usability. Choose a machine with user-friendly software and interface that is easy to use and offers customizable marking options. Reliable software help you engraving procedure more fluent.


5. Evaluate the machine's reliability and maintenance needs

When selecting a fiber laser flying marking machine, consider its reliability and maintenance needs. Choose a machine that requires minimal maintenance and has a long lifespan to ensure continuous, uninterrupted operation.


Samples

Fiber flying laser marking samples

Machinery delivery

Fiber laser engraver package
