Fiber laser to engrave wireless earphone

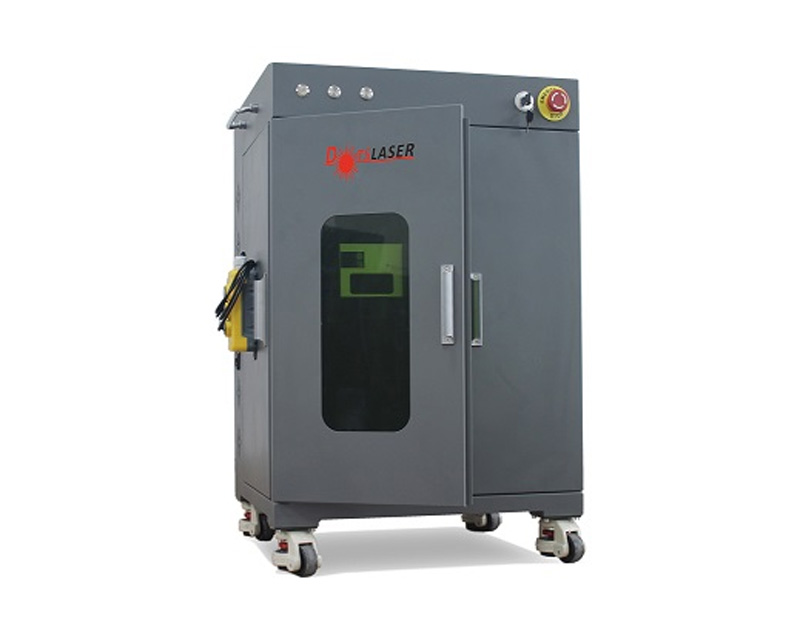

Mini fiber laser machine is equipped with powerful fiber laser source, it ensures precise engraving and fast engraving speed, save a lot of processing time and comvenient to operate. Four roller casters of the cabinet setting makes esay to move anywhere you want, protective glass plays a important role in human's body, in case powerful laser beam do harm to us, this machine is especially design for customers!
Video shows:
Benefits of the fiber laser machine
1. High Precision: Fiber lasers can cut and engrave materials with high precision that is unmatched by other types of laser technologies. They can produce intricate designs with high accuracy in a short amount of time.
2. High Speed:
Fiber lasers have a rapid cutting speed and can rapidly produce high-precision cuts. This means increased productivity and faster product turnaround times.
3. Versatility:
Fiber lasers can cut through various types of materials such as metals, plastics, and glass, making it a versatile tool in manufacturing.
4. Minimal Maintenance:
Fiber lasers have fewer moving parts compared to other laser technologies, which means they require less maintenance and have low maintenance costs.
5. Energy Efficient:
Fiber lasers have an efficient power consumption that leads to more significant energy savings compared to other laser technologies.
Parameter
NO. | Model | DS-LM20 |
1 | Laser source | Fiber generator |
2 | Engraving depth | ≤0.2mm(depends on material) |
3 | laser wavelength | 1064±10 nm |
4 | Marking area(2D) | 100×100mm/150×150mm/200×200mm |
5 | Pulse frequency | 20~80KHZ/1~600KHZ/1~4000 |
6 | Max marking speed | 8,000mm/s |
7 | Repeat accuracy | ±0.001mm |
8 | Min.line width | 0.01mm |
9 | Min.character size | 0.2mm |
10 | Cooling | Air cooled |
11 | Working temp | 10~35 ℃ |
12 | Humidity range | < 70% No condensation |
13 | Power supply | AC220V±10%,50Hz or AC110V±10%,60Hz |
14 | beam quality | m2＜1.5 |
Samples
The development of wireless earphones:
1. The history of headphones originated in the late 1800s, primarily for professional use.
2. Stereo headphones made their debut in the 1960s, enhancing the personal listening experience.
3. The advent of Bluetooth technology has significantly shaped the current headphone industry.
4. Noise-cancelling technology and the Sony Walkman’s introduction significantly impacted consumer usage, making headphones essential for immersive sound.
5. Advancements are pushing headphones beyond mere audio devices, incorporating health monitoring and augmented reality for multifunctional use.
Application Advantage:
◆Metal surface processing, peeling coating;
◆Aluminum black marking; Semi-conductor&electronics industry applications;
◆Large area engraving;
◆Excellent marking effect on plastic or other sensitive material;
◆Black and color marking on stainless steel
Shipment and package
Certificate
FAQ
Q1: How does the package?
A: Dotslaser provides 3 layers package. For the outside, we adopt wood craft case. In the middle.the machine is covered by foam, to protect the machine from shaking. For the inside laser machine, the machine is covered by thickening plastic bag for waterproof.
Q2: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and ourshipping agent have full experienced in safe transportation. We have exported to 100 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q3: How to install and run the machine?
A:Our worker will install all the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine 95% customers can learn by themselves.
Q4: How can i do if the machine goes wrong?
A: lf confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we
can to solve it for you.
