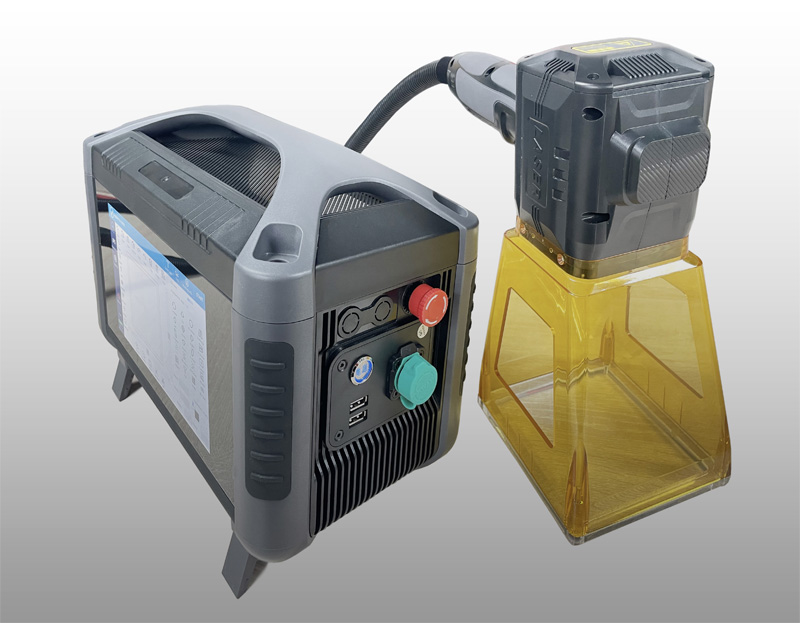

Handheld fiber laser engraver
This lightweight fiber laser machine is portable and easy to use and move around, fast engraving speed makes your marking requirement finished in time, fiber laser machine has wide rage applications, it is widely used in various industries: medical industry, electronic industry,food industry,plastic industry, hardware industry, mechanical parts,clothing leather,etc.
Video shows:
Machine's features:
1. Portable and lightweight
This mini fiber laser marking machine is easy to carry outside, easy to operate, compact size makes engrave easily.
2. Fast engraving speed
This machine has class1 laser beam,it won't do harm to human's body, equipped with high speed galvo laser scanner, so its engraving speed is very fast,save a lot of working time.
3. Less maintenance cost
The compact size reduces transport cost, package cost, this machine with high quality, so it seldom to maintain, less maintenance cost.
Parameter
Laser source | Fiber |
Output power | 18W,25W |
Marking range | 70x70mm,100x100mm(optional) |
Deflection seismoscope
| High precision,two dimension,scanning system |
Laser wavelength | 1064nm |
Focus lens | 130mm |
Marking speed | ＜7000mm/s |
Master control | Integrated motherboard, 8 inch capacitance full fit screen |
Operating system | Linux system |
Marking line type | Dot-matrix and vector all-in-one machine |
Line width | 0.03mm |
Repetitive positioning accuracy | 0.01mm |
Positioning method | Red light positioning and focusing |
Number of engraved character line | Any line within the valid marking range |
Printing speed | 800 characters(related to material and painting content) |
Font | Chinese and English,digital, traditional Chinese and other standard font. |
File format | BMP,DXF,HPGL,JPEG,PLT |
Bar code | CODE39,CODE128,CODE126.QR |
Source | 110V/120V, AC.lithium cell (216wh)
|
Overall power consumption | 145-250w |

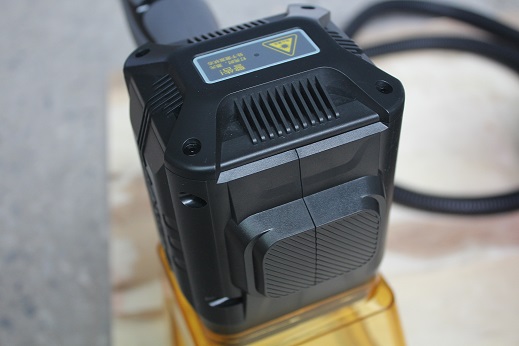

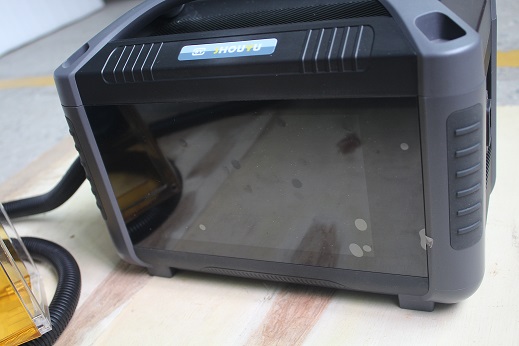

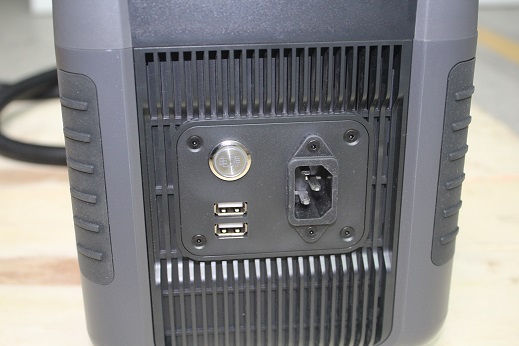

Perfect Product Details:
Hidden field lens design reduce accident touch,protective field lens,hidden grille tunnels,reduce wind noise,hide and protective hardware,stable host handle can stand up to force 80kg,utility focal length spacers,overcome the problem of item size.

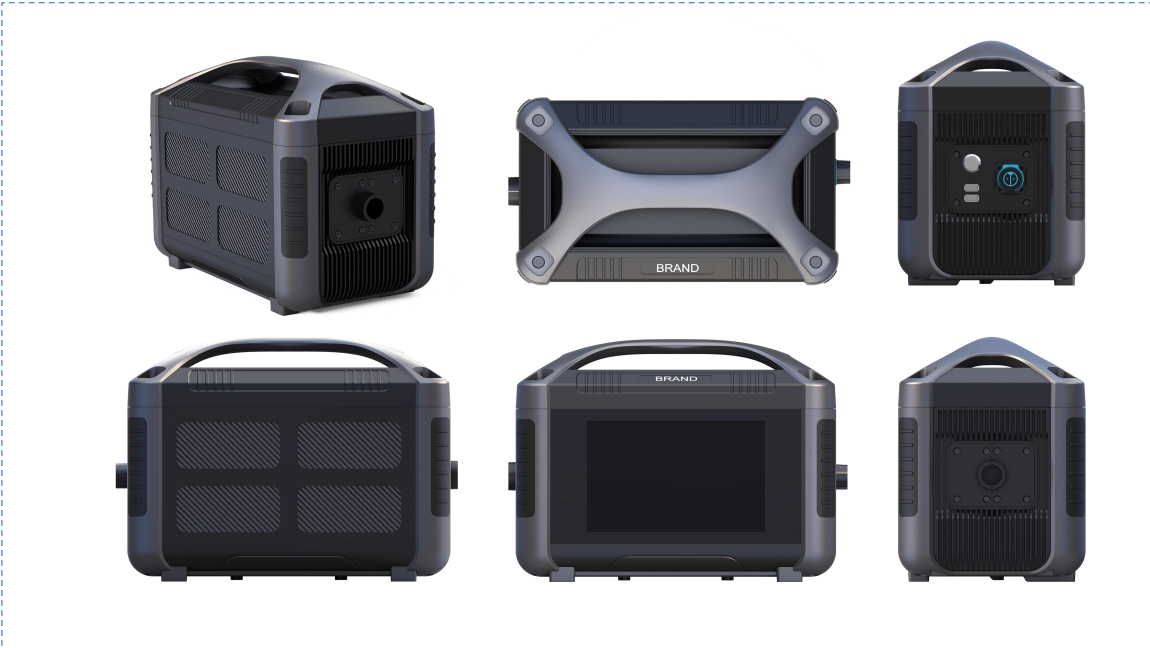

Product shows:
Applications of fiber laser engraver:
The laser marking machine has wide applications and is primarily employed for marking logo, words, brand, date, series number, batch number, sign, drawing, photo, QR code, etc. on the surface of metal & non-metal material. The range of metals include stainless steel, alloy, metal plate, aluminum, silver, gold, etc. and the non-metals include plastic: engineering plastic and hard plastic, etc. It is also used in electronic equipment, such as integrated circuits, mobile communications, precision instruments, glass watches and clocks, computer keyboards.
Benifits of using fiber laser machine:
This fiber laser marking machine has versatile functions and it has a long lifetime up to 100,000 hours, the small size of the machine enables it to consume less power for a required operation with the power consumption. It has a very high efficiency for photoelectric conversion producing negligible faults in the operation. The laser marking machine has compact structure and high system integration. The fact that it is compatible with software like CorelDraw and AutoCAD makes it the machinery of utmost importance in industries. It also supports different extensions, such as- PLT, PCX, DXF, BMP, etc. and directly uses SHX and TTF fonts.
The fiber laser marking machine consists of a superior laser beam that has uniform power density. It is highly effective on reflective materials, like- aluminum, copper, etc. The laser marking machine is capable of working up to 100,000 hours ensuring high durability. The small size also enables it to consume a lesser amount of power.
Samples
Shipment and package
Certificate
