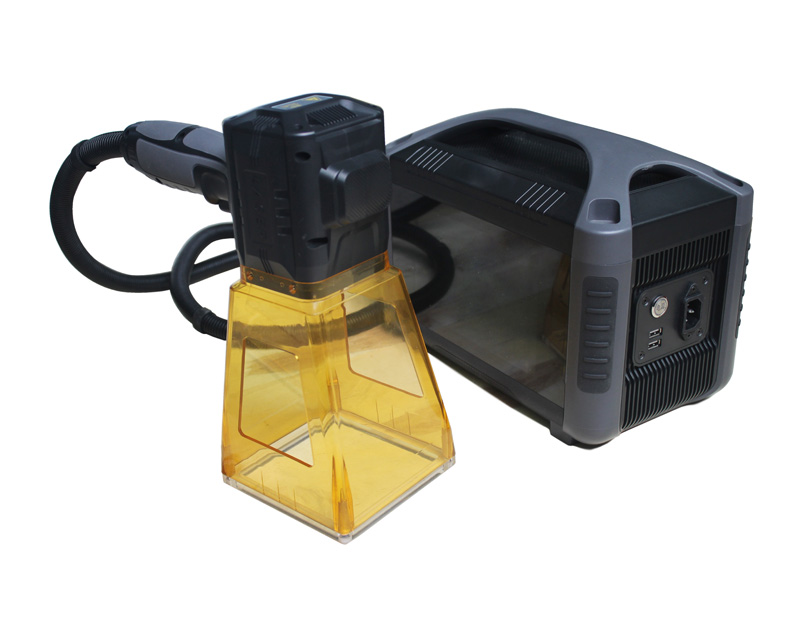

Handheld Laser Marking Machine
Hand-held laser marking machine is specially designed to solve various marking difficulties. Advanced laser technology is used to realize fast focusing and high-precision marking.
With highly integrated design, the body is small and light, and the battery is detachable, which can provide unlimited endurance and improve work efficiency. Hand-held laser equipment has a wider range of use and higher flexibility, which can meet the daily needs of customers.
Handheld Laser Marking Machine
Product Introduce
The ultimate tool for versatile and efficient marking solutions. This compact and portable machine is designed to provide you with the flexibility to mark any surface with speed, accuracy, and precision.
The Handheld Laser Marking Machine features a powerful laser beam that creates permanent marks on a vast range of materials, including metal, plastic, leather, wood, and more. Whether you need to mark a logo, barcode, serial number, or any other design, this machine delivers crisp and clear markings that are resistant to wear and tear.
The machine's programmable software allows customization of the marking settings according to the material and shape of your workpiece. You can adjust the laser intensity, speed, and frequency to achieve the desired results with ease. The laser marking process is non-contact, eliminating the risk of damage to the workpiece, and there is no need for additional fixturing or tooling.
The Handheld Laser Marking Machine features a lightweight and ergonomic design, making it easy to handle and use for extended periods. The machine comes with a user-friendly interface and a large touchscreen display that allows you to navigate through the marking settings and programs with ease.
The Handheld Laser Marking Machine is the ideal marking solution for various industries, including manufacturing, automotive, electrical, medical, and more. Its versatility, accuracy, and efficiency make it the perfect tool for product identification, traceability, and quality control.
In conclusion, the Handheld Laser Marking Machine is a must-have tool for businesses that require fast and accurate marking solutions. Contact us today to learn more about our laser marking machines and how they can benefit your business.
Applicable material:
It is applicable to all kinds of metal materials, such as stainless steel, aluminum, alloy, iron,gold, silver, brass,copper, steel, etc., and also to some non-metallic materials, such as paper board, plastic(ABS,PVC,PU..), glass, etc. The range of application materials is wide, which can be used for trademark coding, bar code marking and other personalized customization.
Applicable industries
Hand-held laser marking machine is widely used in various industries: electronic products , medical products, Kitchen and bathroom, gift, food&packaging, plastic products, toy, hardware industry, aerospace, mechanical parts, clothing leather, etc
Parameters
Parameter table | |
laser source | Fiber generator |
Output power | 18W、25W |
Marking range | 70x70mm、 100x 100mm ( O ptional ) |
Deflection seismoscope | High - precision two -dimension scanning system |
Laser wavelength | 1064mm |
Focus lens | 130mm |
Marking speed | <7000mm/s |
Master control | Integrated motherboard, 8-inch capacitance full -fit screen |
Operating system | Linux system |
Marking line type | Dot -matrix and vector all-in-one machine |
Line width | 0.03mm |
Repetitive positioning accuracy | 0.01mm |
Positioning method | Red light positioning and focusing |
Number of engraved character lines | Any line within the valid marking range |
Printing speed | 800 characters(related to material and printing content) |
Font | C hinese and E nglish, digital, traditional Chinese and other standard font |
File format | BMP、 DXF、 HPGL、JPEG、 PLT |
Barcode | CODE39、CODE128、CODE126. QR |
Source | 110V/220V AC. lithium cell(216wh) |
Overall power consumption | 145 -250W |
Operating temperature of the whole machine | 0 -40° |
Operating Weight | 6 ~6.8KG |

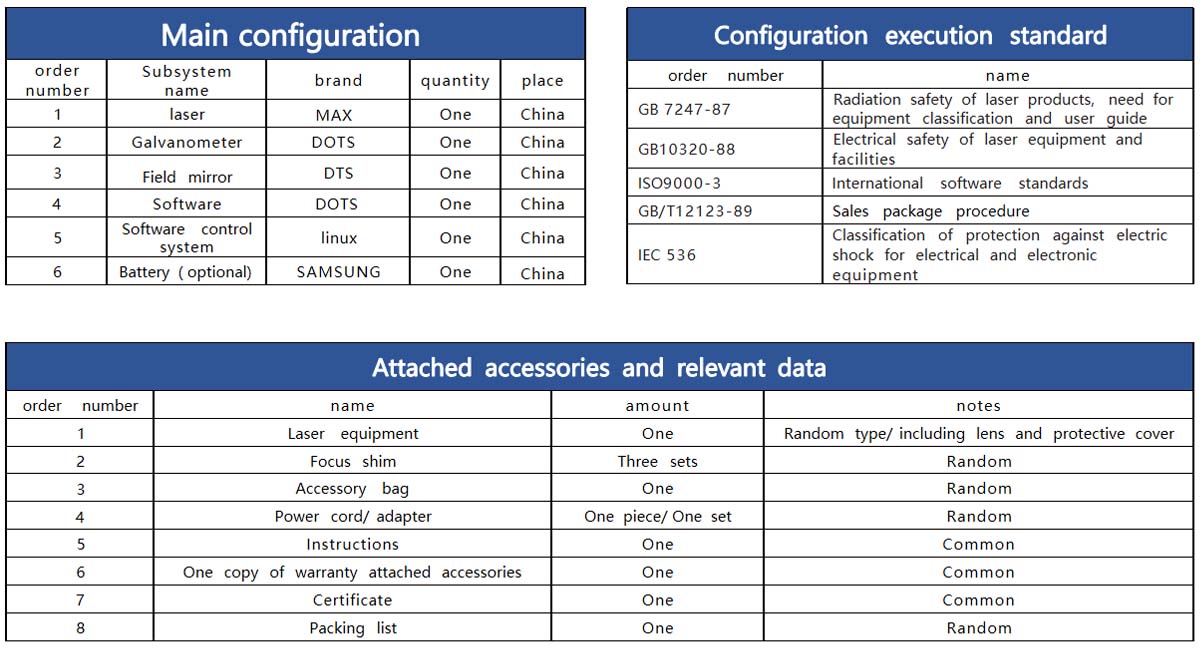

Main configurations

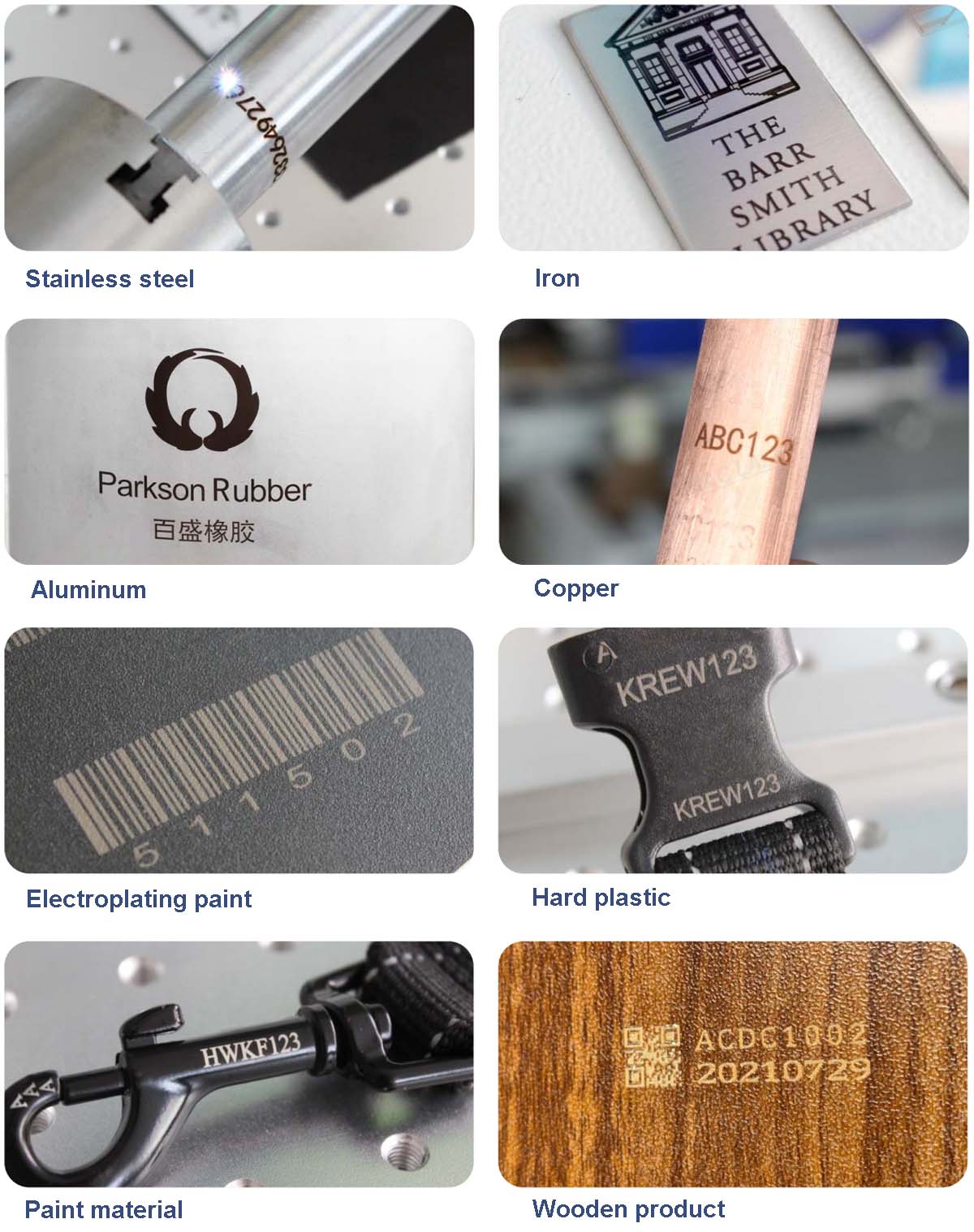

Sample show
Product overview
Hand-held laser marking machine is specially designed to solve various marking difficulties. Advanced laser technology is used to realize fast focusing and high-precision marking.With highly integrated design, the body is small and light, and the battery is detachable, which can provide unlimited endurance and improve work efficiency. Hand-held laser equipment has a wider range of use and higher flexibility, which can meet the daily needs of customers.

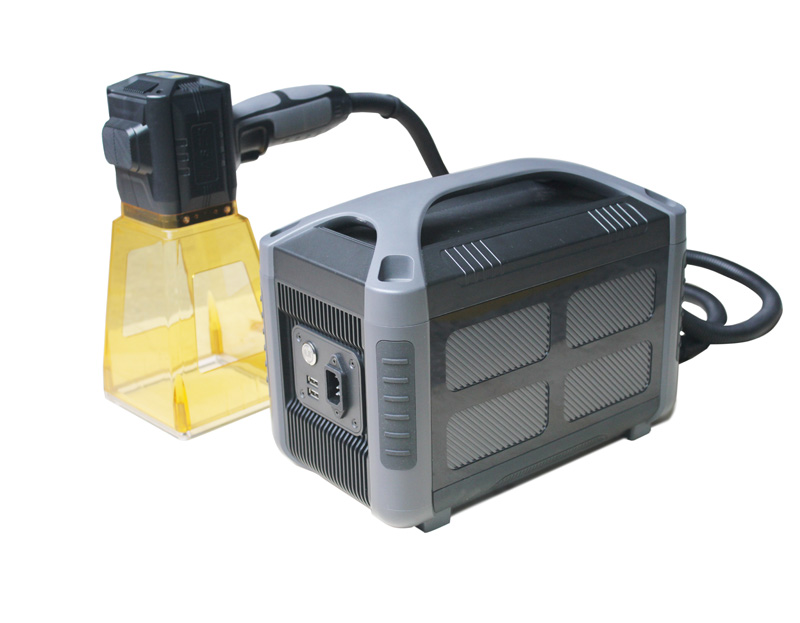

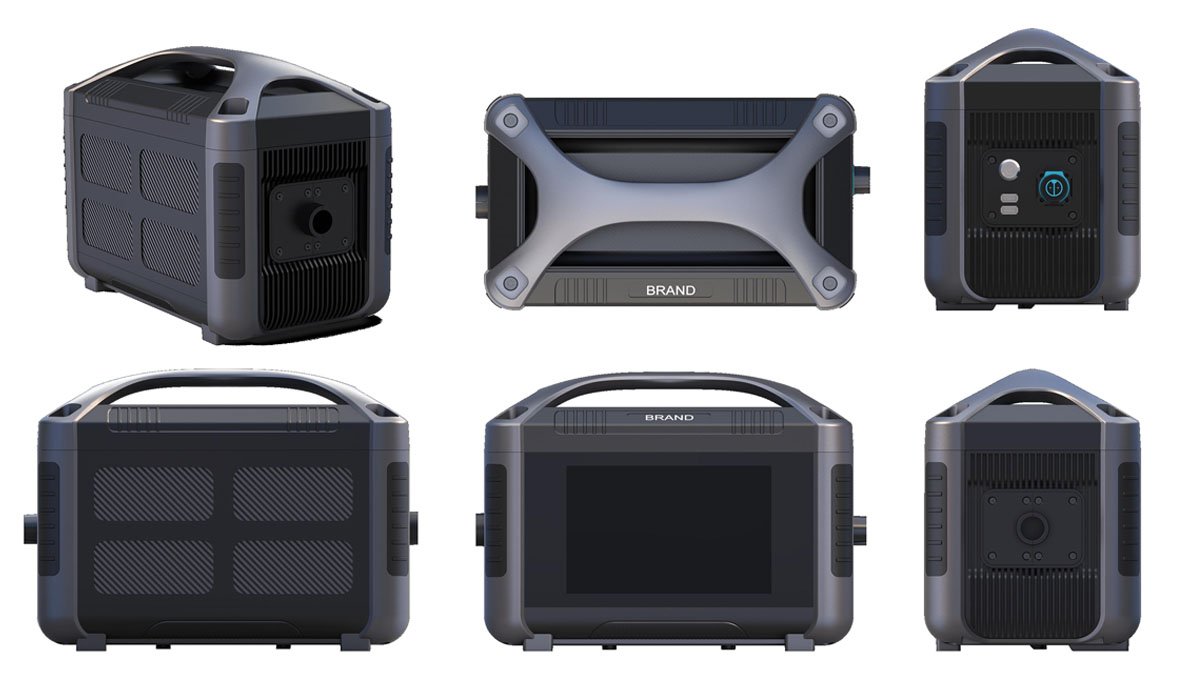

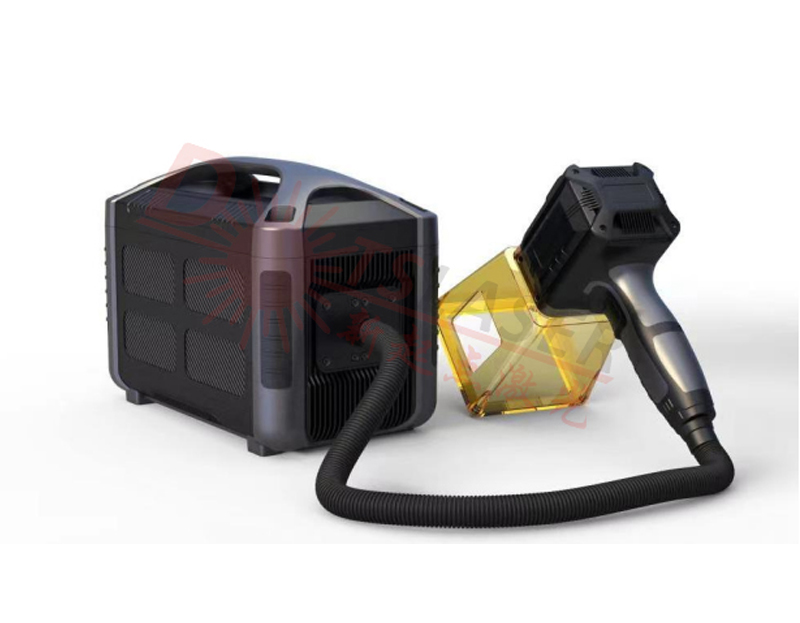

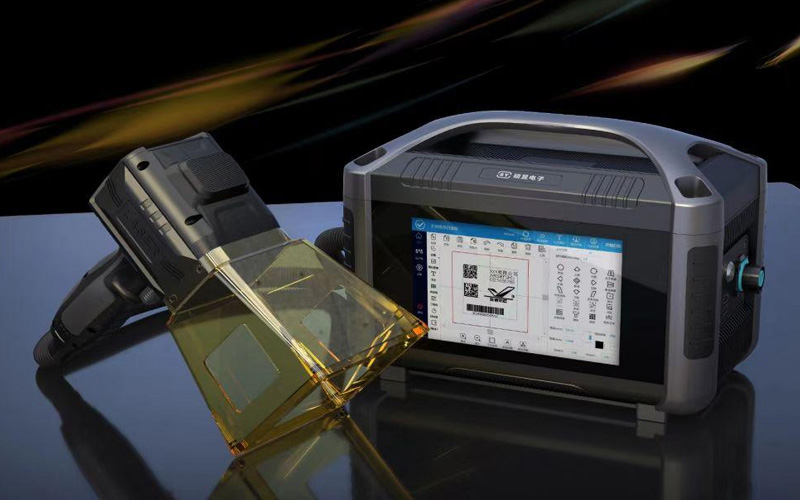

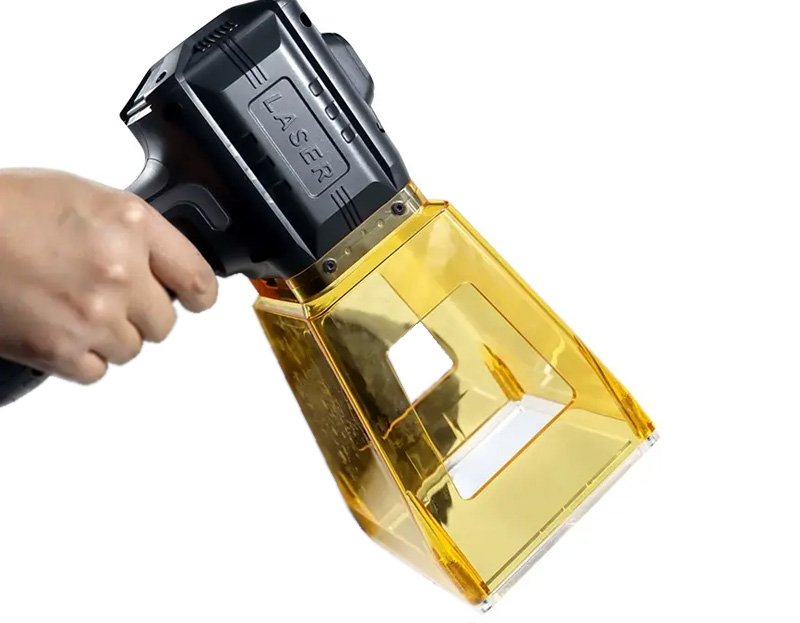

Display of the Handheld Laser Marking Machine

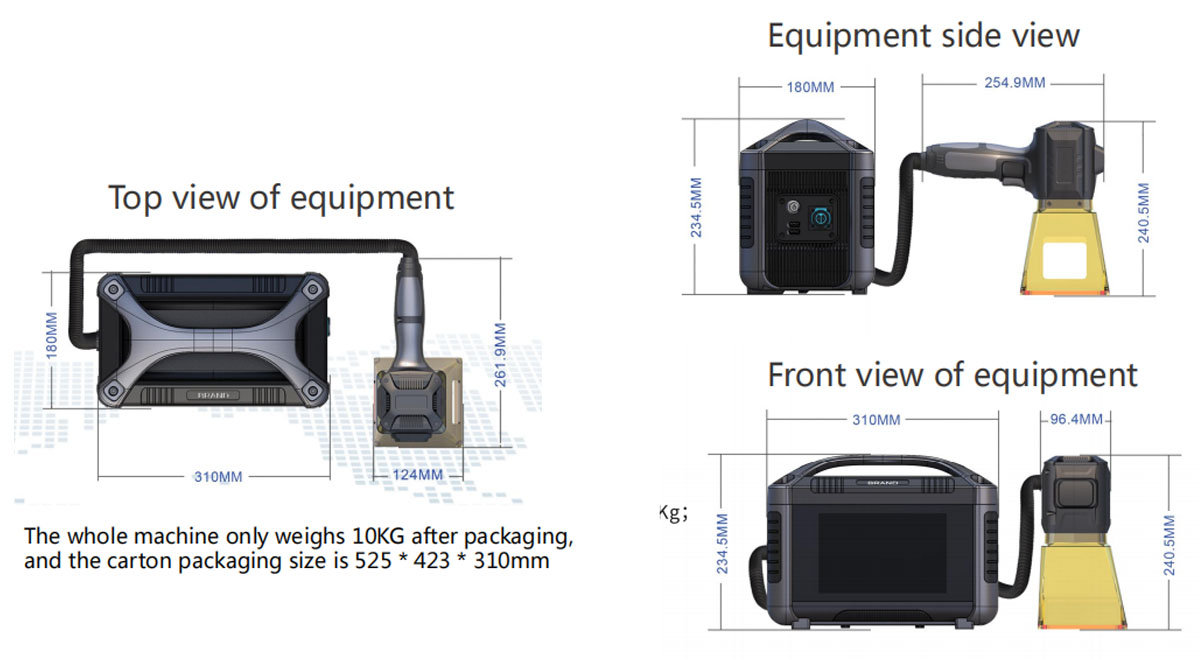

Size of the Handheld Laser Marking Machine
Product Usage
Hand-held laser marking machine uses laser beam to make permanent marks on the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "engrave" the trace through the chemical and physical changes of the surface material caused by the light energy, or to burn part of the material through the light energy to display the required etching patterns and characters.

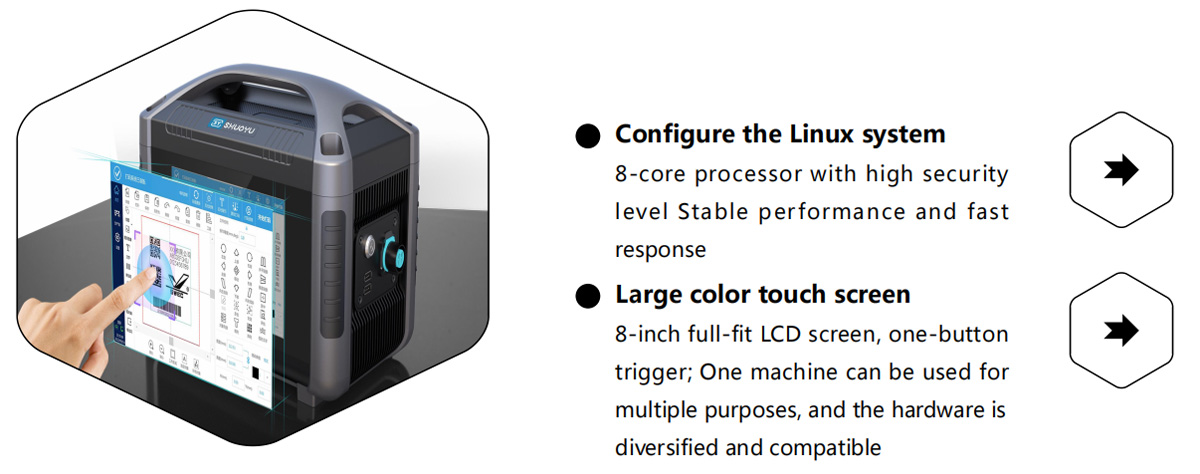

Software features

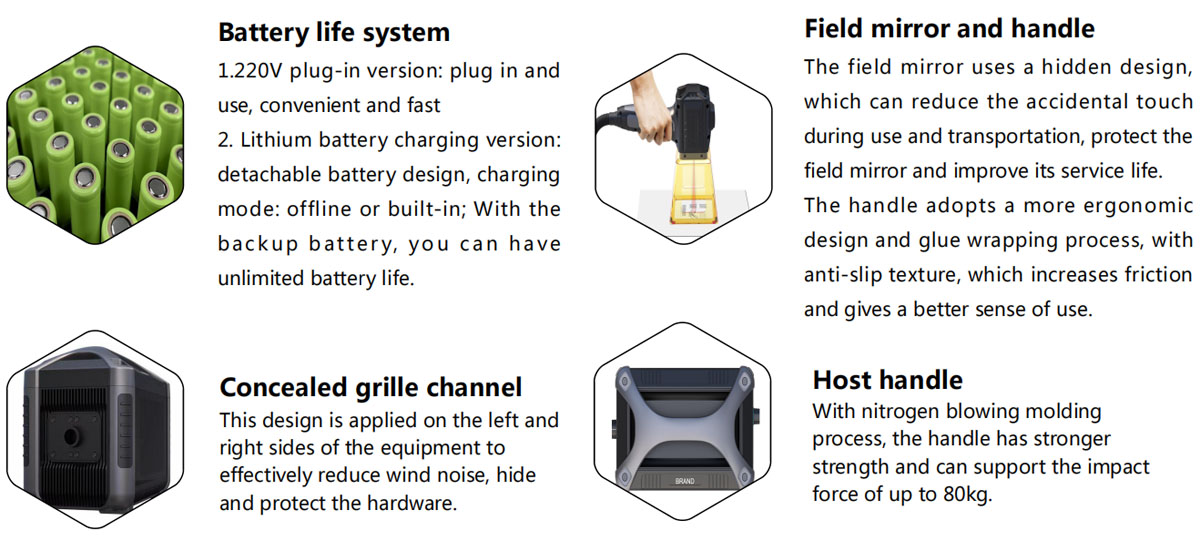

Hardware features
Advantages of Handheld Laser Marking Machine
Market advantage
Compared with the bulky traditional marking machine, the hand-held laser marking machine is smaller in size and more portable and flexible in use. A iming at the problem of the endurance of the handheld laser marking machine on the market, the technical reform has been made. T he new generation of handheld laser marking machine has two endurance modes:
1.220V plug-in version: plug in and use, convenient and fast
2. Charging version: detachable battery design, charging mode: offline or built-in; With the backup battery, you can have unlimited battery life.

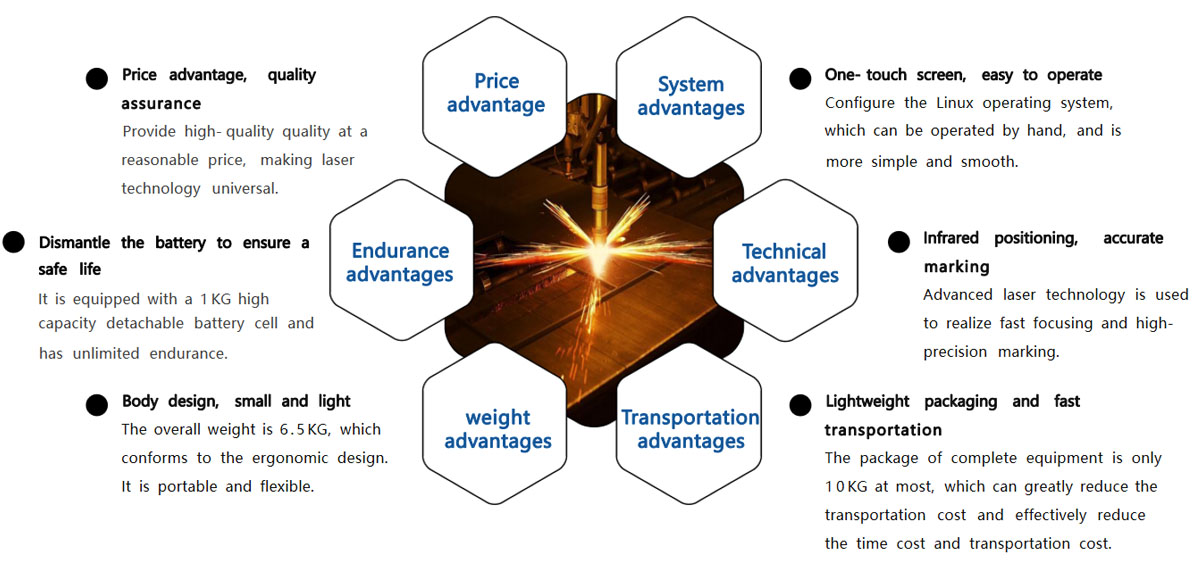

Six performance advantages
Quality advantage
