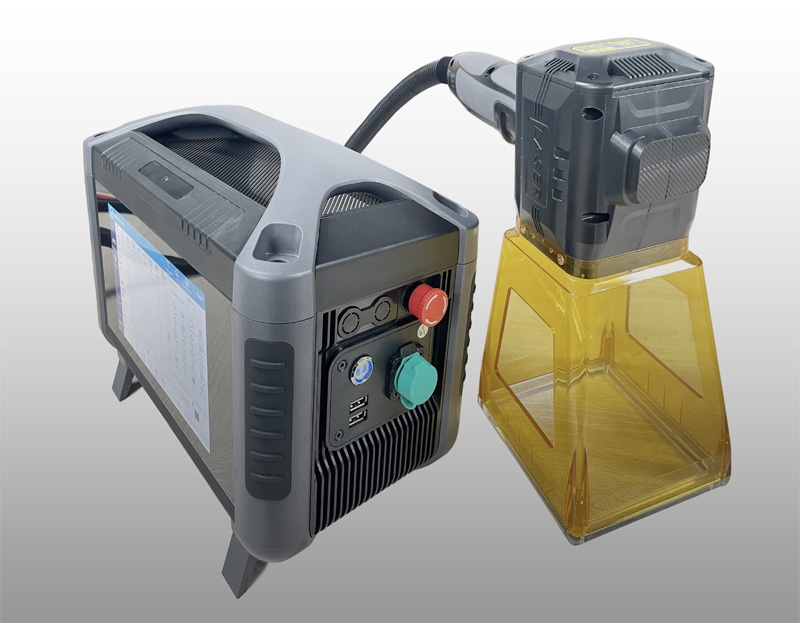

Portable handheld laser machine
Hand-held laser marking machine use salaser beam to make permanent marks on the surface of various materials.The effect of marking is to expose the deep material through the evaporation of the surface material,or to "carve" the trace through the chemical and physical changes of the surface material caused b y the light energy,or to burn part of the material through the light energy to display the required etching patterns and characters.
Video shows:
Machine's features:
1. Portable and flexible
Handheld laser marking machine is smaller in size and flexible in use. Lightweight machine is easy to move and easy to operate.
2. High quality battery
It is equipped with a 1KG high capacity detachable battery cell and has unlimited endurance.
3. Infrared positioning, accurate marking
Advanced laser technology is used to realize fast focusing and high- precision marking.
4. Price advantage,quality assurance
Provide high-quality quality at a reasonable price,making laser technology universal.
Parameter
Laser source | Fiber |
Output power | 18W,25W |
Marking range | 70x70mm,100x100mm(optional) |
Deflection seismoscope
| High precision,two dimension,scanning system |
Laser wavelength | 1064nm |
Focus lens | 130mm |
Marking speed | ＜7000mm/s |
Master control | Integrated motherboard, 8 inch capacitance full fit screen |
Operating system | Linux system |
Marking line type | Dot-matrix and vector all-in-one machine |
Line width | 0.03mm |
Repetitive positioning accuracy | 0.01mm |
Positioning method | Red light positioning and focusing |
Number of engraved character line | Any line within the valid marking range |
Printing speed | 800 characters(related to material and painting content) |
Font | Chinese and English,digital, traditional Chinese and other standard font. |
File format | BMP,DXF,HPGL,JPEG,PLT |
Bar code | CODE39,CODE128,CODE126.QR |
Source | 110v/120v, AC.lithium cell(216wh)
|
Overall power consumption | 145-250w |
Operating temperature of whole machine | 0~40° |
Operating weight | 6~6.8KG |
Hardware details
Battery life system
1. 220V plug-inversion: plug in and use,convenient and fast.
2. Lithium battery charging version: detachable battery design, charging mode: offline or built-in; With the backup battery,you can have unlimited battery life.

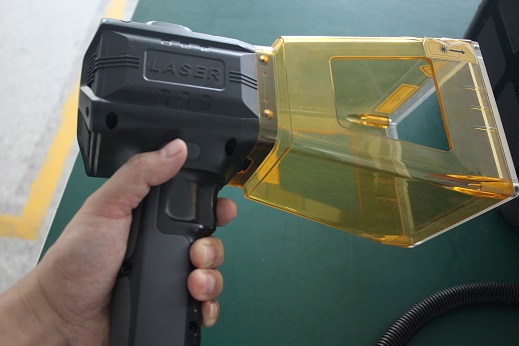

Field mirror and handle
The field mirror uses a hidden design, which can reduce the accidental touch during use and transportation, protect the field mirror and improve its service life. The handle adopts a more ergonomic design and glue wrapping process, with anti-slip texture, which increases friction and gives a better sense of use.
Concealed grille channel
This design is applied on the left and right sides of the equipment to effectively reduce wind noise, hide and protect the hardware.

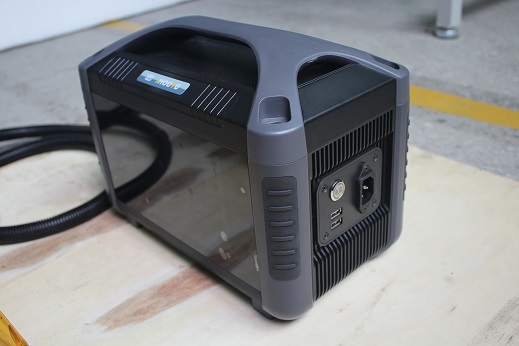

Host handle
With nitrogen blowing molding process,the handle has stronger strength and can support the impact force of up to 80 kg.
Third-party authoritative certification:
Application industry
▼Hand-held laser marking machine is widely used in various industries: medical industry, electronic industry, food industry, plastic industry, hardware industry, mechanical parts, clothing leather, etc.
Applicable material
Fiber laser machine is more suitable for marking metal materials, it is applicable to all kinds of metal materials, such as gold ,silver, copper, steel, etc., and also to some non-metallic materials,such as paper, plastic, glass, etc. The range of application materials is wide, which can be used for trademark coding, bar code marking and other personalized customization.
Shipment and package
Certificate
