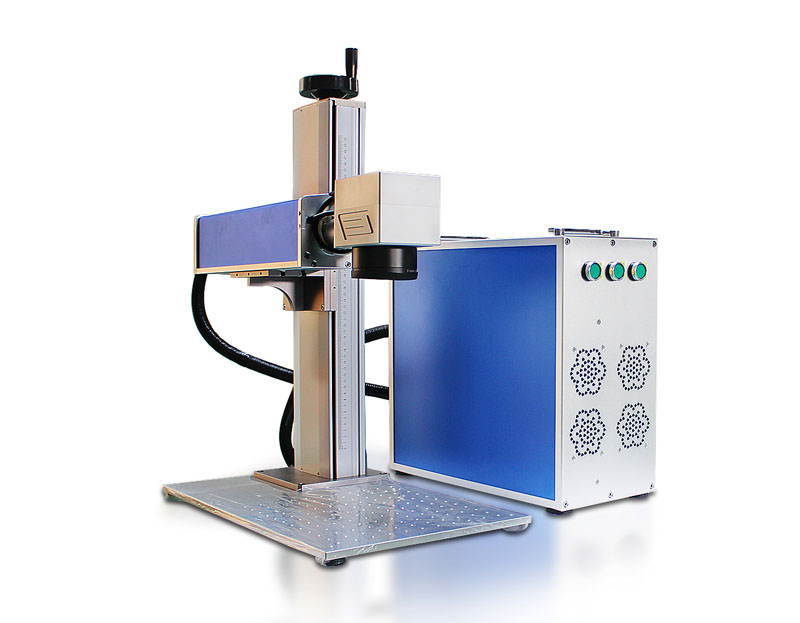

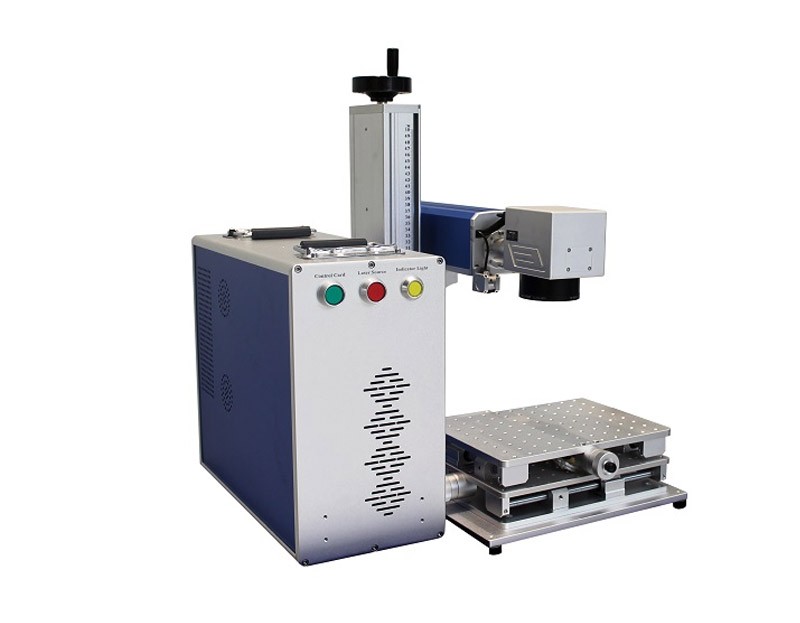

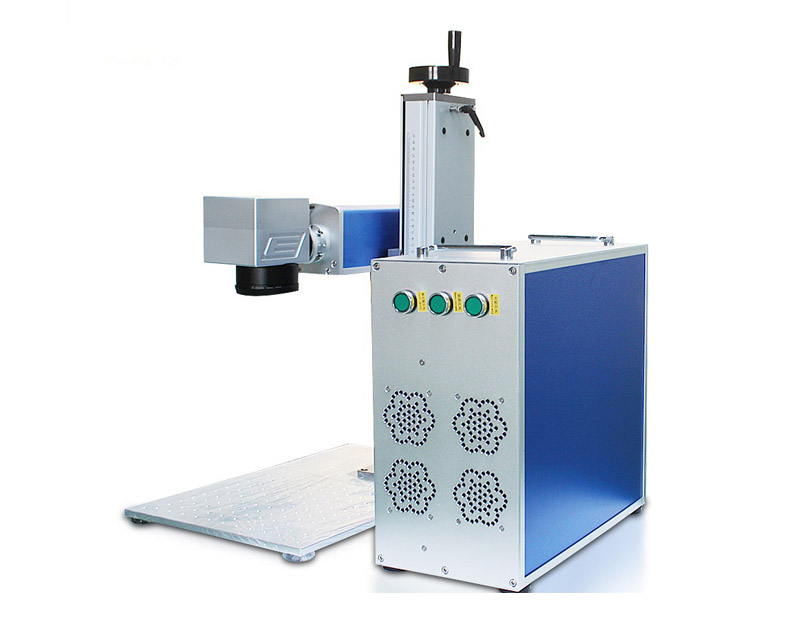

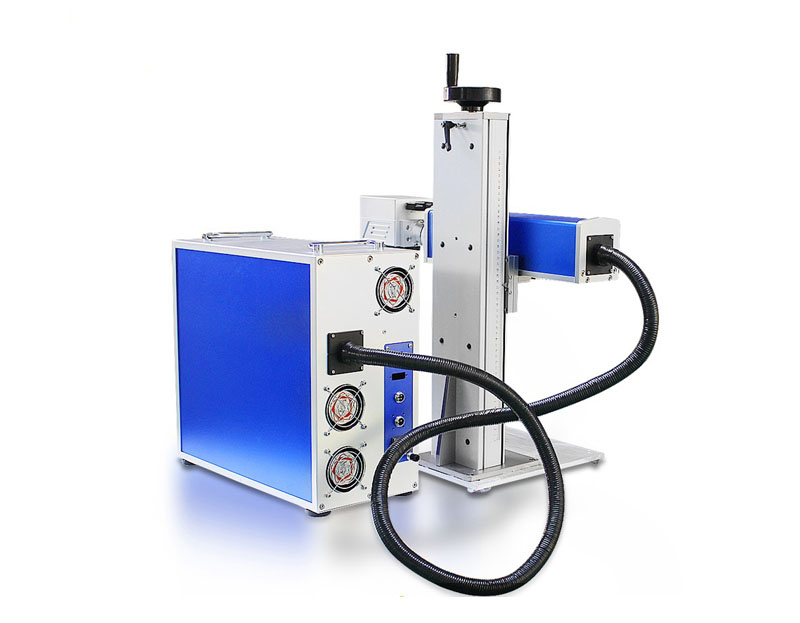

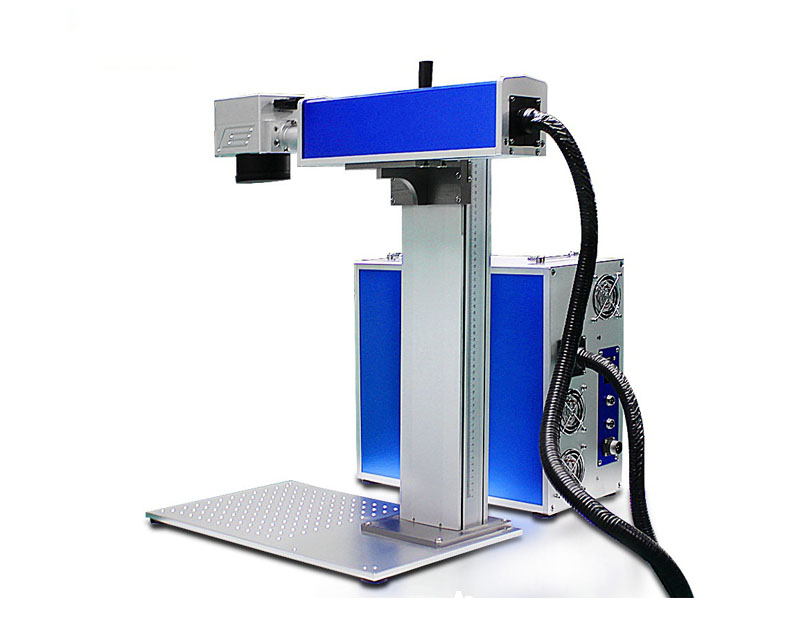

Split Fiber Laser Engraving Machine
Application: almost all metal materials and non-metal material, such as steel, carbon steel, stainless steel, iron, copper,brass,silver, aluminum,PVC,ABS,PC,etc.
Video
Product Details
Advantages/characteristics:
1. Fast speed, high efficiency
2. Processing area is optional.
3. No consumable parts, only power supply is ok.
4. Very economical machine.
5. Easy to learn and operate.
6. Stable and free maintenance.
7. Laser source is optional for different work with different power and result.
8. Easy to move around.
9. Long lifetime, 100,000hrs life and 24hrs work continuously.
10. Low working environment requirement.
Parameter:
| Laser power | 20W/30W/50W/60W/100W |
| Laser lifespan | 100,000 hours |
| Laser beam | 1064nm |
| Optical quality | ㎡ ≤ 1.5 |
| Repeat frequency | 30khz-60khz |
| Marking speed | ≤8000mm/s |
| Marking range | 100mm*100mm(standard), |
| Min. Line | 0.01mm |
| Repeat precision | ±0.001mm |
| Power consumption | ≤900W |
| Voltage | Ac220v 50Hz 5A |
| Cooling mode | Air cooling |
| Supported characters | Any fonts downloaded on computer |
| Supported format | PLT,DXF、BMP、JPG、PNG、TIF、PCX、GIF、 etc. |
| Supported Bar code | CODE39,EAN, CODE128 ,DataMatrix,PDF417 etc. |

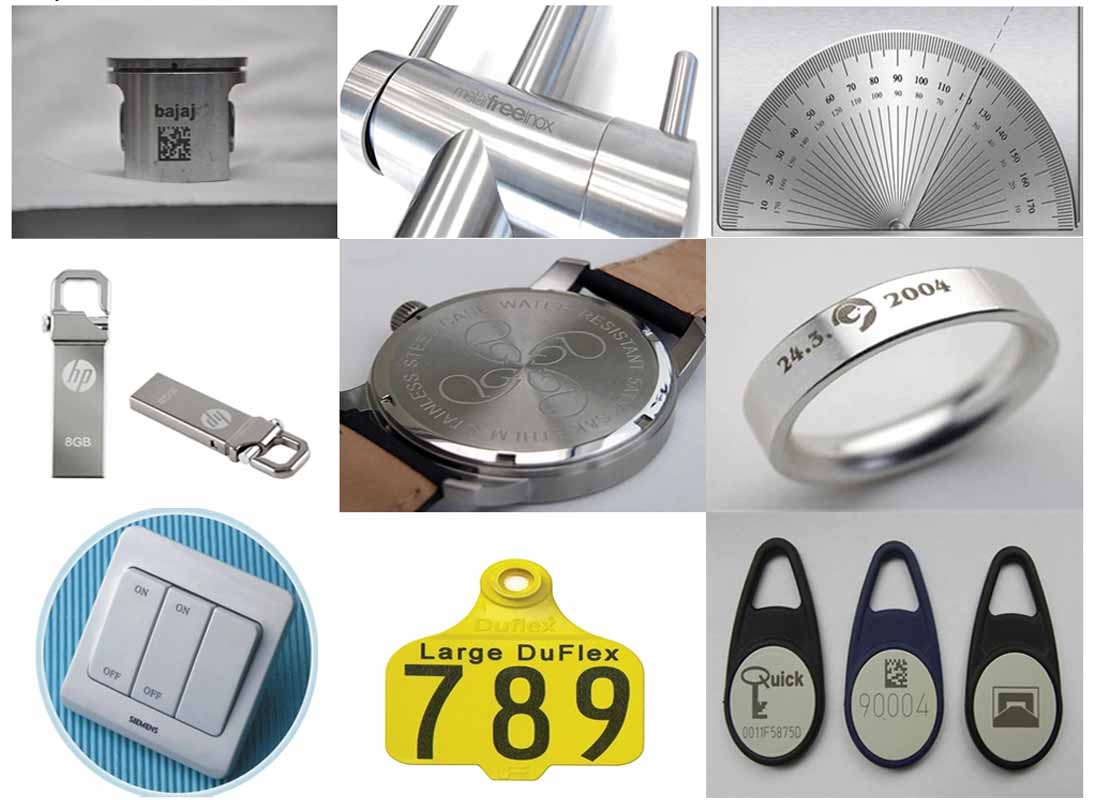

Samples:
Certificate
