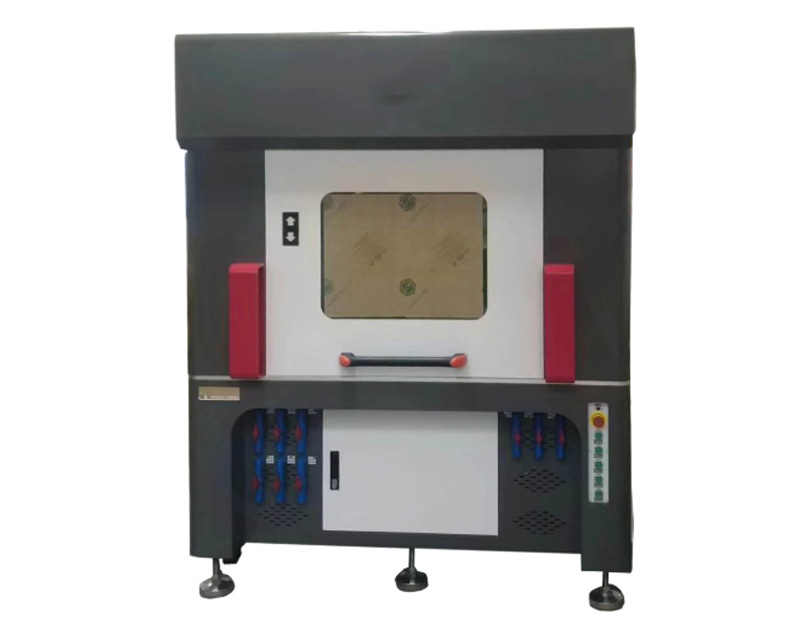

Super large format laser marking machine
Large format fiber laser marking machine is an advanced industrial tool designed for precise and efficient marking, engraving, or etching of various materials using fiber laser technology. This specialized machine offers a larger working area compared to standard laser marking machines, allowing it to handle bigger workpieces or multiple items in a single setup. The laser etching system adopts a gantry structure, ensuring stable operation. The large working platform not only accommodates the overall processing of large materials but also supports multi-material splicing for marking.
Video shows:
Machine's features
1. Precise marking

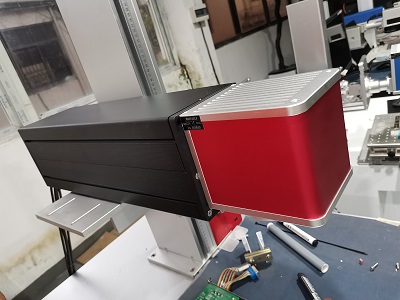

Dotslaser adopts high speed scanning galvanometer system to realize fast speed marking and high precision marking, modifies former requirements, adopts more excellent optical system, more high speed driving system, more powerful control system, compared with common scan head, Dotslaser's more efficient and better cost performance.
2. Reasonable machine's design

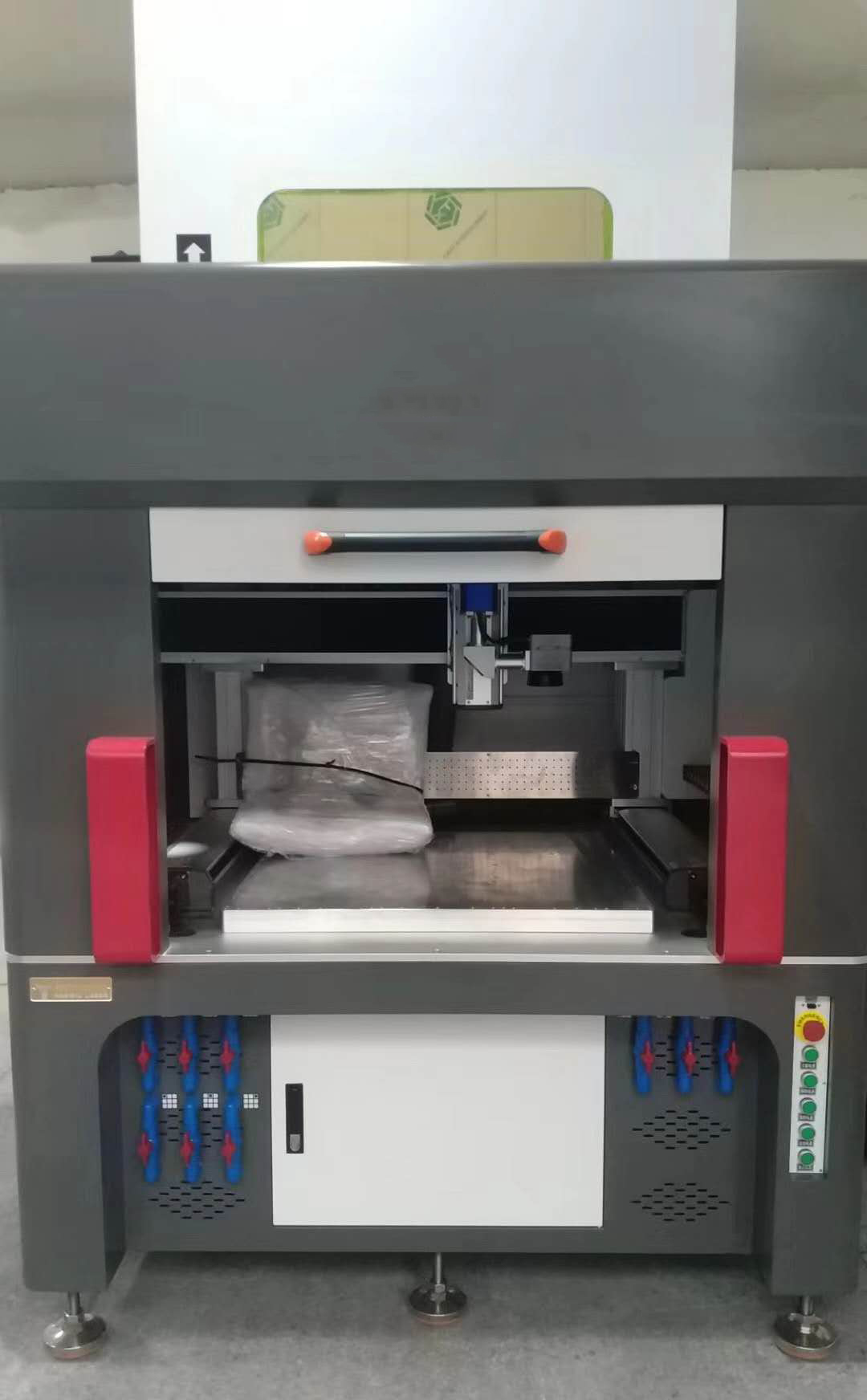

Outer cabinet adopts full metal sheet to assembled, integrated design, after upgrating room usage more reasonable, detachable door convenient for mass projects processing and expand automatic equipment.
3. Control handle, auto focus
Auto fccusing,adjusting distance correctly and quickly, saves processing time, convenient to use.
4. Safe operation
Safe protective glass ensures operator's health, it can helpfully avoid laser beams damages operator's eyes.
Parameter
Name | Super large format laser marking machine |
Laser type | Fiber laser |
Repeat accuracy | 1-400khz |
Mode of operation | Continuous wave |
Applicable material | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood |
Core component | Laser source |
Feature | Deep marking |
Working temp
| 0~40℃
|
Applicable industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |
Warranty | 1 year |
System language | CN/EN/ES/PT Other Support Customization |
Laser source parameter
| Laser type | Fiber laser source |
| Laser power | 50W,100W,150W,200W,250W |
| Wavelength | 1064nm |
| Marking depth | ≤1.2mm |
| Marking speed | ≤12000mm/s |
| Repeat accuracy | ±0.003mm |
| Laser source lifetime | 100000 hours |
| Cooling mode | Air |
| Laser beam quality | M2＜1.5 |
| Voltage | 380V/50HZ/60HZ |
| Marking area | 1000x1000mm, 1300x1300mm,1300x2500mm, 2500x6000mm (optional) |
Samples
Laser sandblasting VS traditional sandblasting
Traditional sandblasting | Laser sandblasting | |
Processing features | Contact processing, multiple techniques | Non-contact processing, only once can complete |
Processing efficiency | Slow | Fast |
Processing quality | Sandblasting non uniformity | Sandblasting uniformity |
Consumable cost | Abrasives, chemically corrosive liquids | No consumables |
Environmental pollution | Chemical waste | Environmental |
Certificate
