1500W fiber laser cutting machine
We are excited to introduce our latest addition to our line of engraving machines - the 1500W fiber laser engraving machine! This state-of-the-art machine is a significant improvement from its predecessors, providing faster and more precise engraving capabilities with its high-powered 1500W laser.
Video laser cutting process displays
Machine's features

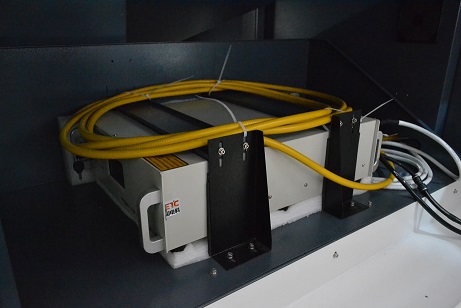

1. Dotslaser adopts water cooling, compact design machine's appearance, electro-optical conversion efficiency had reached up to 35%, free maintenance, which is superior to other laser sources of the same power, adopts international standard QBH delivery and RS232 serial port control.

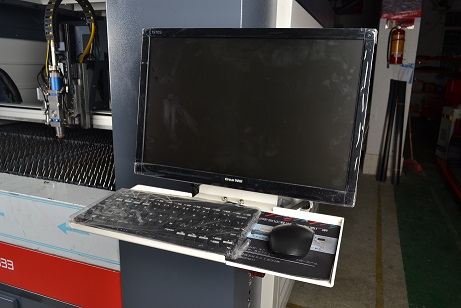

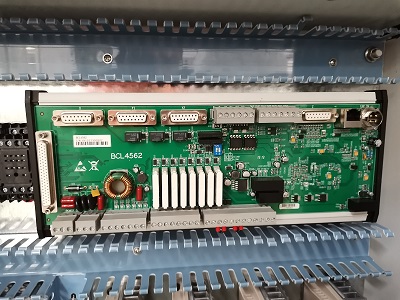

2. Integrated capacitive height adjuster allows for non-contact processing. The system features intelligent path optimization and intelligent control card that prompts machine status, conserves energy, and reduces noise. Additionally, it has a layer automatic blowing control, worktime estimation, position adjustment, and cutting compensation. The machine is easy to operate, and even new workers can become proficient in basic operations after 2-3 days of training.
3. The machine features an integrated capacitive height adjuster and non-contact processing, as well as a Z-axis servo system. It offers a steady and fast automatic cutting height adjustment function. The machine also includes various nozzle designs to match different material thicknesses. In addition, the lens and nozzle are coaxially adjusted in the X-Y direction for accurate cutting head focal length adjustments of up to 0.01mm

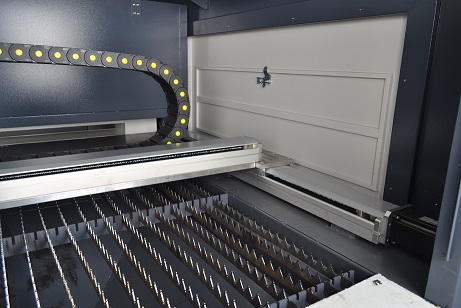

4. The bed is made of rectangular tube segments that are welded together, and the module mounting position is finished with machining to achieve an accuracy level of 0.02mm. The bed has the advantages of high strength, stability, and tensile strength, which ensures that it can be used for 20 years without any deformation.
5. Dial indicator guide rail
6. The integrated modular design, stable transmission, and anti-rust design work together to decrease the machine's breakdown rate.
Parameter
Device model | DS-1500 |
Laser type | Fiber Laser Cutter |
Laser working medium | Fiber |
Laser wavelength | 1060-1080nm |
Rated output power | 1500w |
X-axis travel | 1500mm |
Y-axis travel | 3000mm |
Z-axis travel | 200mm |
Effective cutting range of flat plate | 1500*3000mm |
positioning accuracy | ±0.02mm/m |
Repeatability | ±0.02mm/m |
Maximum empty travel speed | 100m/min |
Power rating | 380V 50Hz |

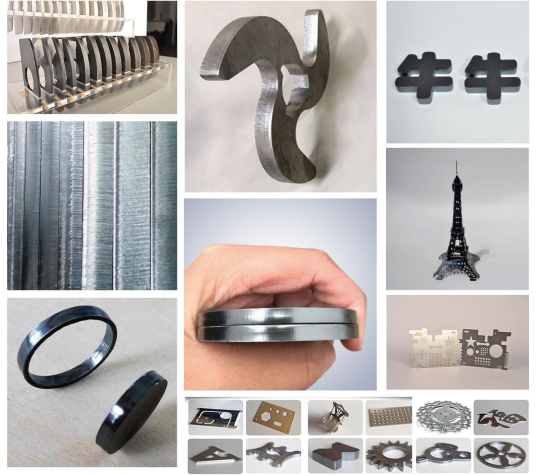

Samples display

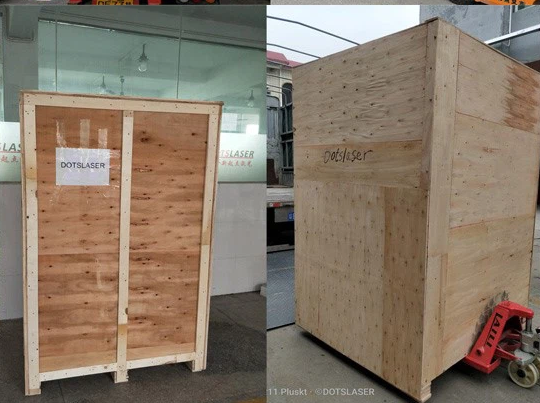

Laser cutter- shipment and package record
Dotslaser company profile:
DOTSLASER has 12 years experience in modern laser machines market, we are an expert in laser machines building, all systems are researched, developed, manufactured with a higher international standard.
DOTSLASER mainly manufactur fiber laser marking machine, co2 laser marking machine, uv laser engraver, fiber laser cutting machine, high precision laser cutting machine, fiber laser welding machine, high precision cutting machine.
Applicable industries: mobile phones and accessories, electronics, automobiles and accessories, medical equipment, hardware, watches, plastics, jewelry, advertising, cosmetics, sanitary ware, building materials; craft gifts, wood, clothing, luggage, shoe materials, Greeting cards, pharmaceutical packaging, ceramics, marble, flexible circuit boards, glasses, jewelry, pipes and other industries.
Certificate
