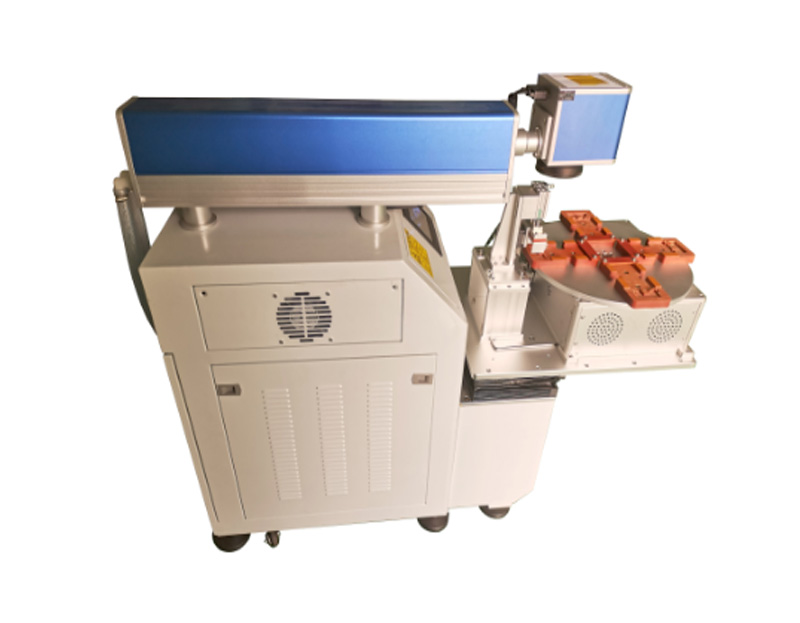

Laser welding for car accessories
Laser welding machine is an innovative and advanced technology that has revolutionized the automotive industry. This cutting-edge machine has become an indispensable tool in the manufacturing process of car accessories due to its numerous advantages. Precise welding is one of the obvious advantages, beautiful and smooth welding seam has attract many car manufacturers, welding accessories need precise and firm welding effect, Dotslaser machine offers the best welding experience for you.
Video shows:
Machine's features:
● 1. Adopt imported ceramic concentrator with high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life.
● 2. Equipped with 1P special chiller, it can meet the requirements of long-term and high-power welding with better stability, water chiller can well control the welding heat, it won't causes overheat situation, precise welding makes materials keep a good welding effect for a long time.
● 3. Special welding control system, high stability, with all Chinese teaching programming, LCD touch screen super control, easy to understand.
● 4. Strong performance, can be combined with assembly line, photoelectric detector, pneumatic fixture and other devices for automatic processing.
Parameter
Model | DS-LW200/DS-LW400/DS-LW600 |
Wavelength | 1064nm |
Laser power | 200W/400W/600W |
Pulse width | 0.1-20ms |
Laser welding frequency | 1-100Hz |
Max single pulse energy | 90J/110J/130J |
Focal spot size adjustable range | 0.2-2mm |
Control system | Micro-computer |
Cooling system | 1p |
Rated power consumption | 8KW/12KW/16KW |
Positioning accuracy | ±0.05mm |
Laser model | Nd:YAG pulse |
Laser cooling | water chiller |
Positioning | Red indicator |
Power supply | 380v ± 10% /50Hz/20A; 380v ± 10% /50Hz/40A; 380v ± 10% /50Hz/50A; |
Dimensions | Main body:1500x650x1200mm Chiller:540x650x780mm |
Products applications:
Galvanometer laser welding machine is mainly applied in areas of high speed welding, continous welding and seal welding of relative products including mobile shield, metal cellphone enclosure, cellphone battery, phone shell, MP3, MP4 shells, micro motor, jewelry, circuit, sensors, watch, precise machinery, communication, handicraft, high-end cabinet. elevator accessories high end furniture, stainless jug and so on, with high speed and accuracy.
Main machine's accessories

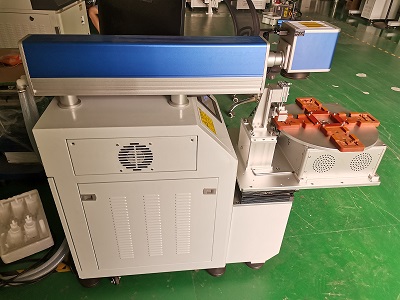

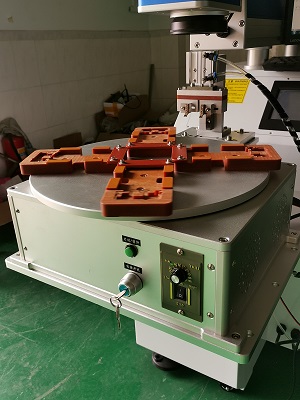

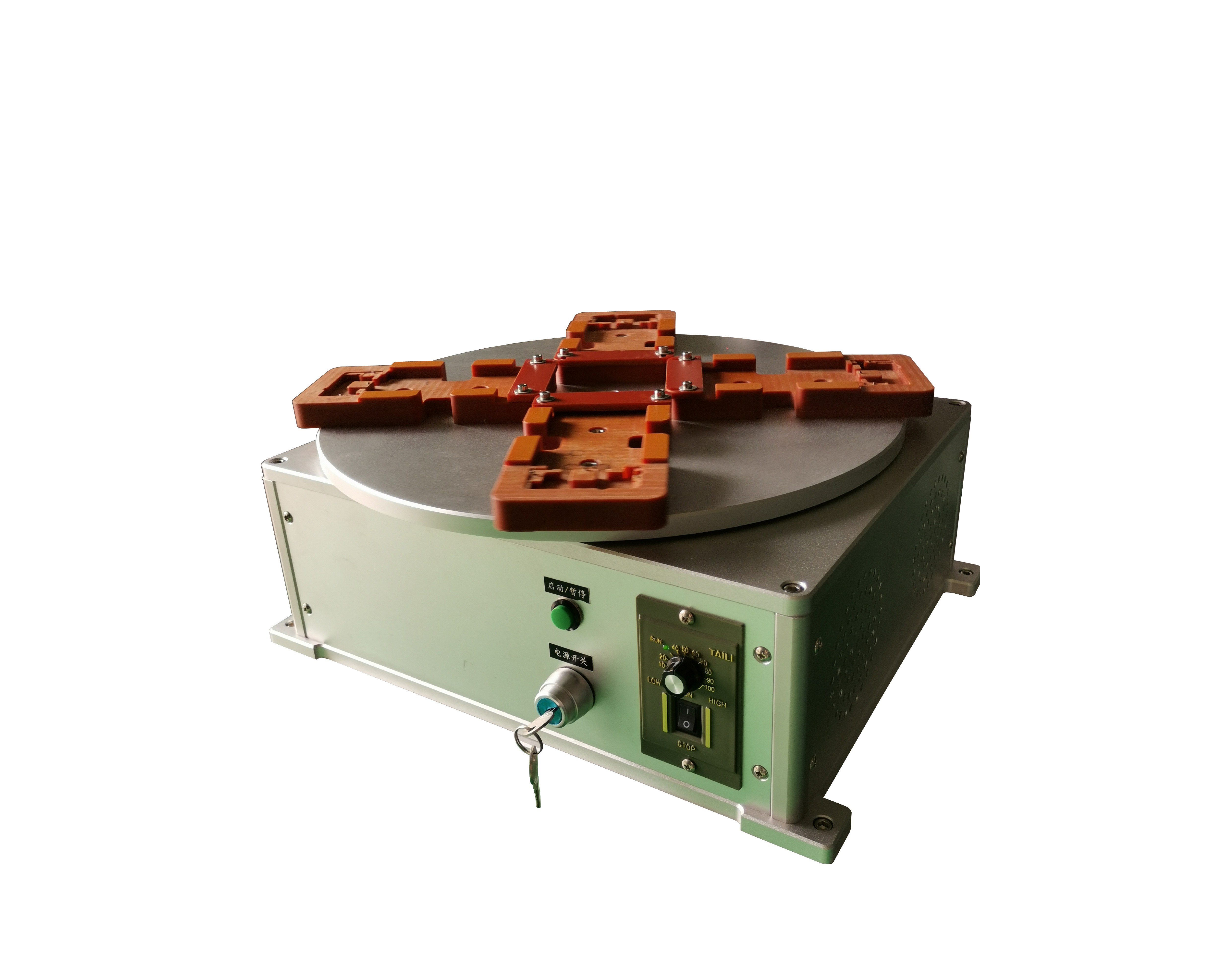

1.Multiple workstation disk rotation
Engineering design, rotating product welding, improve production efficiency, fast and convenient.
2. Computer control system
Delicated industrial computer with Intel P4 processor, anti-jamming industrial motherboard, standard industrial control vard for data transmission. Speed is nearly double compard to traditional methods.
3. Cooling system
Mandatory industrial chiller, constant cooling safe and reliable.
4. Power supply
Double layer laser power supply can be used, and the peak value of the machine can reach 220W.

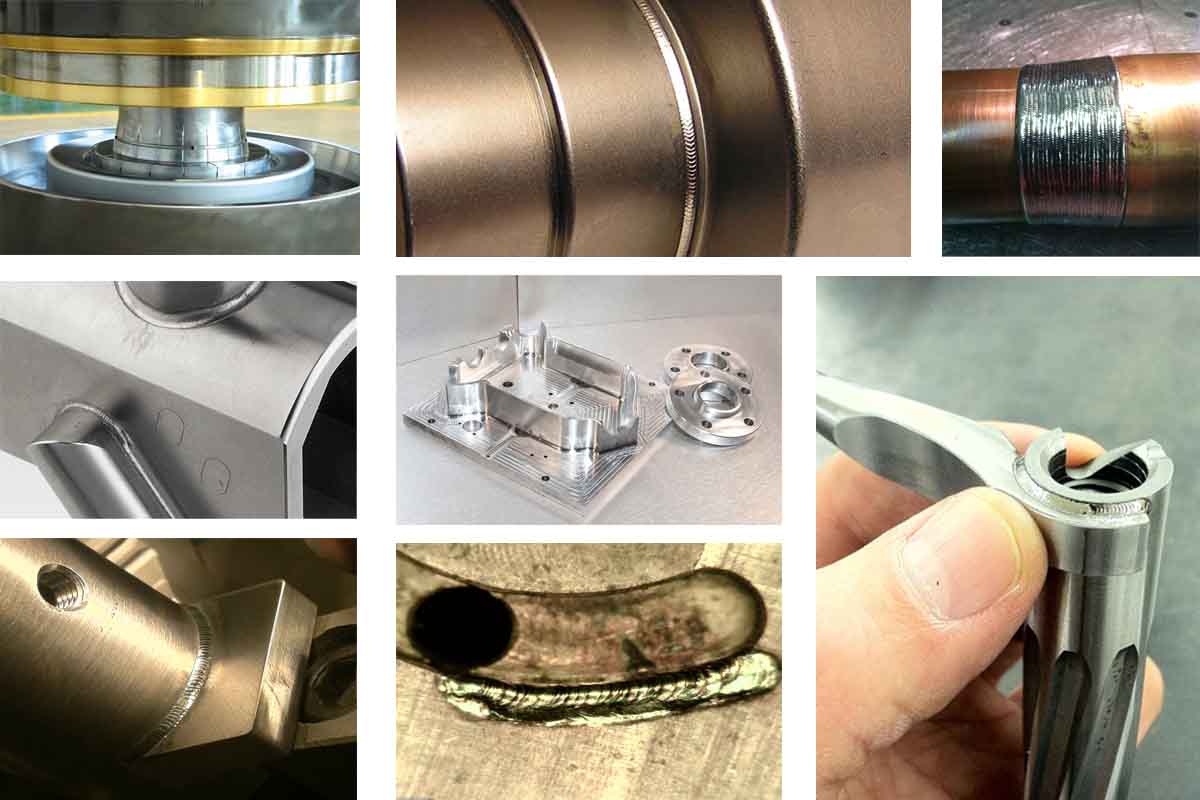

Mold welding samples
Shipment and package
Certificate
