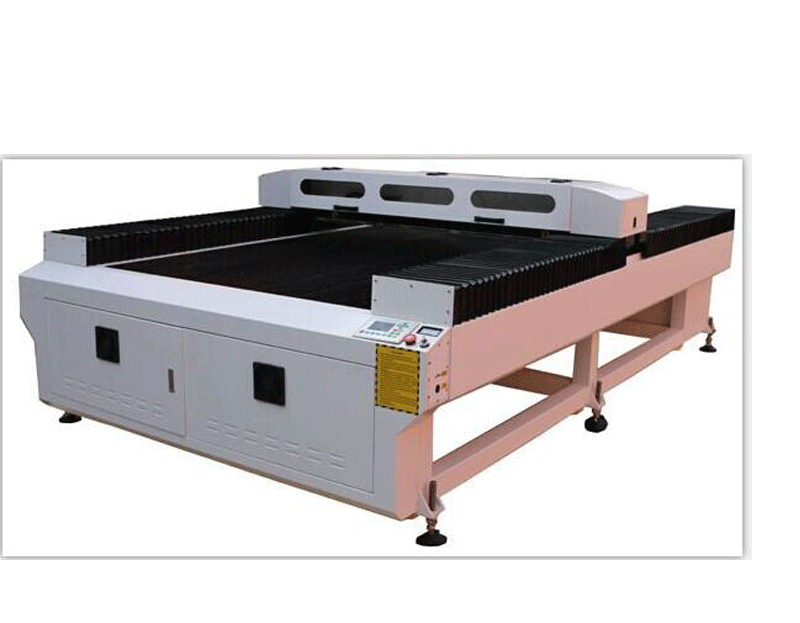

Large Size Co2 Laser Engraving and Cutting Machine

Description

Large Size Co2 Laser Engraving and Cutting Machine widely use for Acrylic, Crytal, Glass, Leather,garments, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Application

Material :Acrylic, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials,etc.

Applicable industries:

1:Advertising industry:

Double-colored board carving,Organic glass carving and cutting, label carving, crystal cup carving, Warranty signed carving.

2:Carved gifts and crafts industry:

Wood, Bamboo, Ivory, Bone, Leather,  paper.

3:Packing and printing industry:

Rubbery board, Plastic board, Double-layered board, Model cutting board.

4:Leather clothing industry:

Complex characters and pattern carving , Cutting on hypoderm, Synthetic leather ,Man-made leather , Cloth .

5,:Architectural model industry:

ABS board cutting, Model carving.

6:Production totem industry:

Appliance signs, Anti-fake commodities marking.

Machine Features

1. We are laser cutting machine manufactures,lowest price with high quality.
2. Machine can add with 60W, 80W, 100W and 150W laser tube, which can be used for engraving and cutting work.
3. Laser Tube 80W, 100W and 150W all use RECI brand--one of the best laser tube brands in this industry.
4.Machine color is optional, optional double laser heads cutting machine,redoubles the working efficiently.
5. Transmit files directly in CorelDraw, AutoCAD etc.

6. Integrate water-protection system,ensures the service life of laser tube efficiency.
7. We have CE and FDA certificate,more reliable.

Specifications:

• Laser-type : Sealed CO2 laser tube, water-cooling, 10.6um

• Laser power: 80W(other wattages available)

• Machine Power: 220VAC

• Engraving area: 1300*2400mm, 1300*3000mm(other size available)

• Max engraving speed: 0-30,000mm/min

• Max cutting speed: 0-24,000mm/min

• Laser output control: 1-100% software setting

• Location precision: less than 0.01m

• Highest scanning precision: 50-1000DPI

• Operating temperature: 0 - 45C

• Operating humidity: 5- 95% non-condensing

• Minimum shaping character: English 1x1 mm

• Driving system: Micro-step motor and amplifiers

• Cooling mode: -based chiller and water flow sensor

• Auxiliary equipment: Vacuum/Exhaust fan, air-exhaust hose, air-assist pump

• Work surface: Iron honeycomb

• Controlling software: Ruida

• Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop, ...and more

• File formats supported: JPG, BMP, PLT, DST, DXF, AI...

• Color separation: Uses color property to set function, speed, and laser power.

Standard Configuration:

Laser Cutter/Engraver, Water cooling pump and tank, Air Pump, Exhaust blower, Software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual, Communication cable, Power cable, Lenses and Laser tube (80 Watts), Machine operation Manual, USB Communication cable.

 Samples
