Precise cutting gold and silver ornament
Gold and silver are two precious metals, often used in the production of high-end jewelry and other luxury goods. To meet the demands of modern manufacturing, a gold and silver fiber laser cutting machine offers a good solution. This cutting-edge machine utilizes a high-powered fiber laser to precisely cut and shape gold and silver without causing any damage or deformation to the material. The laser beam is intense and focused, allowing for intricate and detailed cuts, which is crucial for delicate jewelry manufacturing.
Video shows:
Machhine's features:
1. It operates with a single-phase electrical connection, resulting in minimal electricity usage.
2. The software is user-friendly, even those without technical experience can effortlessly navigate the machine.
3. A room AC alone is sufficient for cooling, without the need for an external cooler.
4. This technology has the added benefit of not requiring laser and optics alignment, resulting in reduced maintenance costs.
5. Highly accurate and precise, accuracy up to 0.01mm.
6. Long lasting laser life.
7. Exceptional speed and efficiency.
Support complex cutting patterns for your jewelry designs:
● Interlocking letter combinations
● Circular monogram
● Name necklace
● Complex custom design
● Pendants and amulets
● An intricate pattern
● Custom unique parts
Parameter
Laser power | 1.5KW |
Laser wavelength | 1070~1080nm |
Working size | 600x600mm |
Cutting thickness | 1~3mm brass,aluminum, 1~2mm gold,silver |
Photoelectric conversion efficiency | 25-30% |
Cutting accuracy | ±0.1mm |
Max Moving speed | 80000mm/min |
Max loading weight | 600kg |
Machine weight | 2000kg |
Laser life | 100,000hrs |
Cooling mode | Water-cooled |
X axis travel | 600mm |
Y axis travel | 600mm |
Z axis travel | 60mm |
X Y Z axis positioning accuracy | ± 0.02mm |
X Y axis max position speed | 36m/min |
X Y axis max acceleration | 0.8G |
Installed capacity | 8 KVA |
Rated power voltage | 220V 50-60Hz |
Supported format | PLT.DXF.DWG.AI |
Suggested selling price | 75,000USD |
Introduction of main accessories:

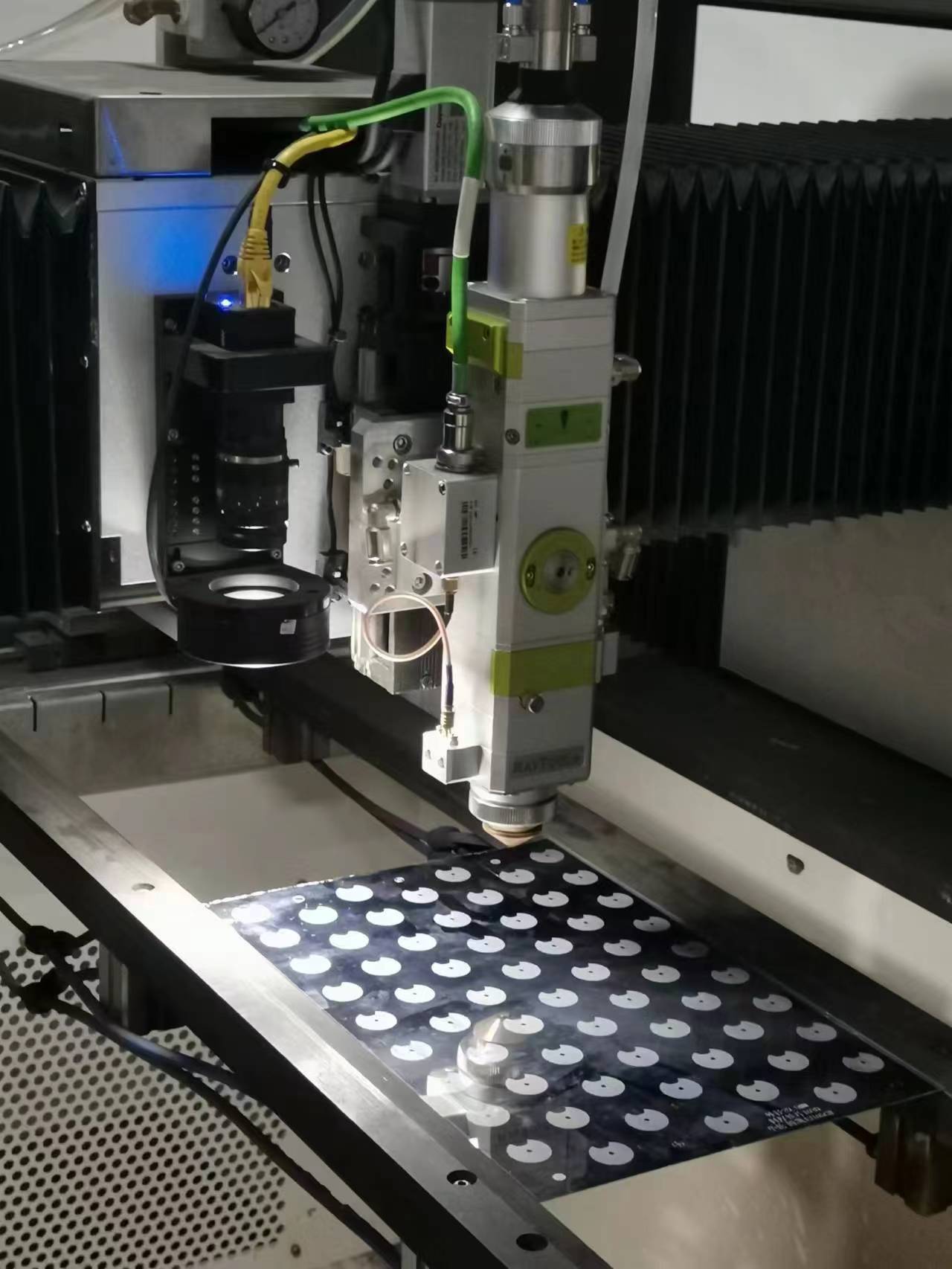

1. Laser cutting head: Imported fiber laser cutting head with dynamic auto focus, keep same distance according to metal plate and cutting.

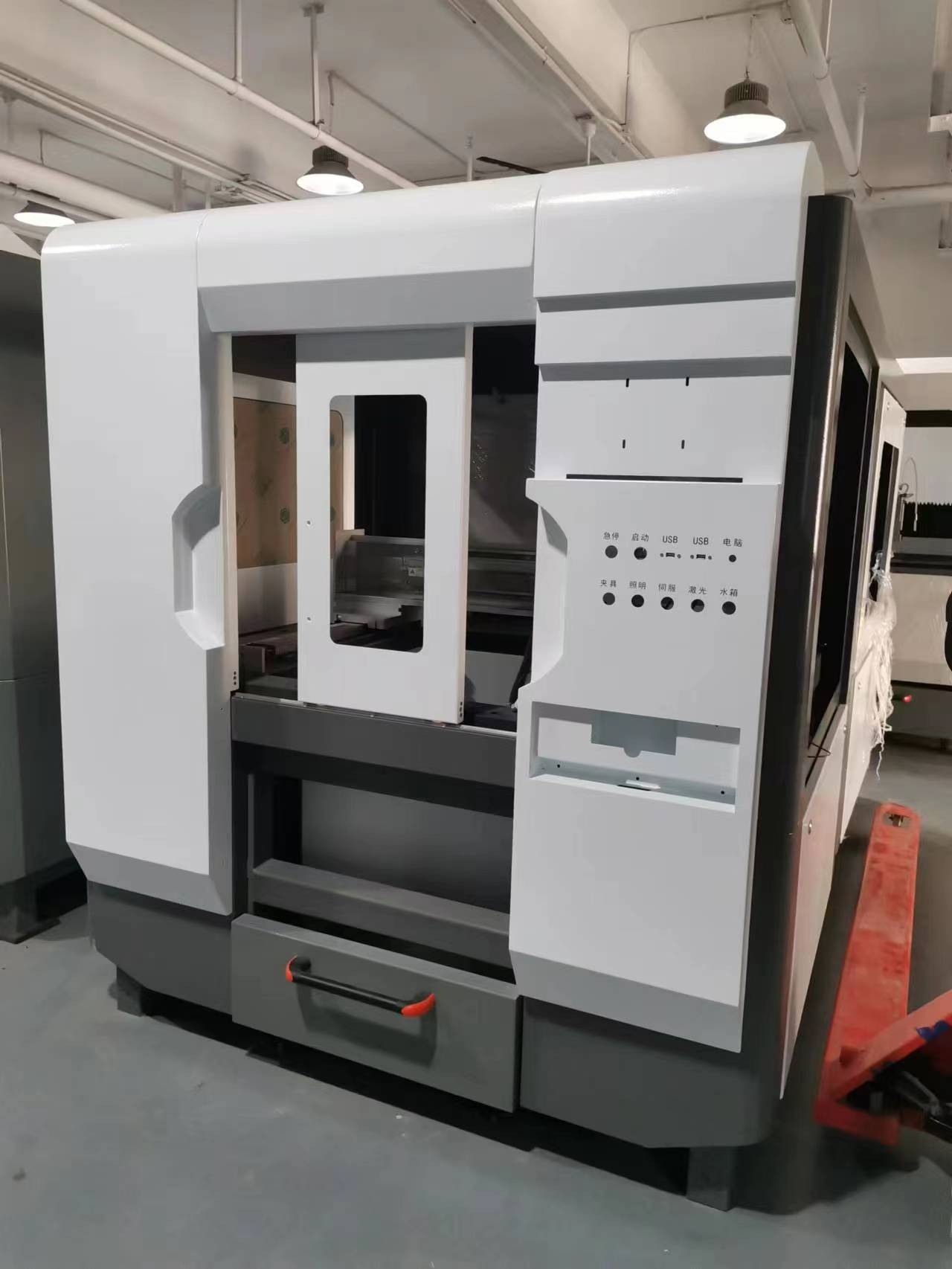

2. Working platform: Drawers under the work platform. The metal is then sliced and the small pieces fall into the lower drawer for easier collection.
3. Cutting inspection window: Green glass window can filter the laser beam, no eye injury, no smell. Environmentally friendly and beautiful.
4. PC control system: personalized independent PC control system, PC screen can be rotated 180 degrees.

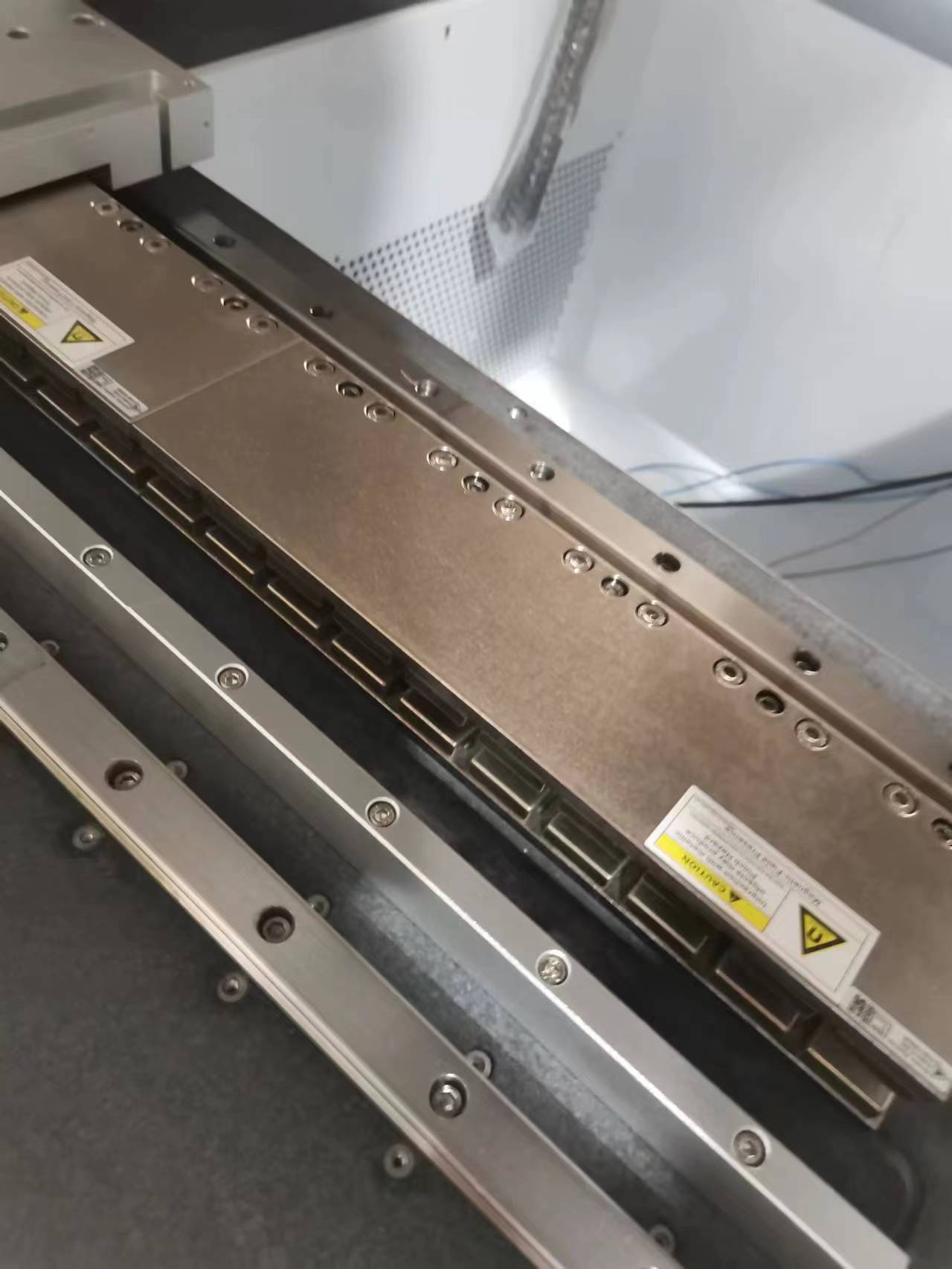

5. Imported servo motor and drive system : extremely accurate positioning; Make the mobile positioning mechanism run smoothly; Reliable and maintenance-free.

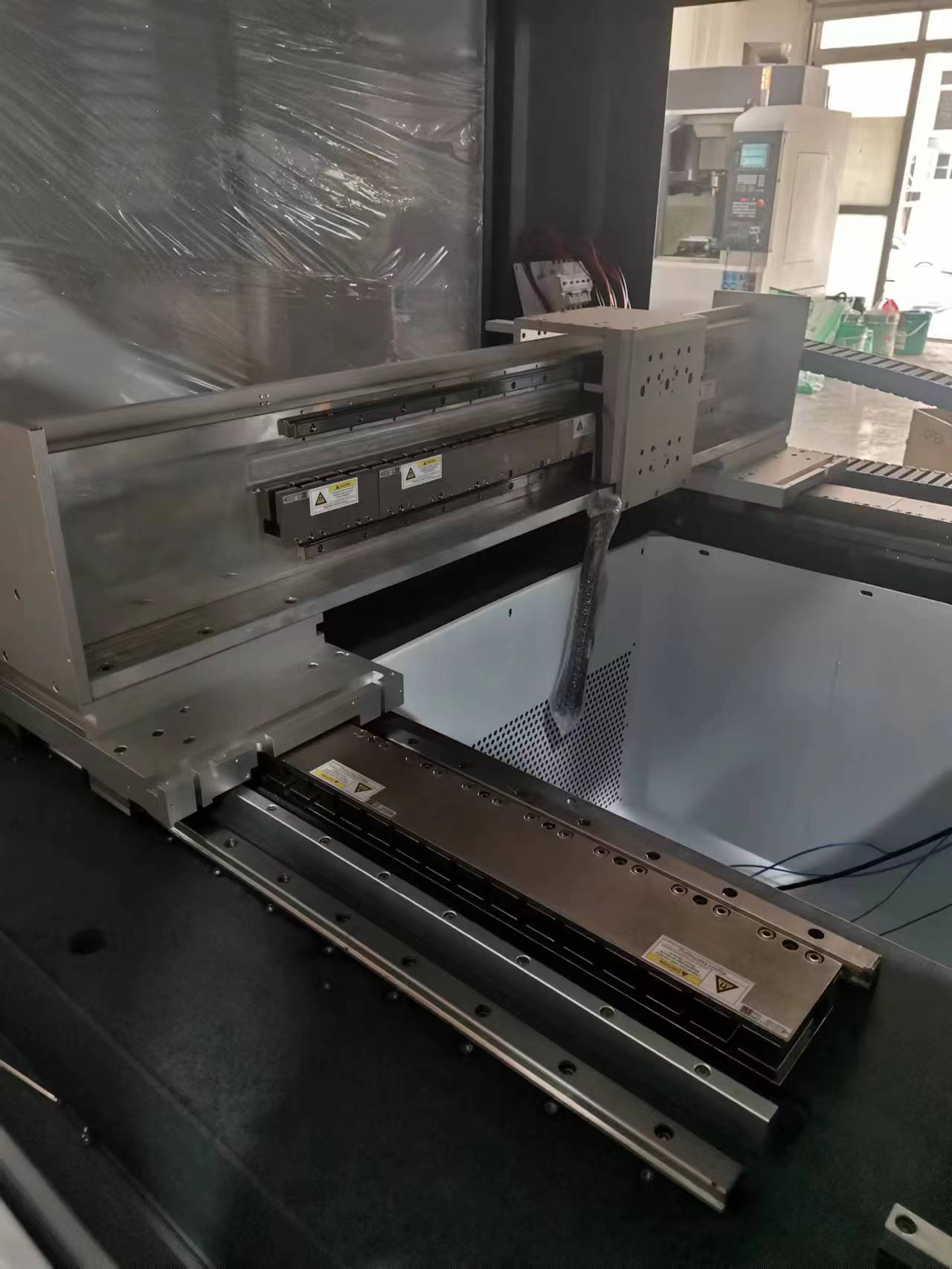

6. Double rack: Adopts double drive rack transmission system to ensure cutting accuracy and speed.
7. Control system: CNC studio control system, with powerful editing function, can meet a wide range of cutting needs.
Customer's feedback

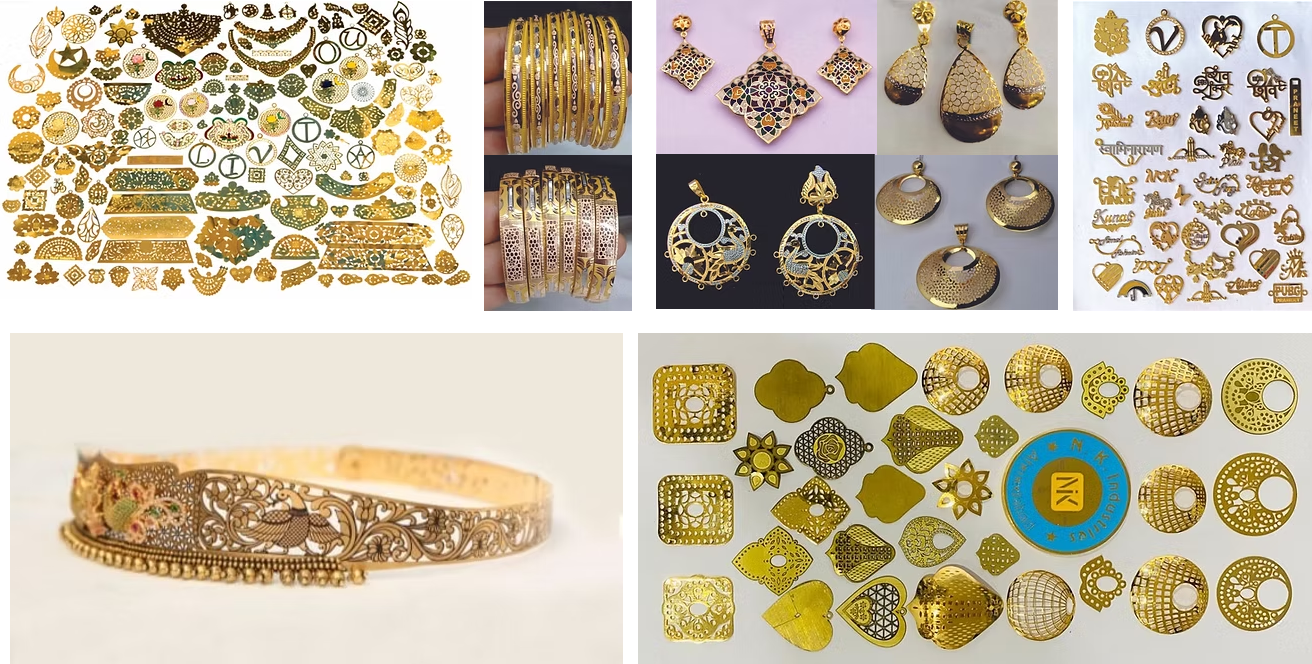

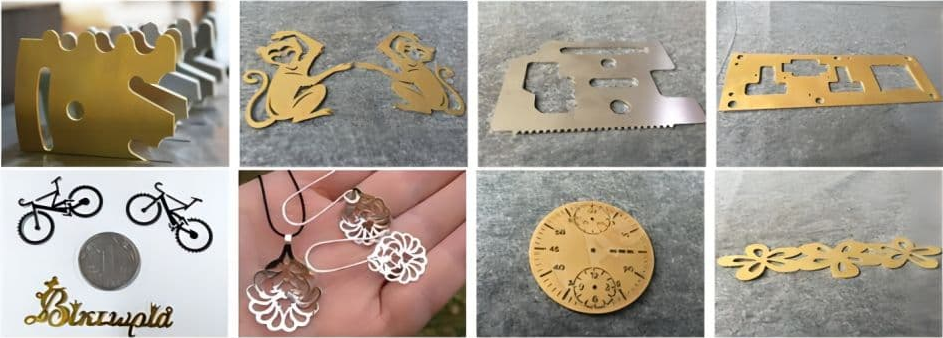

Samples displays:

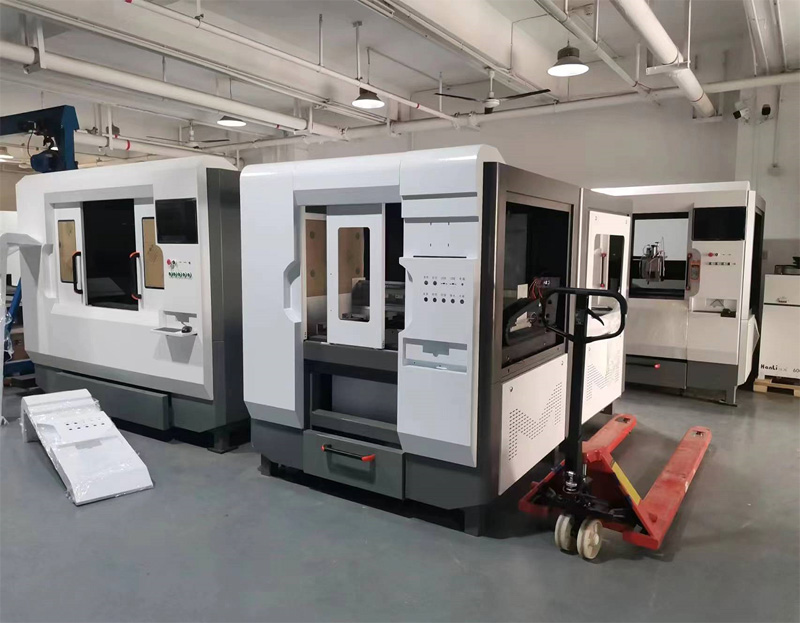

Shipment daily
Certificate can be offered
Our service
1. Professional team
DOTSLASER is a professional industrial laser equipment supplier, committed to research and development, production and testing in one. Our team has over 10 years of experience in the field of laser equipment production.
2. Free technical training
If you don't know how to use this machine, as long as you come to China, we will provide you with free training until you how to use this machine. If you are busy, our engineers can go to your country. You only need to pay for some expenses, such as airfare, hotel and meals.
3. Other services:
* 24-hour online service;
* We have our own factory;
* Free sample testing and free parts;
* Good packing and fast delivery time;
* One-year warranty, lifetime service;
* Engineers who can serve overseas machinery;
* Training on how to install and use machines and software.
