355nm uv laser marking machine

wavelength: 355nm wavelength, more fine and clear marking and less burning and hurt on materials. Perfect marking result.

Product Details

355nm UV Laser Marking Machine


355nm uv laser marking machine


Applications:

UV marking machine is suitable for fine processing market, laser marking machine, car lamp laser marking machine, car glass laser marking machine, car window laser marking machine, mobile phone laser marking machine, charger laser marking machine , laser coding machine for medicines, laser engraving marking machine for cosmetic boxes, surface marking machine for packaging bottles of polymer materials, laser marking machine for flexible pcb boards, laser scribing and cutting machine, microporous laser marking machine for silicon wafers , Blind hole laser processing, LCD liquid crystal glass two-dimensional code laser marking machine, glassware surface UV marking machine, metal surface coating laser marking machine, plastic button laser coding inkjet printer, electronic component laser inkjet inkjet plotter, Laser cutting plotter for gift packaging, laser coding machine for communication equipment, lettering and marking machine for building materials, etc.


Advantages of UV Laser Marking Machine.

1. The heat-affected area is extremely small to avoid deformation, damage or burning of the processed material, and the yield is high.

2. It is suitable for a wide range of materials, making up for the defects of poor processing effect of infrared laser marking widely used at present.

3. High photoelectric conversion rate, 355nm output wavelength, beautiful engraving effect, good touch feeling and high anti-counterfeiting effect.

4. The products are widely used in micro-processing, fine engraving of various metal and non-metal materials.


Parameters

ModelDS-UV3,DS-UV5,DS-UV10,DS-UV15
Laser power3W,5W,10W,15W
Laser wavelength355nm
Beam quality
<1.2㎡
Repeat frequency
1~200KHZ
Marking line speed
9000mm/s
Marking range100x100mm,150x150mm,175x175mm,200x200mm,300x300mm
Minumin line width
0.05mm
Minimum characters0.2mm
Power supply110V/220V,50/60Hz

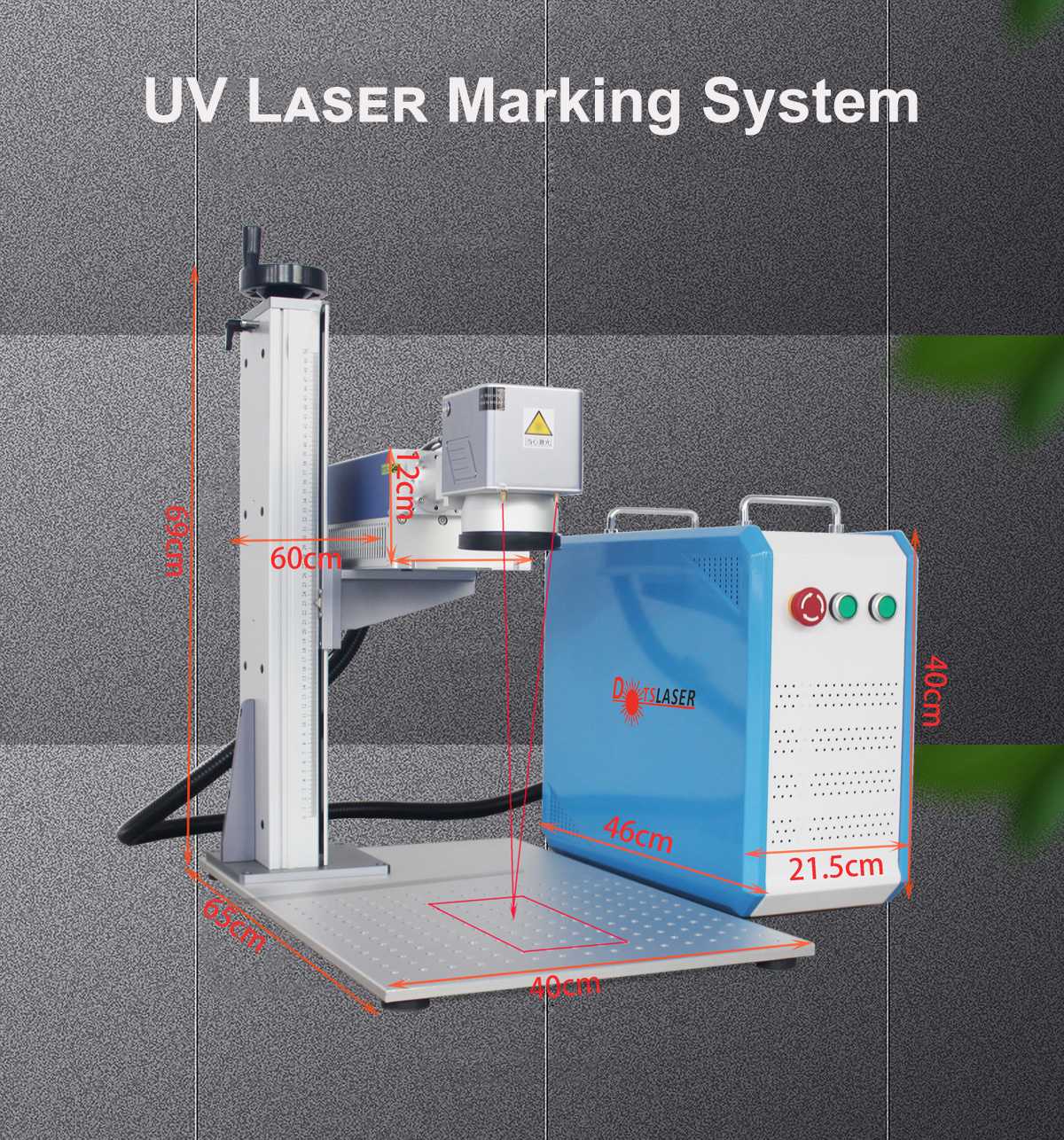

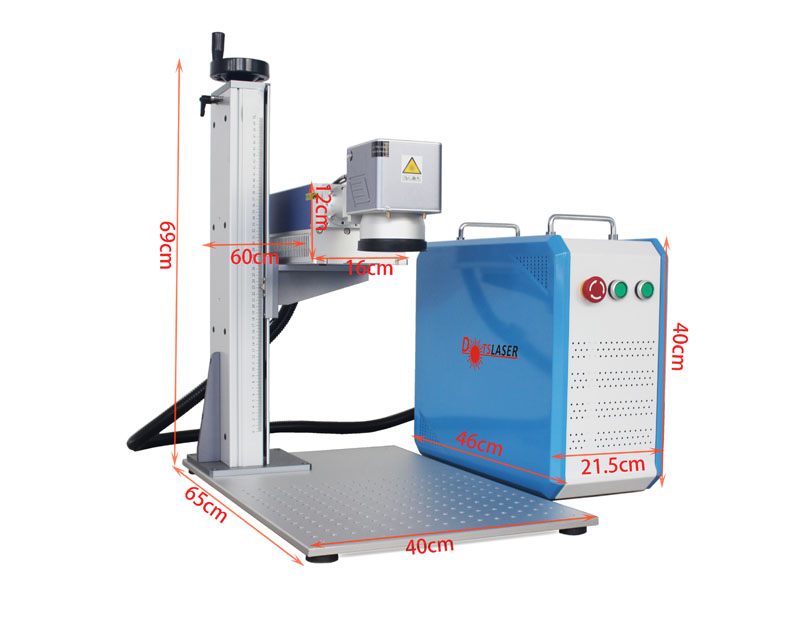

DimensionPower box: 460x215x400mm, Stand: 650x400x690mm


Sample show.

355nm uv laser marking machine


Video show

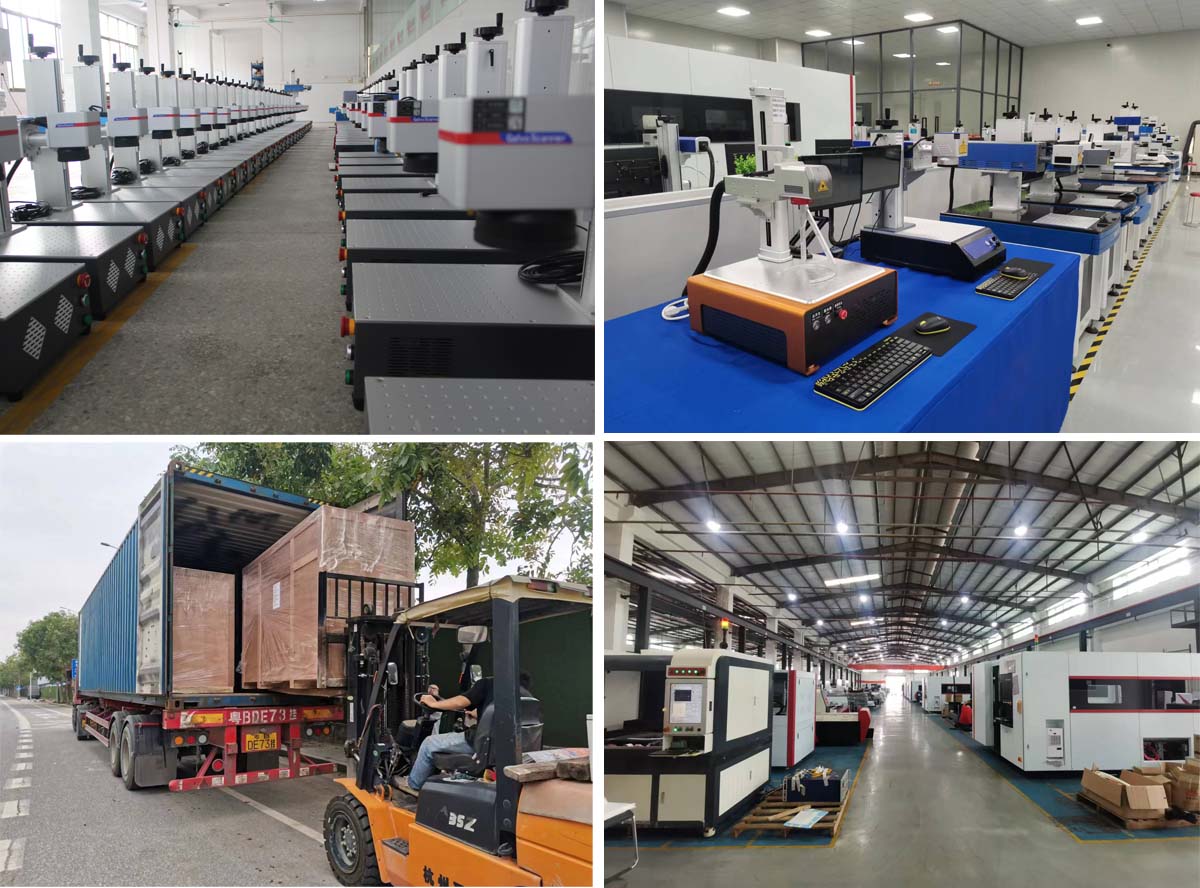

Workshop show

355nm uv laser marking machine
