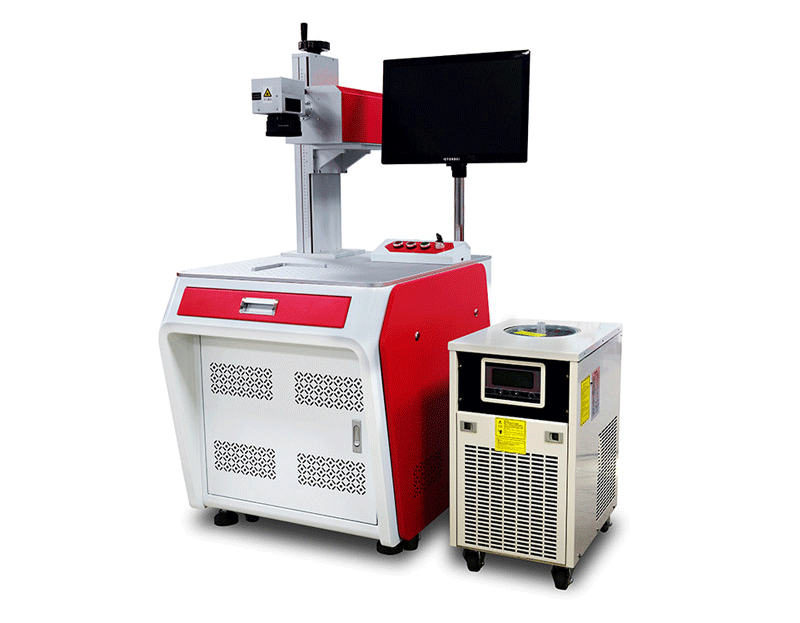

UV KN95 masks engraving machine
Dotslaser UV laser engraving machine use for many different kind of area , recently the application of KN95 mask engraving is widely used ;Attach with fast Dotslaser galvo head and stable longer life laser source ,which make engraving job simple and easy ;Why we use UV laser engraving on mask ? 1:UV laser is easy to attach on line system 2:UV laser engraving quality is the best and cannot be removed 3:UV laser machine almost no maintenance
Product Features
1.High speed with galvanometer, stable,high precise.
2.Small valume,light weight.
3.Low power consumption: less than 800w.
4.Completely Water cooling ,low energy.
5.No influence of the sevete environment and temperature change.
6.Compatible with common image processing functions.
7.Feature-rich software designNet Power.
8.Stability and reliability of light path system and control system.
9.High cost-effective.
10.Easy to maintenance.
MACHINE APPLICATION SCOPE AND MATERIIALS
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
Parameter:
| Code | Parts | Spec |
| 1 | Laser source | Optowave,PI,RFH,INNGU |
| 2 | Laser power | 3W/5W/8W/10W/15W |
| 3 | Scan head | 10mm aperture |
| 4 | Working area | 100x100mm~300x300mm |
| 5 | Control card | JCZ |
| 6 | Control program | Ezcad |
| 7 | wavelength | 355nm |
| 8 | Beam quality(㎡) | <0.8 |
| 9 | Marking speed | ≤10,000mm/s |
| 10 | Graphic format | PLT,DWG,DXF,BMP,JPG |
| 11 | Cooling | Air cooling/water cooling |
| 12 | Min.line width | 0.01mm |
| 13 | Repeat precision | ±0.001mm |
| 14 | Applicable format | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
| 15 | Operating temp | 10~35℃ |
| 16 | Warranty | One year |
