UV laser marker for marking bottles
Why use UV laser?
UV laser marking machine has shorter wavelength, which hurt the material very less, so the marking quality is better than fiber and CO2 laser.

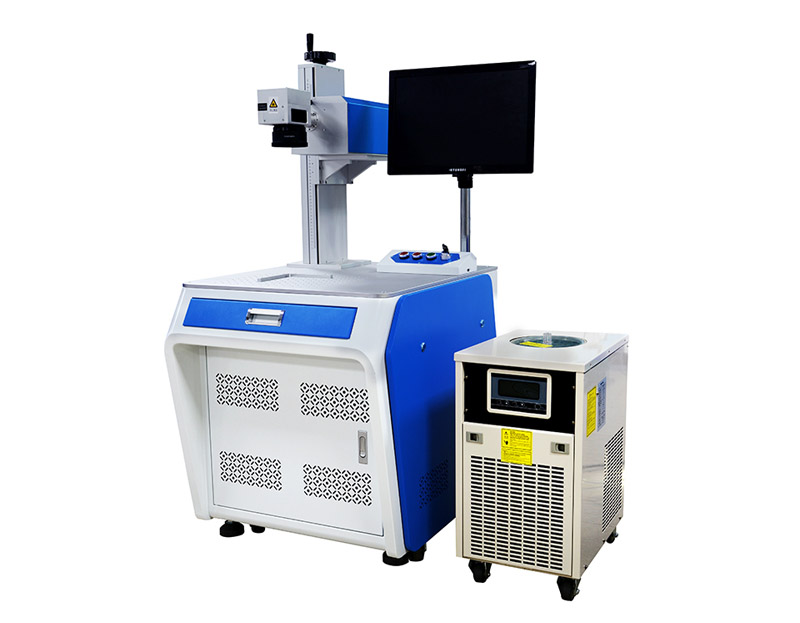

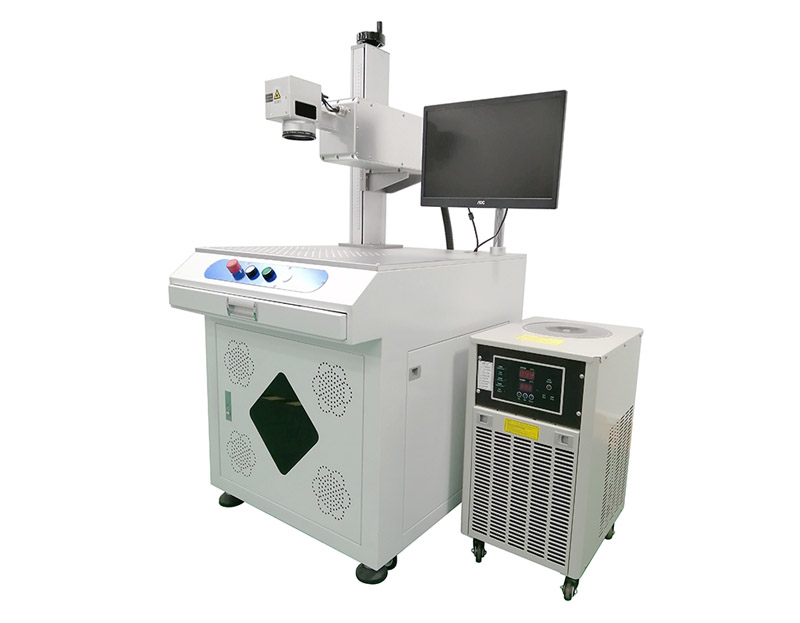

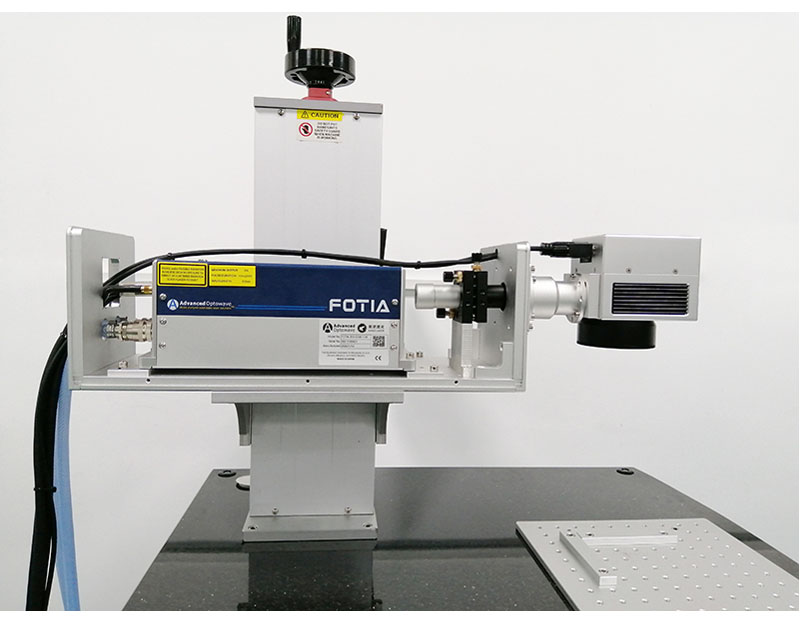

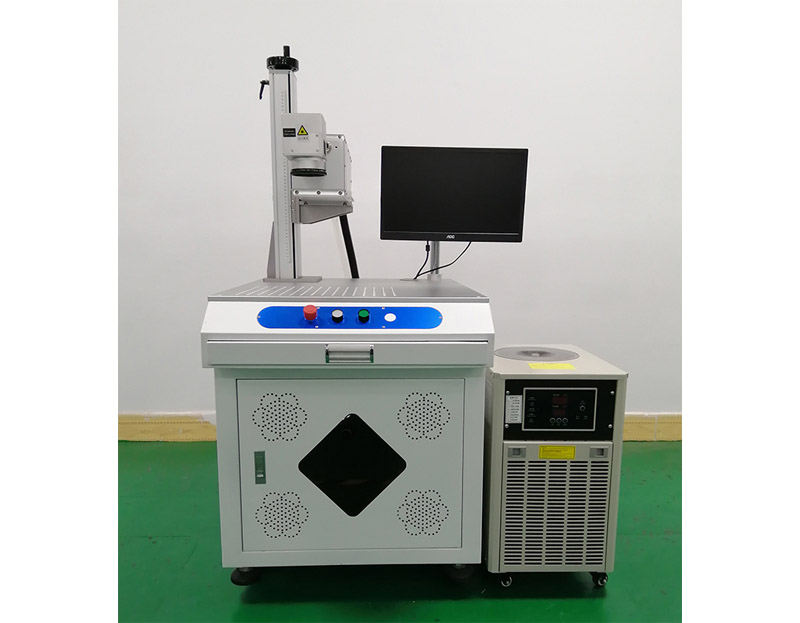

Machine Photo.
MACHINE APPLICATION SCOPE AND MATERIIALS
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
Product Features
High speed with galvanometer, stable,high precise.
Small valume,light weight.
Low power consumption: less than 800w.
Completely Water cooling ,low energy.
No influence of the sevete environment and temperature change.
Compatible with common image processing functions.
Feature-rich software designNet Power.
Stability and reliability of light path system and control system.
High cost-effective.
Easy to maintenance.
Datesheet:
| Code | Parts | Spec |
| 1 | Laser source | Optowave,PI,RFH,INNGU |
| 2 | Laser power | 3W/5W/8W/10W/15W |
| 3 | Scan head | 10mm aperture |
| 4 | Working area | 100x100mm~300x300mm |
| 5 | Control card | JCZ |
| 6 | Control program | Ezcad |
| 7 | wavelength | 355nm |
| 8 | Beam quality(㎡) | <0.8 |
| 9 | Marking speed | ≤10,000mm/s |
| 10 | Graphic format | PLT,DWG,DXF,BMP,JPG |
| 11 | Cooling | Air cooling/water cooling |
| 12 | Min.line width | 0.01mm |
| 13 | Repeat precision | ±0.001mm |
| 14 | Applicable format | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
| 15 | Operating temp | 10~35℃ |
| 16 | Warranty | One year |

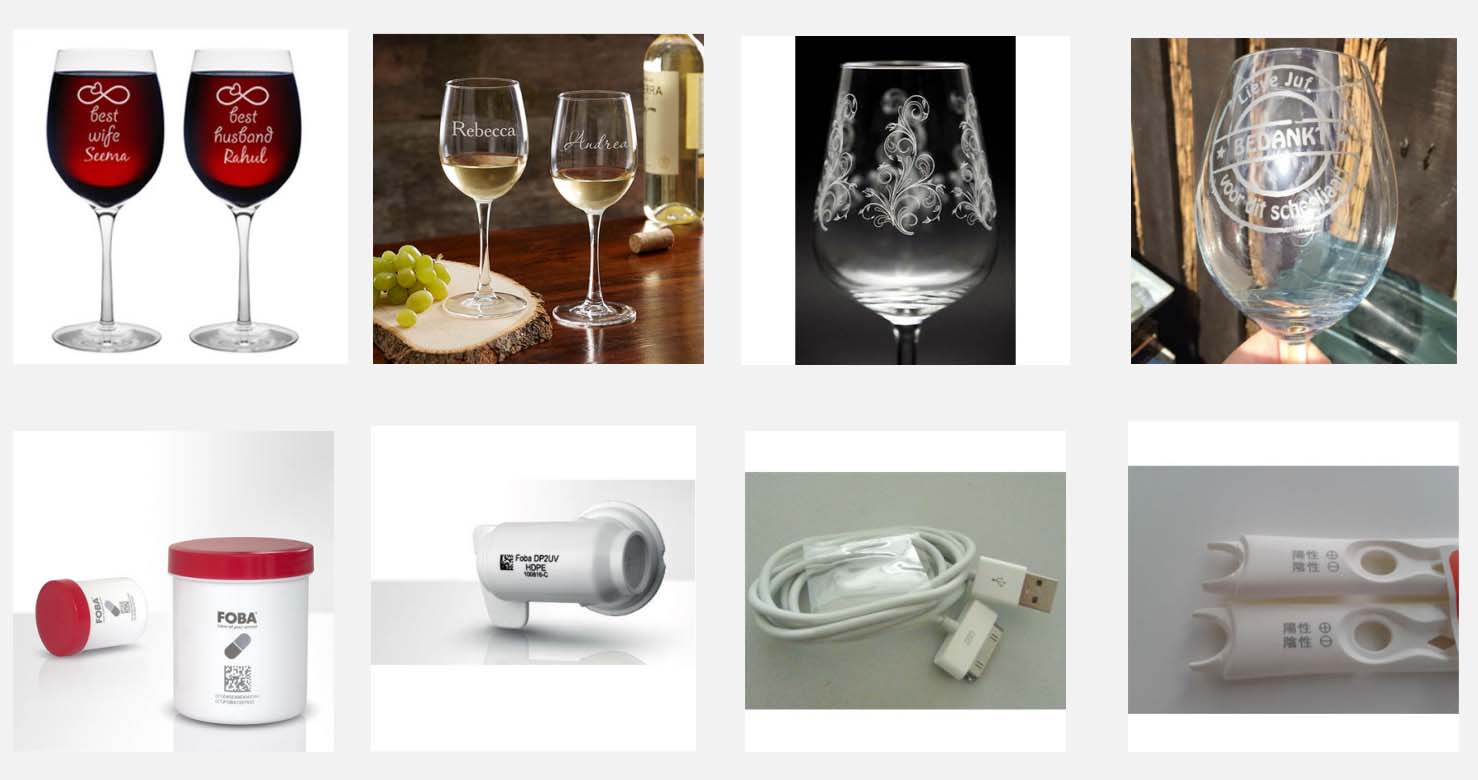

Samples:
Certificate:
